Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

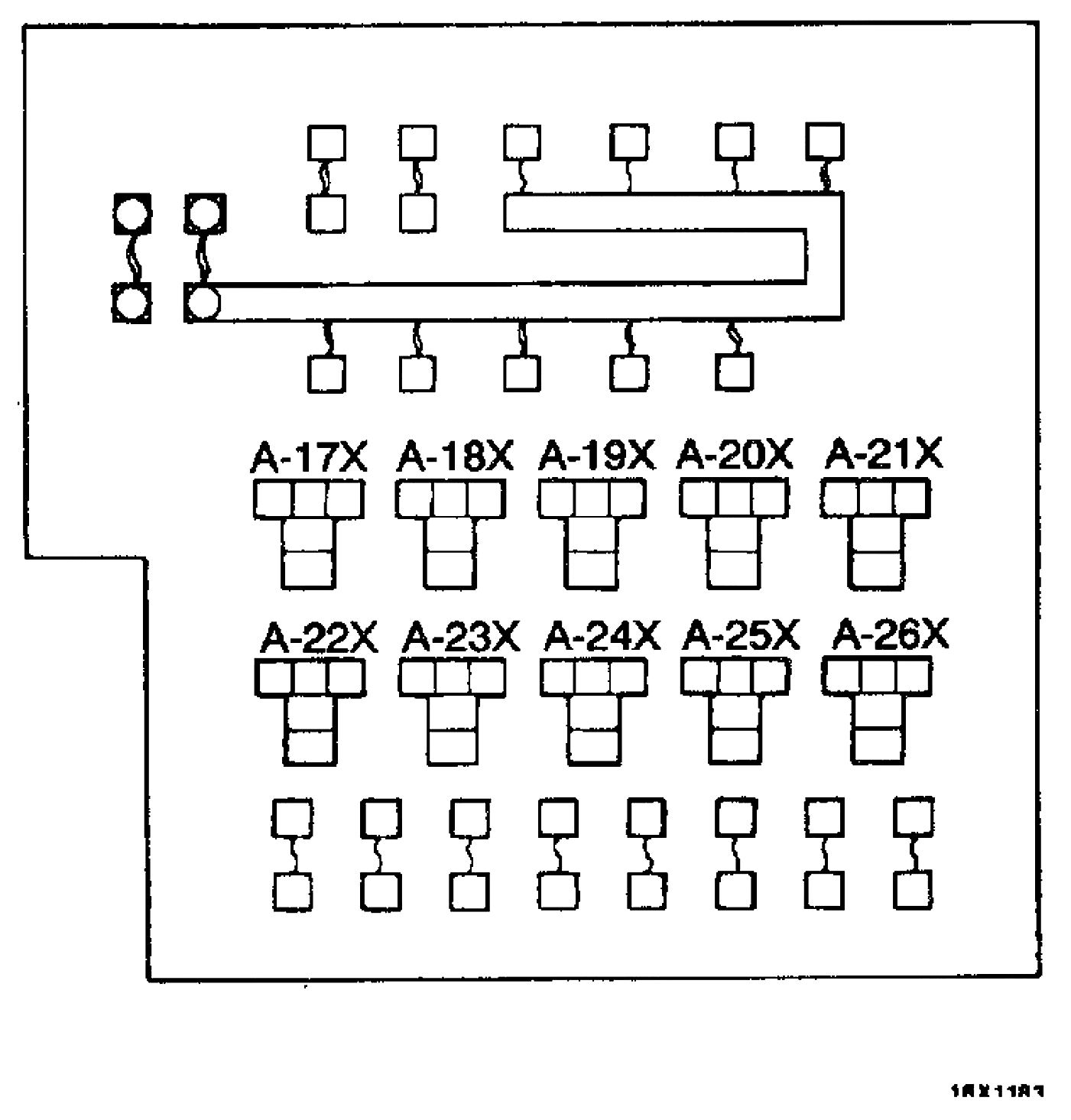

Relay Box In Engine Compartment
Relay Box In Engine Compartment

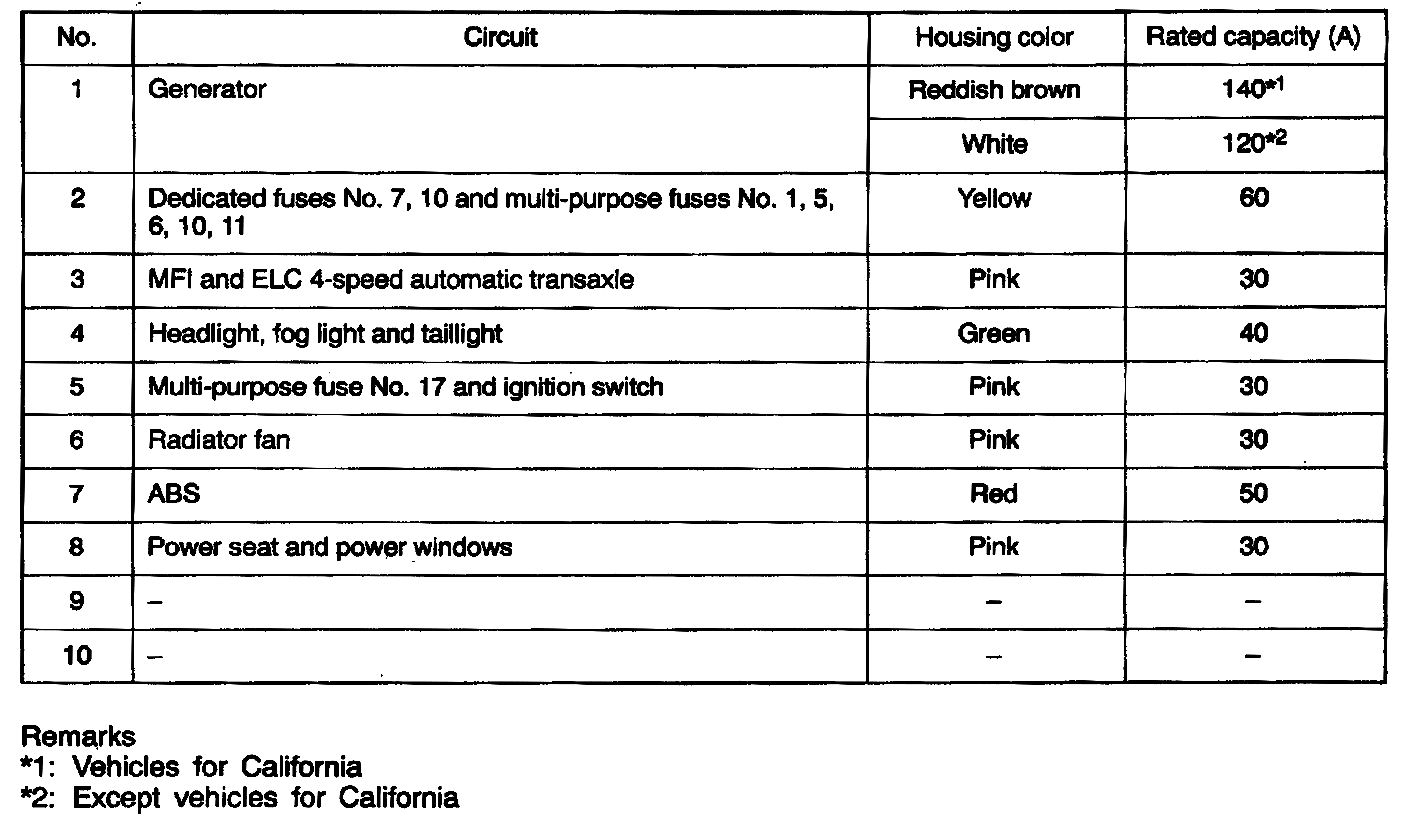

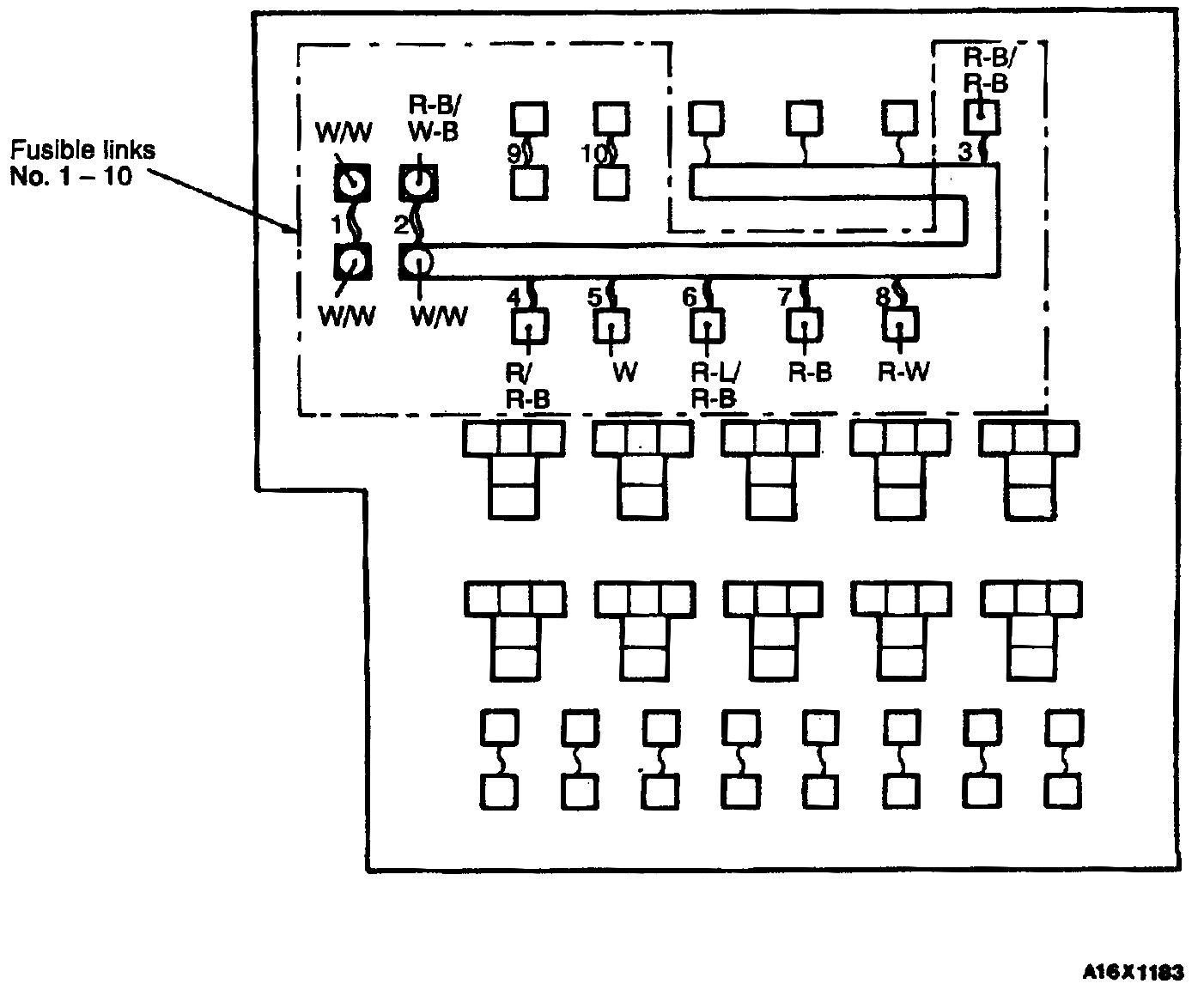

Fusible Links

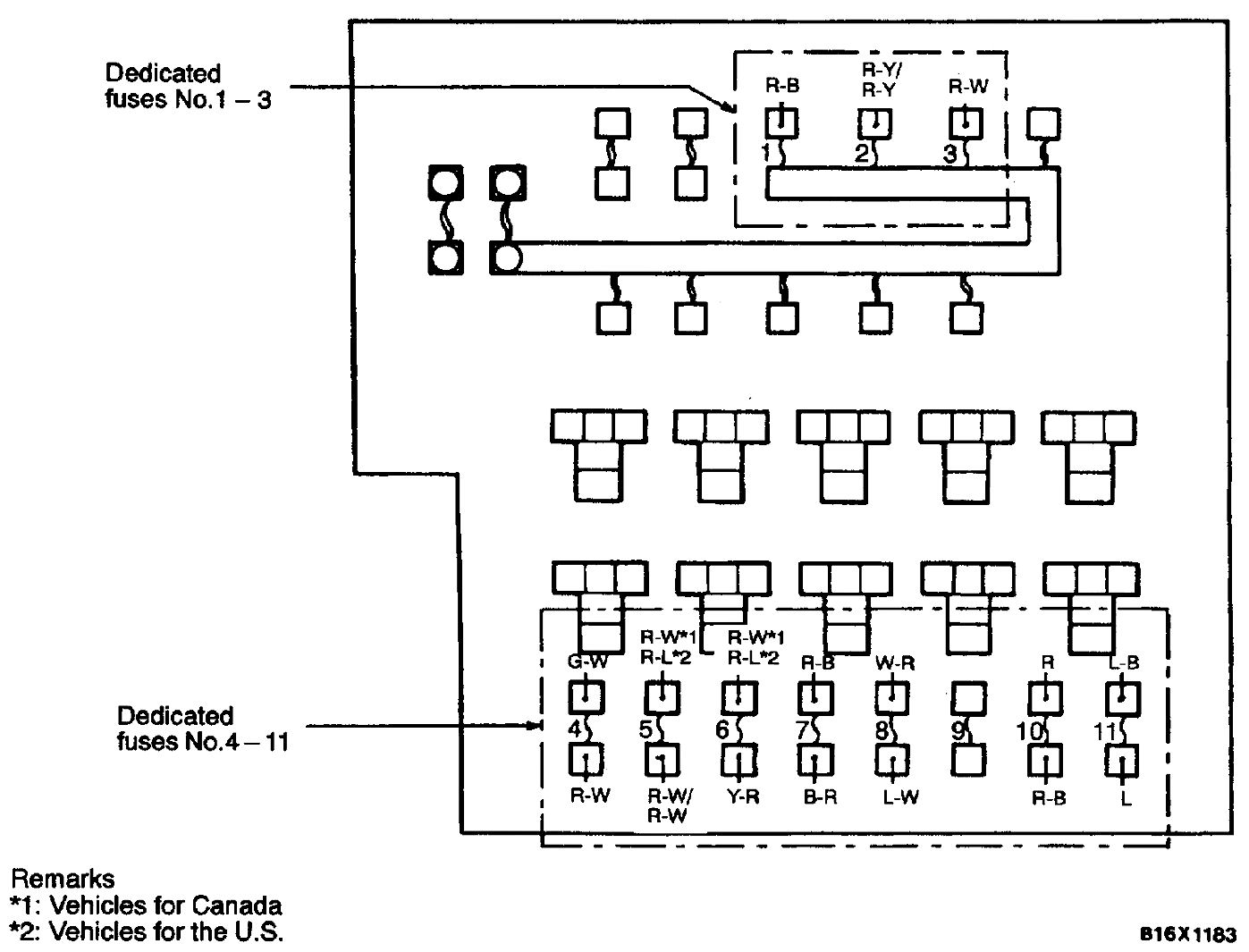

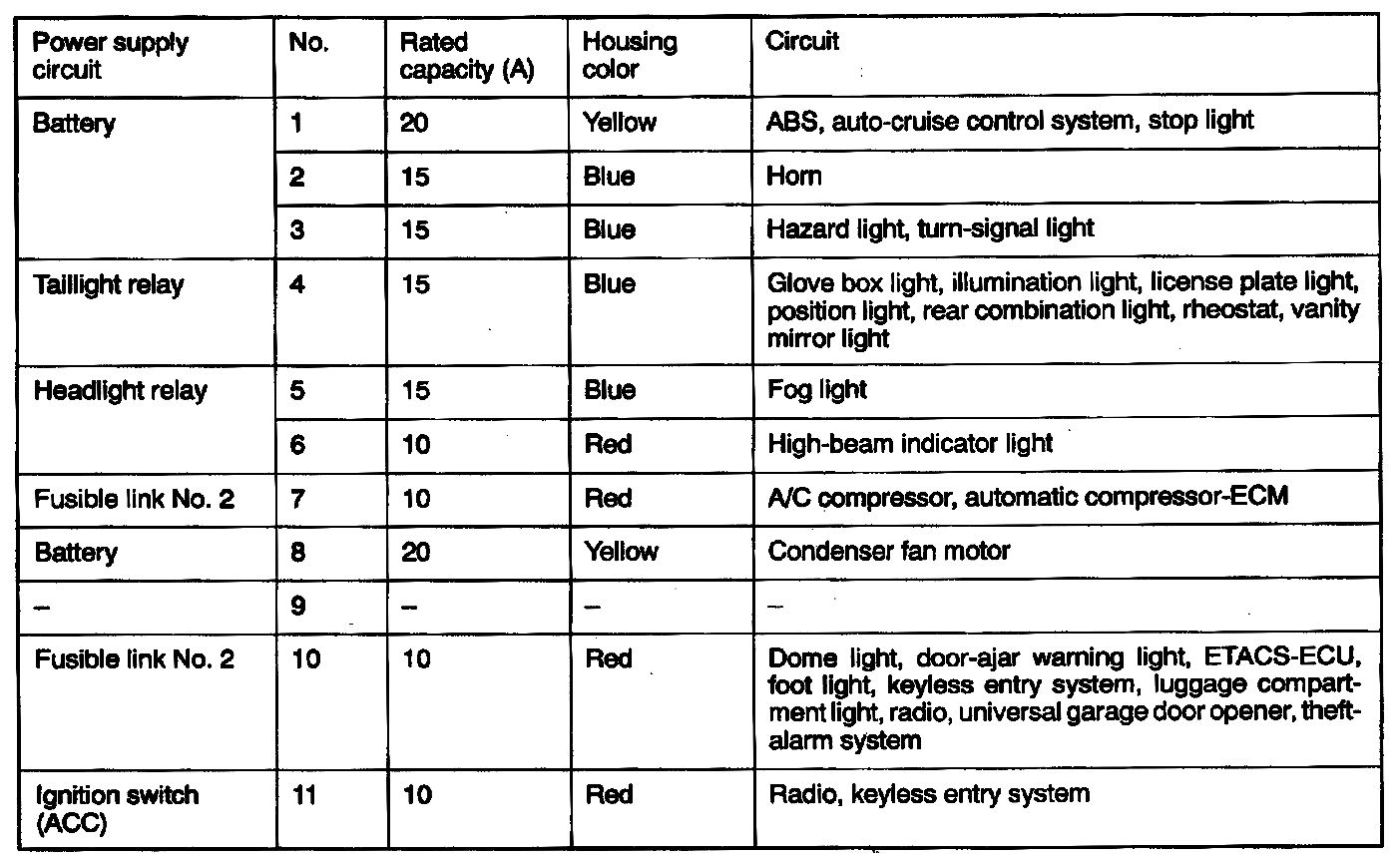

Dedicated Fuse

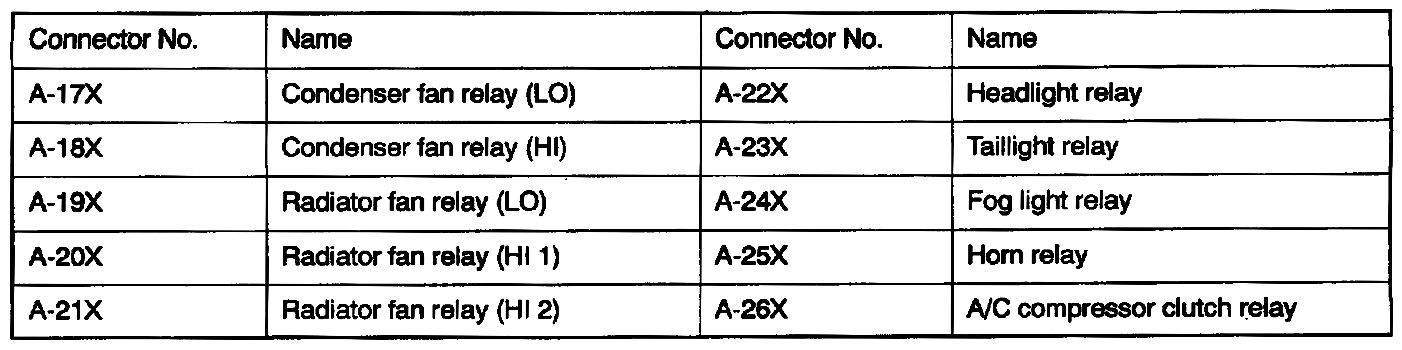

Centralized Relay
