How to Read Configuration Diagrams

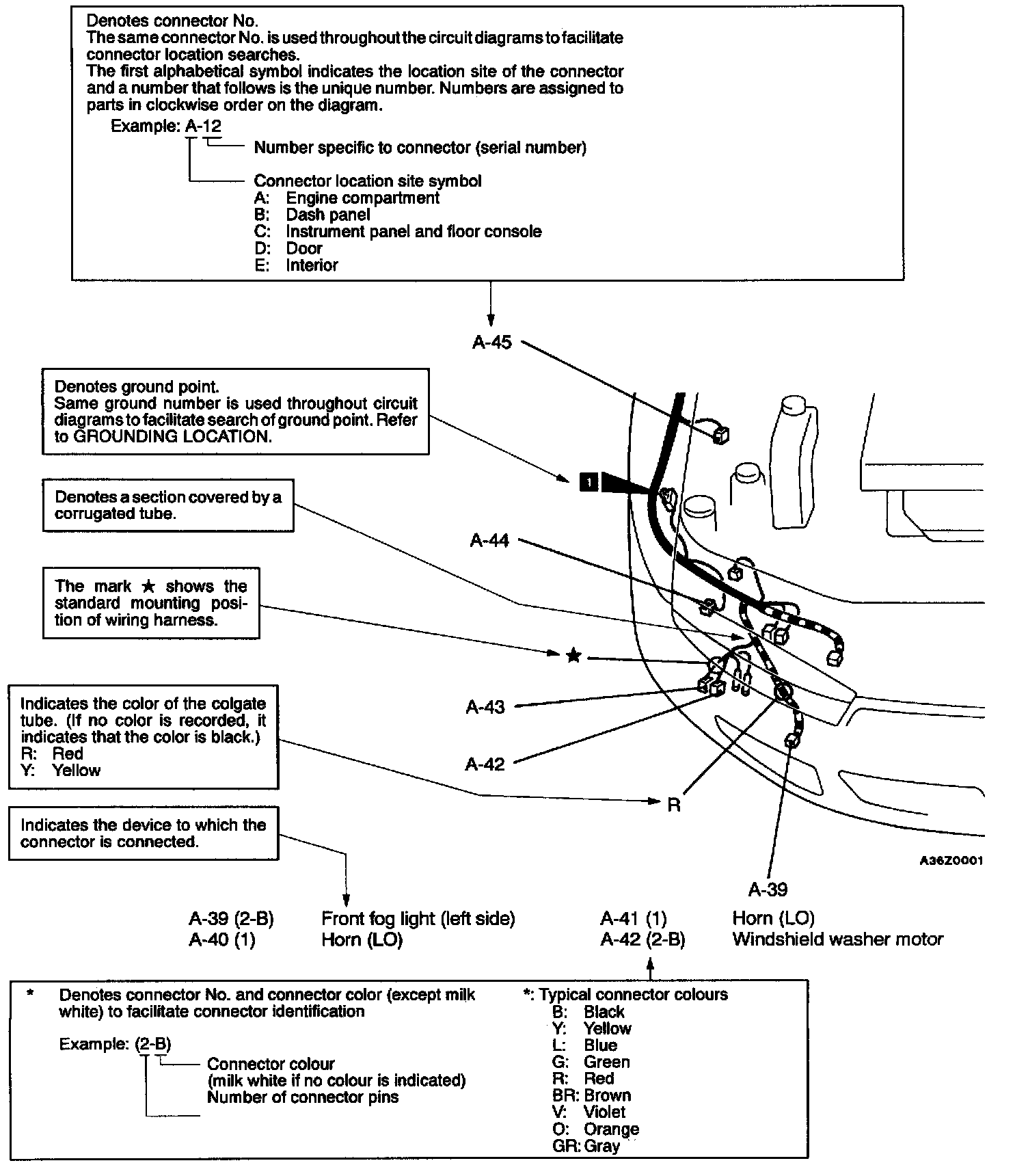

The wiring harness diagram clearly shows the connector locations and harness routings at each site on actual vehicles.
