System Specifications

SPECIFICATIONS

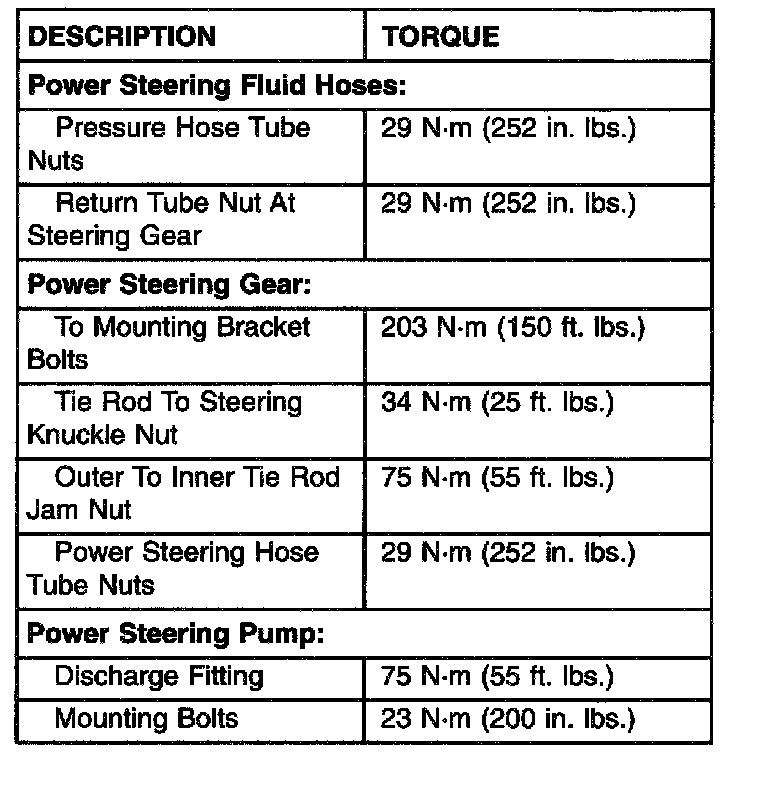

SPECIFICATIONS - POWER STEERING FASTENER TORQUE

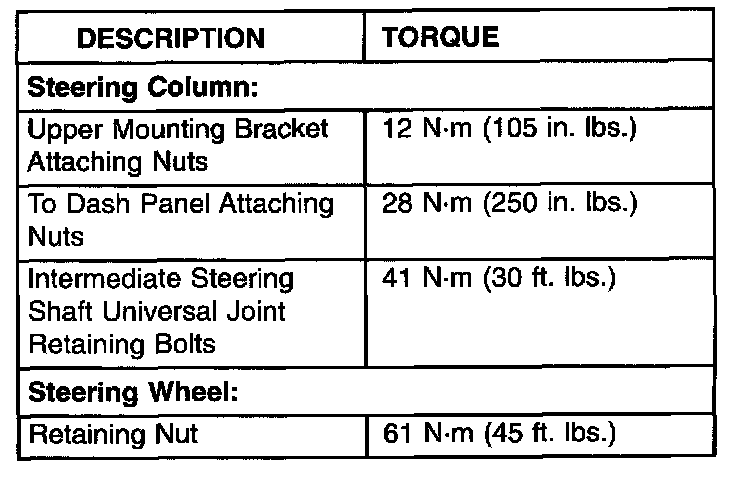

SPECIFICATIONS - STEERING COLUMN

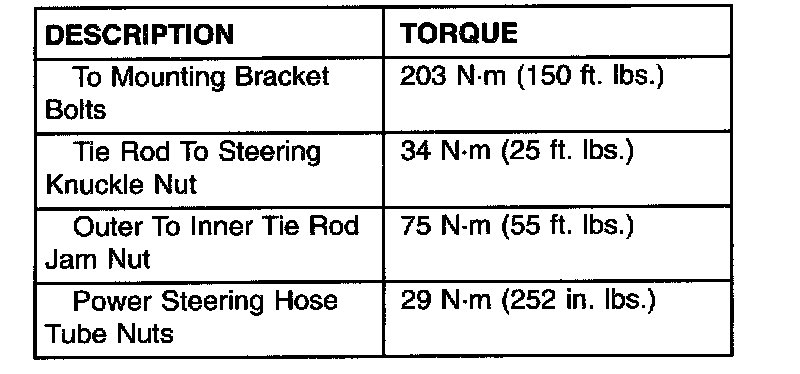

SPECIFICATIONS - POWER STEERING GEAR FASTENER TORQUE

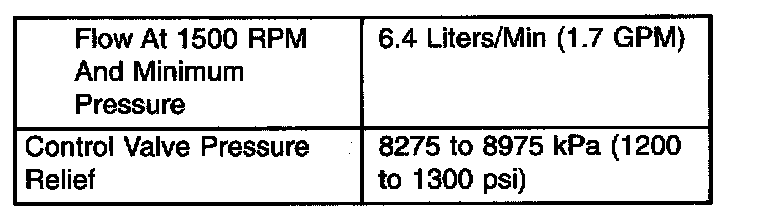

SPECIFICATIONS - POWER STEERING PUMP FLOW

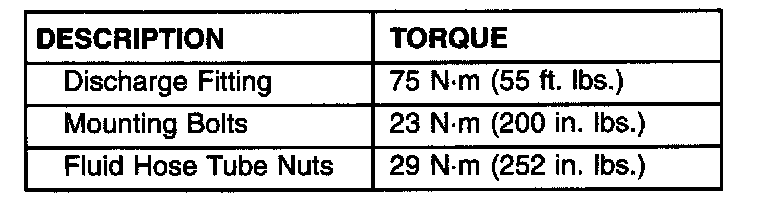

SPECIFICATIONS - POWER STEERING PUMP FASTENER TORQUE
