Drive Belt: Adjustments

Use belt tension gauge, Special Tool 7198 for conventional V-belts and Poly-V belts.


Adjust the belt tension for NEW or USED belt tension applications.

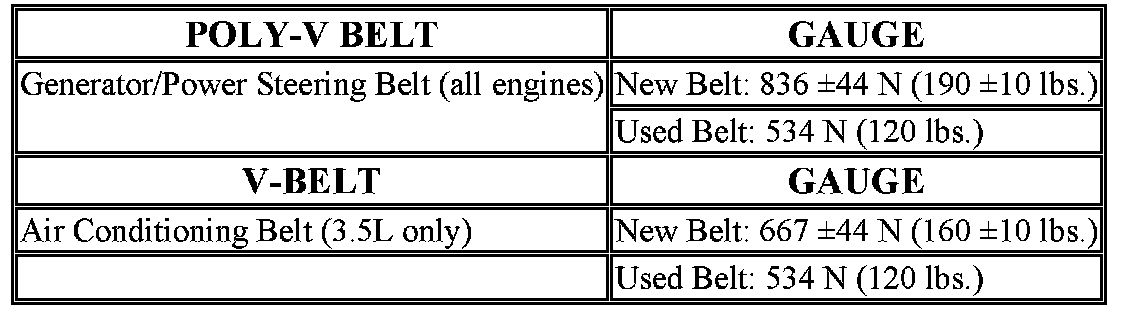

BELT TENSION CHART-2.7/3.5L ENGINES
