Turn Signal Lamp
Turn Signal Lamp
Left Park/Turn Signal Lamp:

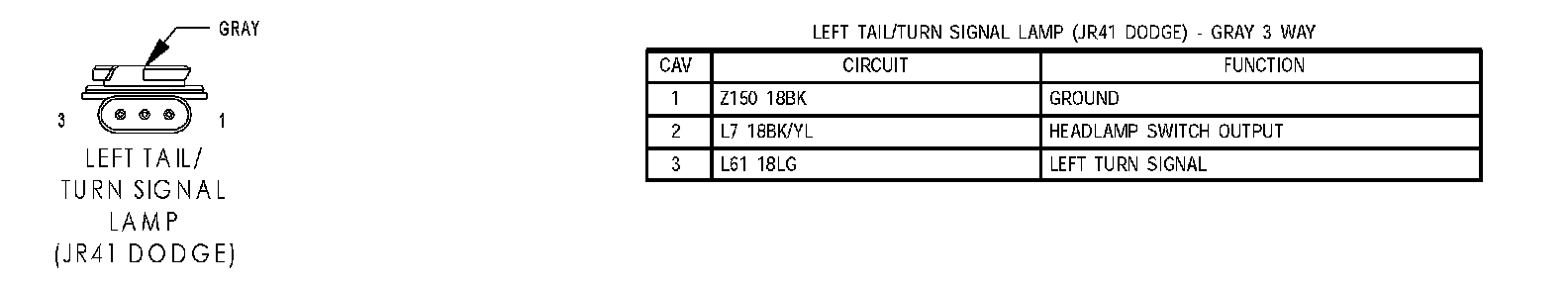

Left Tail/Turn Signal Lamp(JR41 Dodge):
Right Park/Turn Signal Lamp:

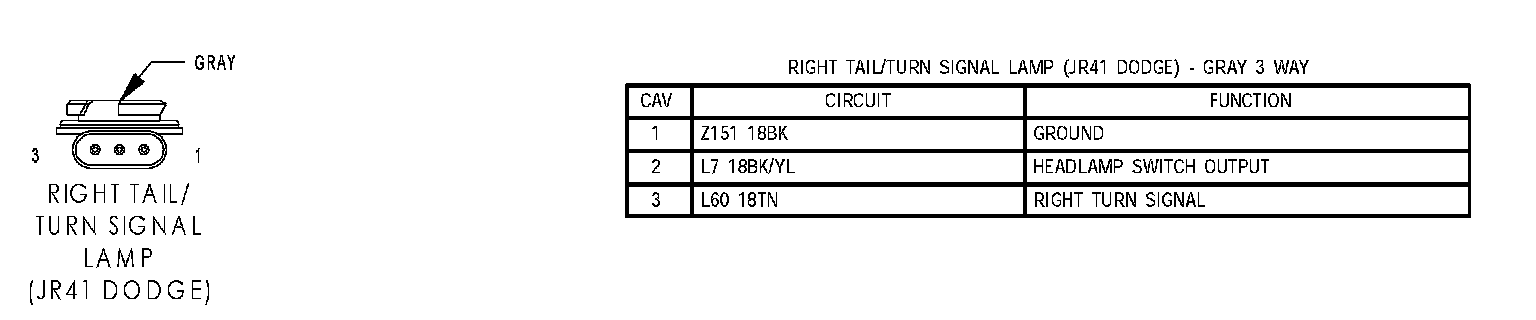

Right Tail/Turn Signal Lamp(JR41 Dodge):
