Side View Mirror

SIDE VIEW MIRROR

REMOVAL

1. Open deck lid.
2. Remove four bolts to battery compartment cover and remove cover.
3. Disconnect and isolate the battery negative cable.

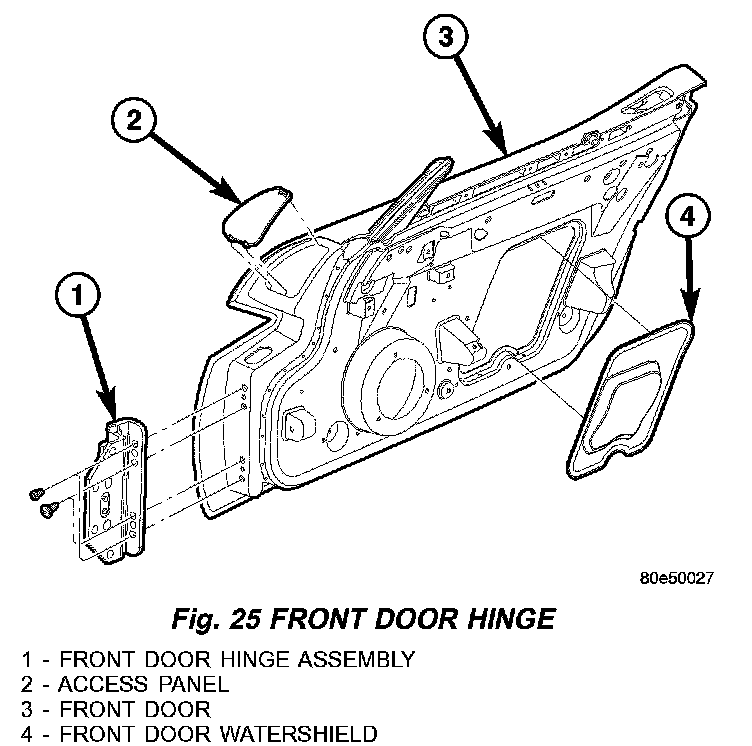

Fig. 25:

4. Remove the access panel at the front of door. (Fig. 25)

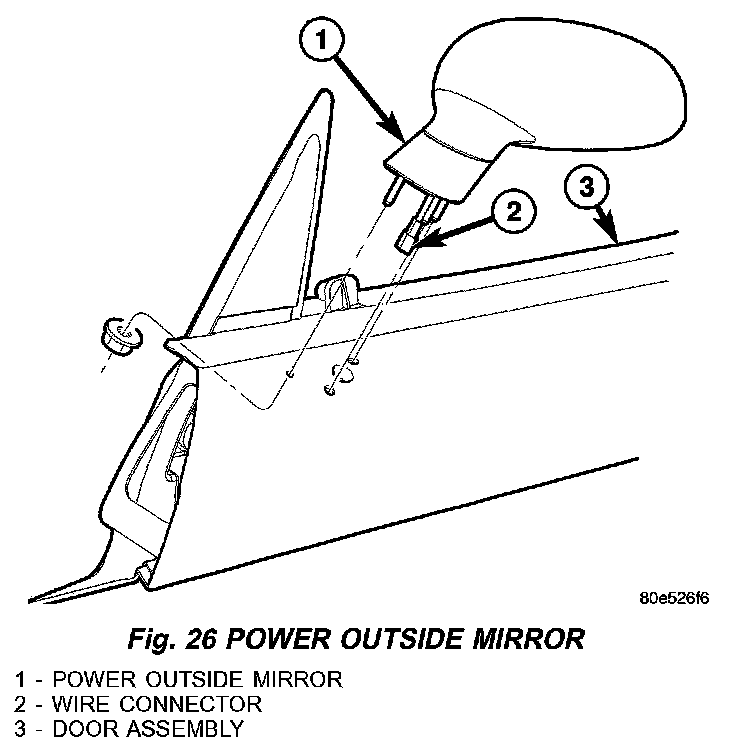

Fig. 26:

5. Remove the three mirror nuts. (Fig. 26)
6. Remove the mirror from the door and disconnect the electrical connector.

INSTALLATION

1. Connect the electrical connector and position the mirror onto the door.
2. Install the nuts and tighten to 7 N.m (65 in.lbs.).
3. Install the access panel.
