Air Bag
Air Bag

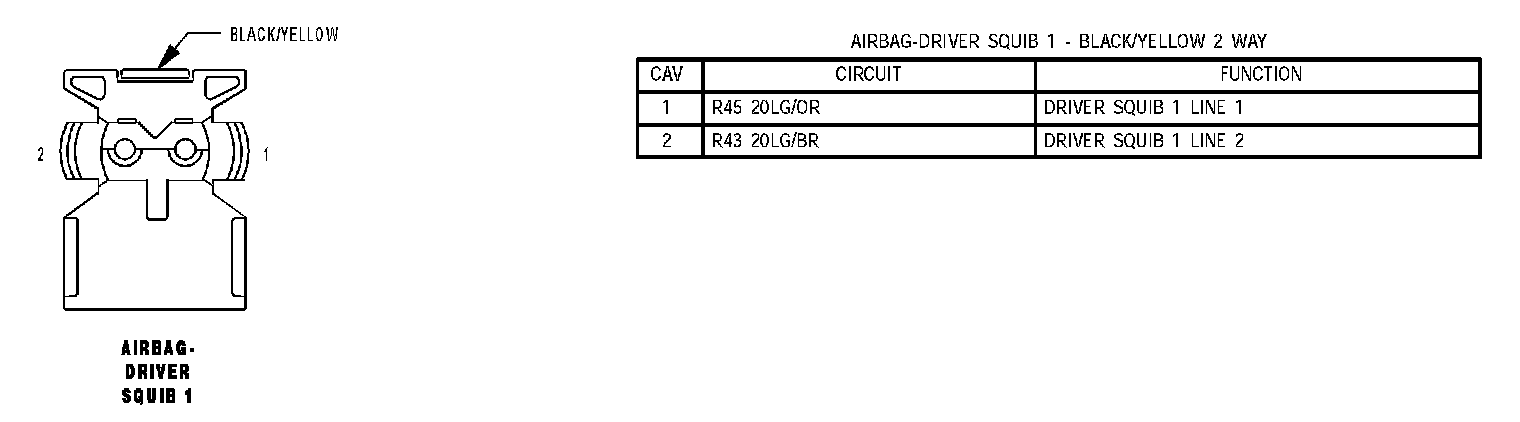

Airbag - Driver Squib 1:

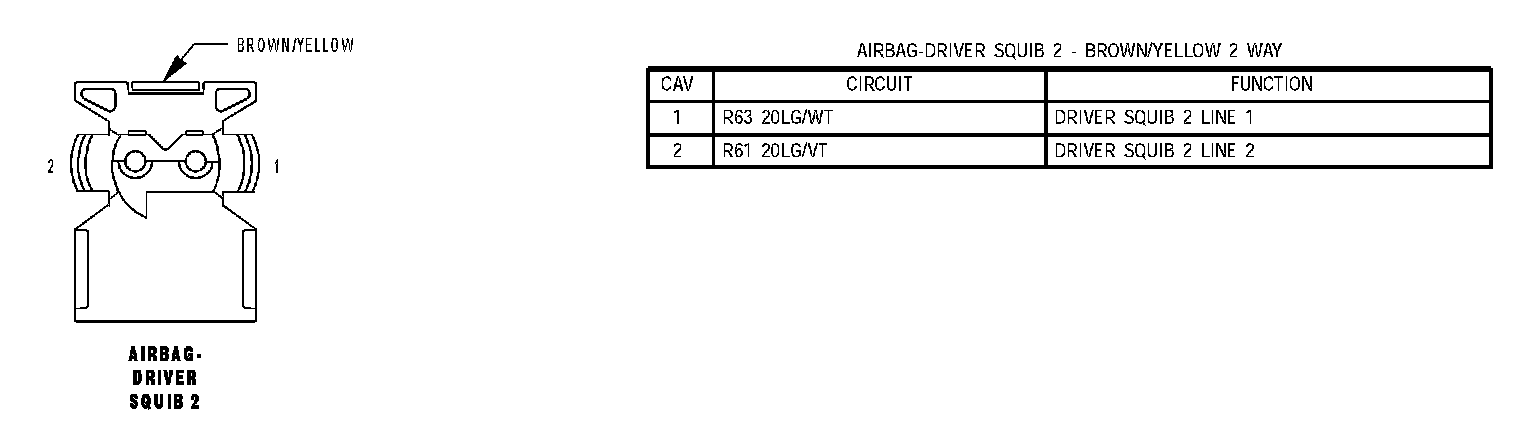

Airbag - Driver Squib 2:

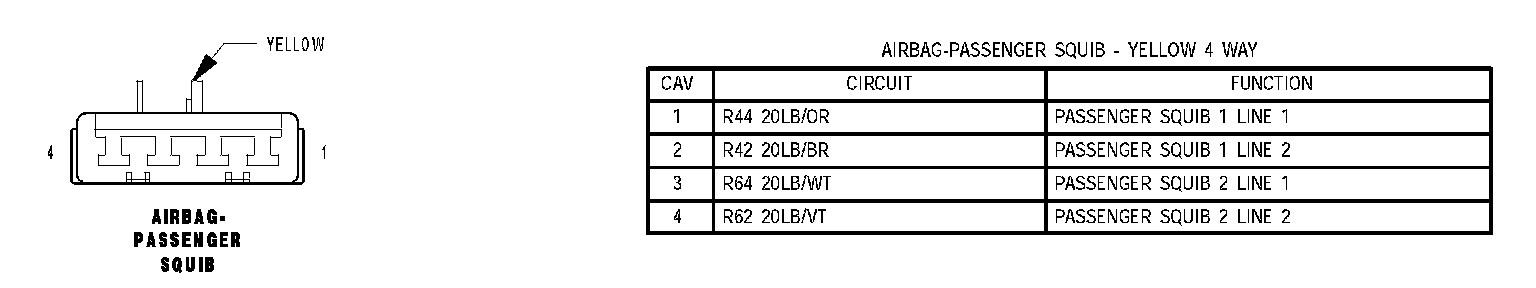

Airbag - Passenger Squib:

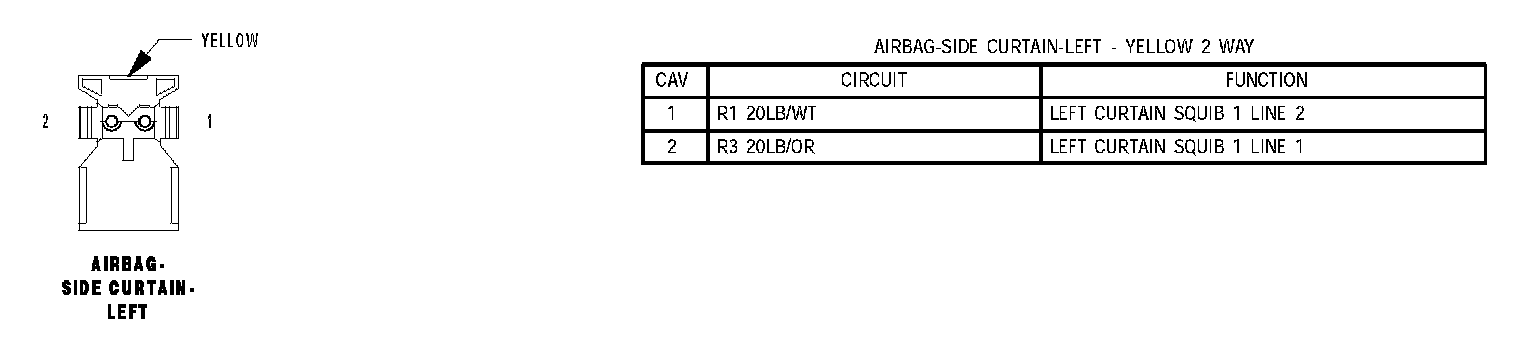

Airbag - Side Curtain - Left:

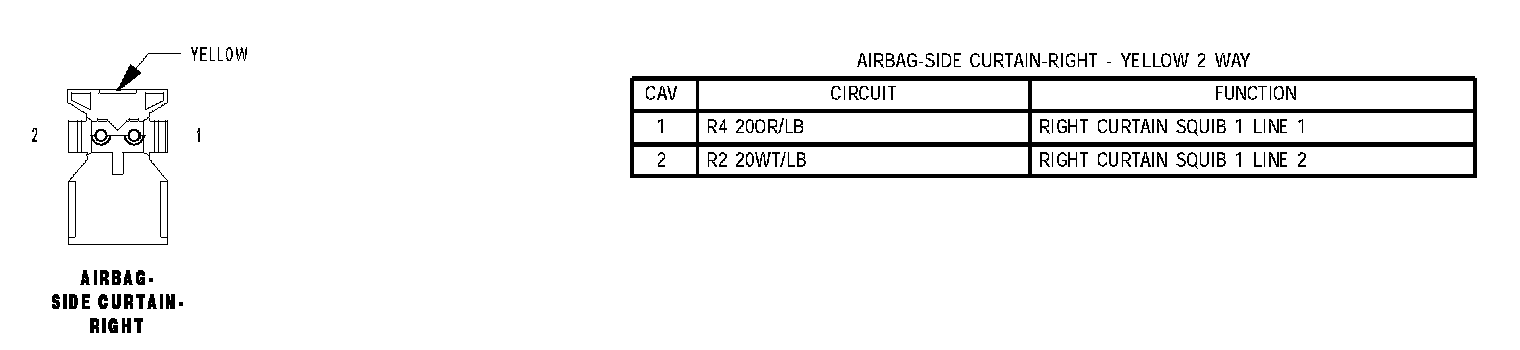

Airbag - Side Curtain Right:
