Operation CHARM: Car repair manuals for everyone.
Home >> Dodge >> 2005 >> Magnum V6-3.5L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Torque Specifications

Engine Torque Specifications

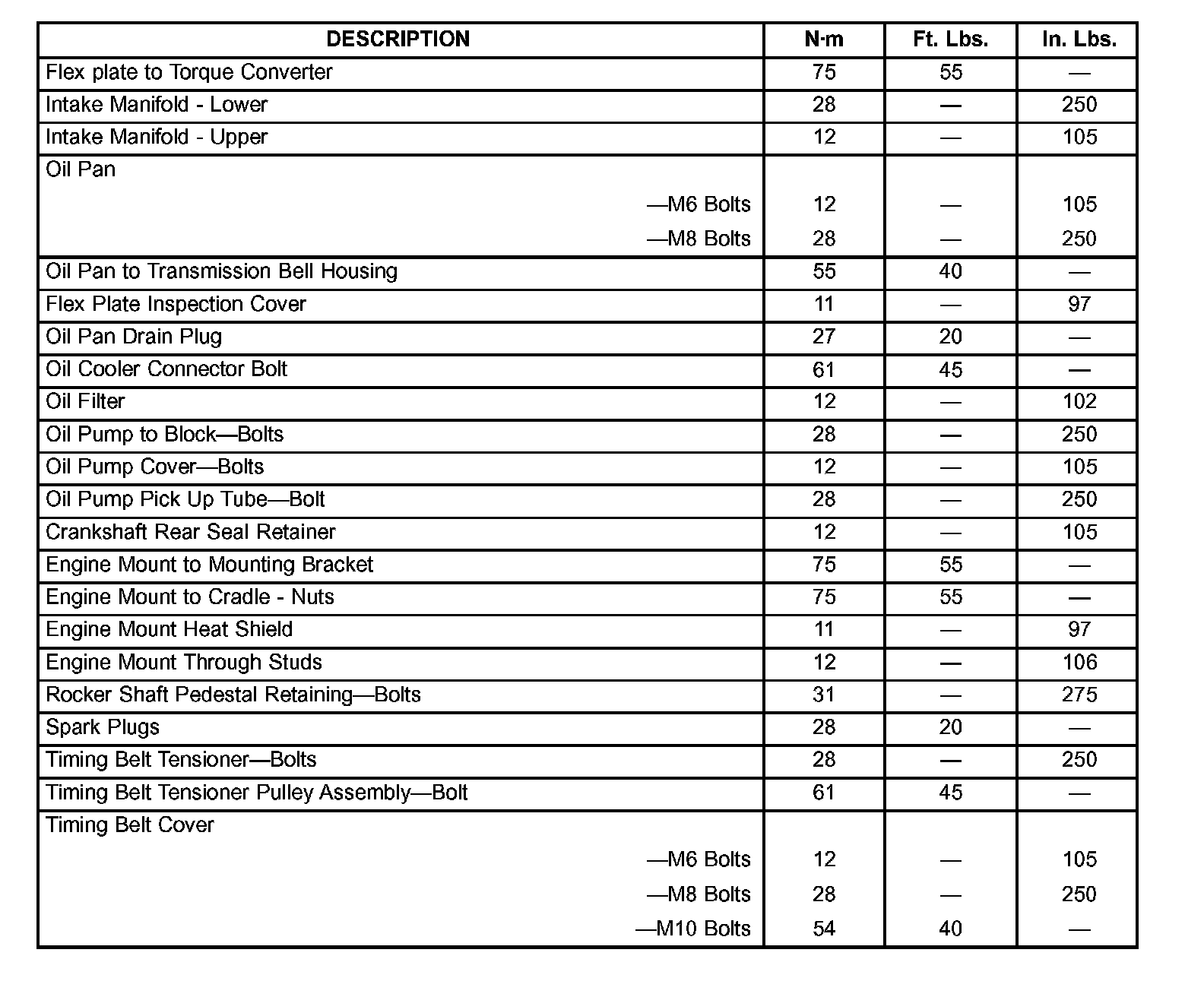

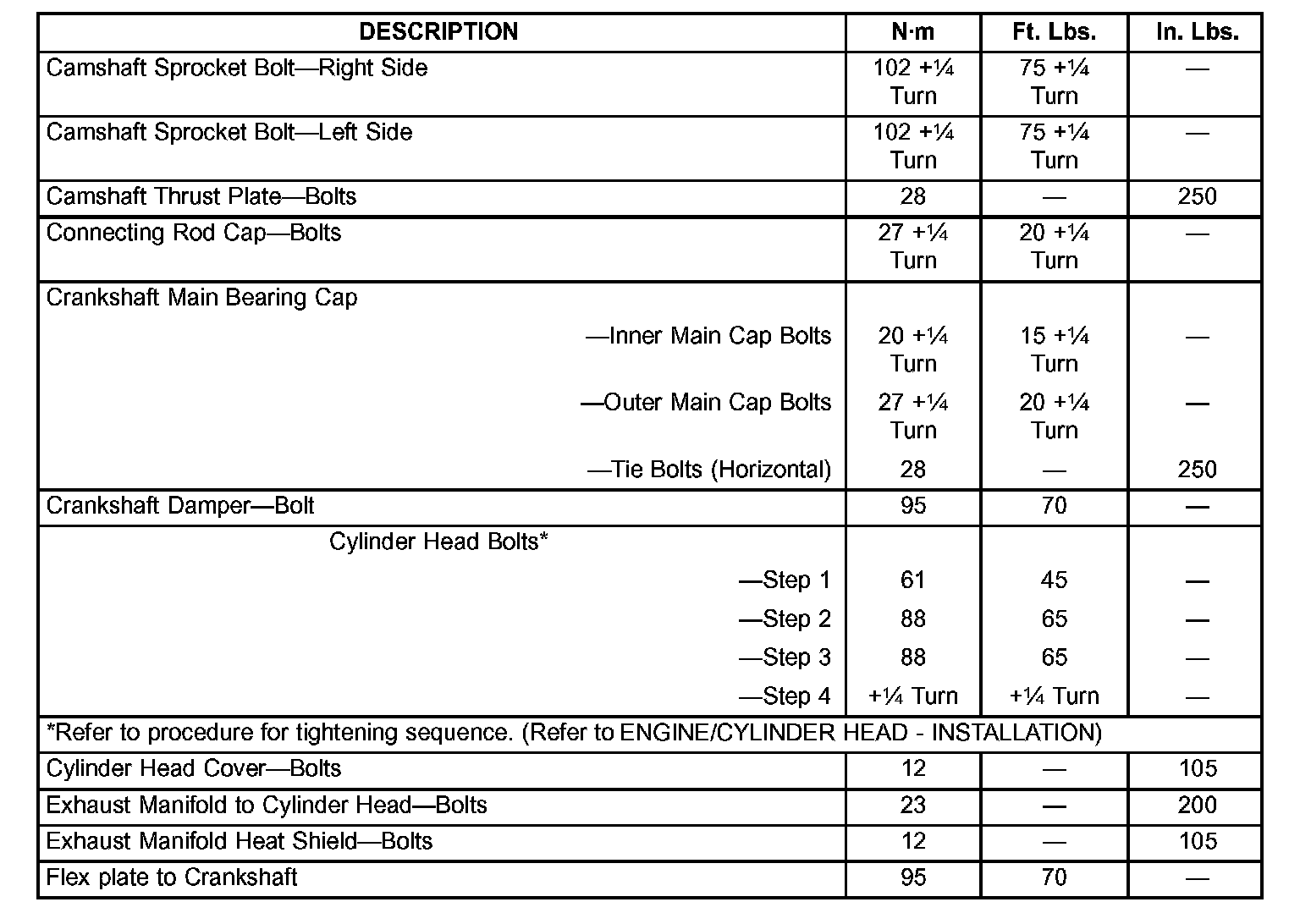

Torque Specifications

Water pump bolts 12 Nm (105 inch lbs.)
