Ignition Coil: Diagrams

Capacitor - Ignition Coil No.1:

Capacitor - Ignition Coil No.2 (2.7L/5.7L):

Coil - Ignition No.1 (5.7L):

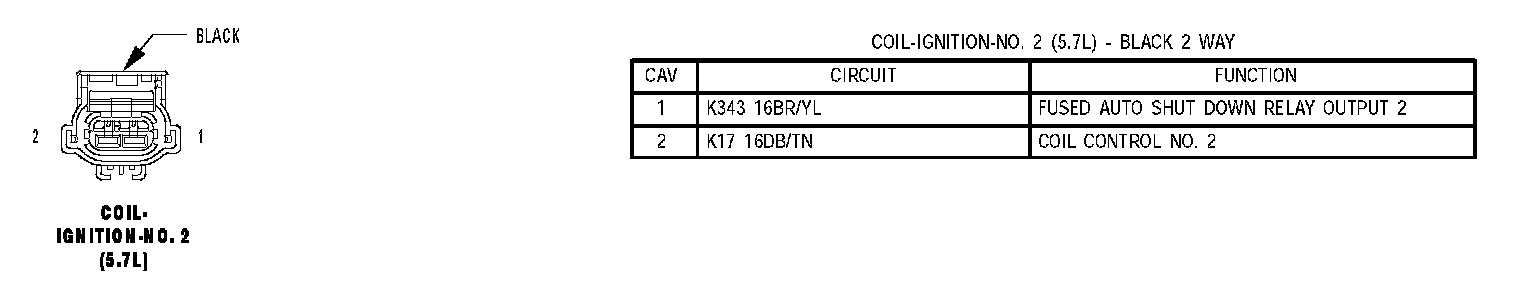

Coil - Ignition No.2 (5.7L):

Coil - Ignition No.3 (5.7L):

Coil - Ignition No.4 (5.7L):

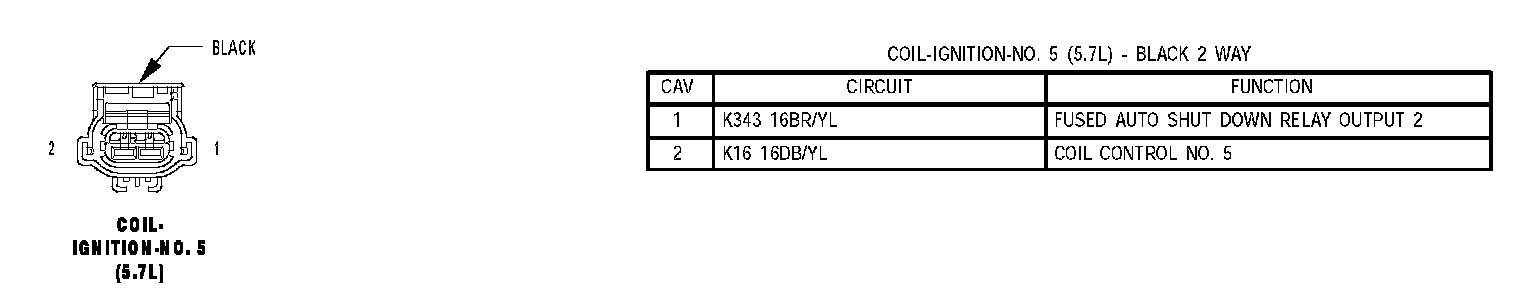

Coil - Ignition No.5 (5.7L):

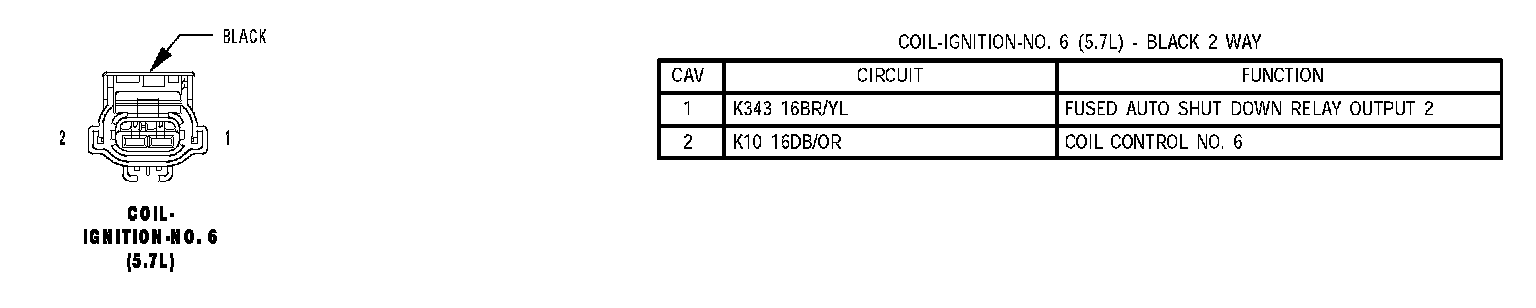

Coil - Ignition No.6 (5.7L):

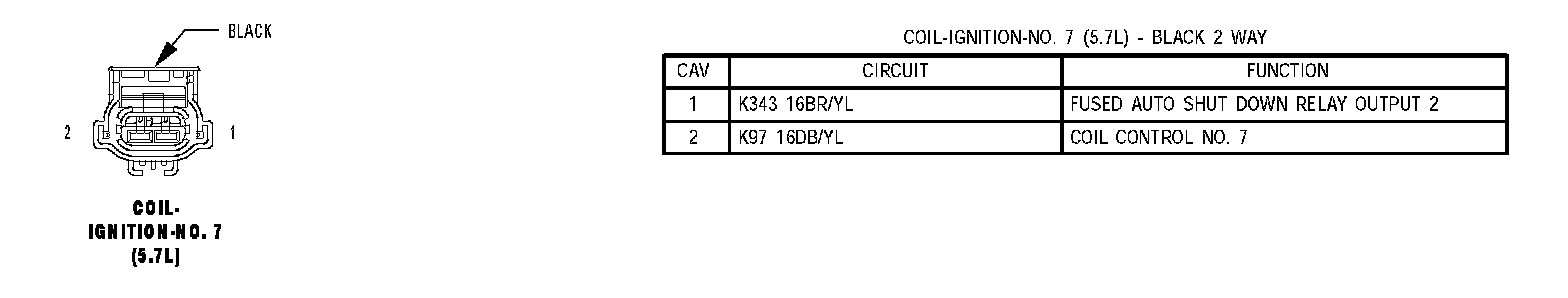

Coil - Ignition No.7 (5.7L):

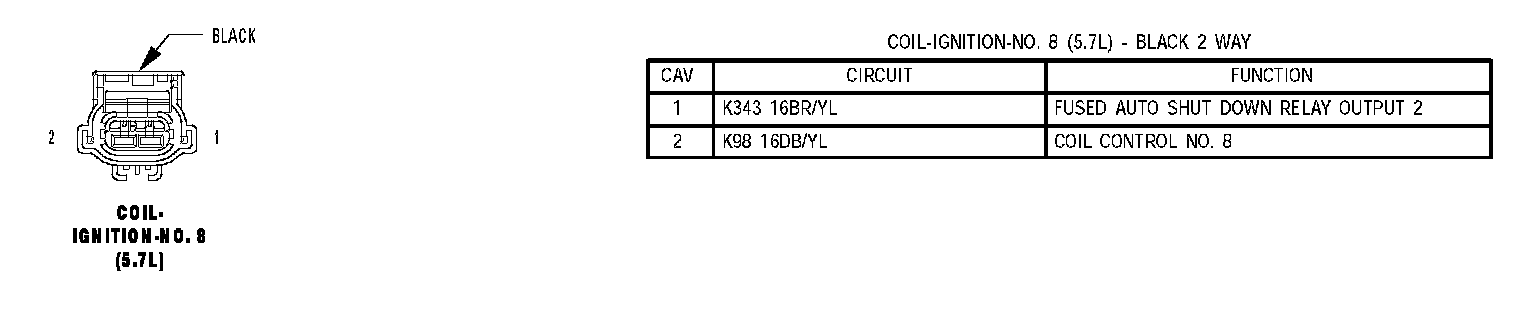

Coil - Ignition No.8 (5.7L):
