Engine Controls - MIL ON/Multiple DTC's Set
NUMBER: 18-031-04 REV. AGROUP: Vehicle Performance
DATE: November 12, 2004
THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 18-031-04, DATED JULY 8, 2004, WHICH SHOULD BE REMOVED FROM YOUR FILES. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND INCLUDE A UPDATED VEHICLE COVERAGE NOTE.
THE StarSCAN FLASH FILES FOR THIS BULLETIN ARE AVAILABLE VIA THE INTERNET.
FOR MARKETS OUTSIDE OF THE UNITED STATES AND CANADA, THE SOFTWARE AND REPROGRAMMING INSTRUCTIONS WILL BE AVAILABLE ON ITIL/ISIS DVD DECEMBER, 2004.
SUBJECT:
Flash:
Driveability Improvements MIL Illumination Diagnostic Trouble Codes P0116, P0139, P0159, P0197, U110B or U1402
NOTE:
THE StarSCAN must be operating at version 4.07 or higher when the module is reprogrammed.
OVERVIEW:
This bulletin involves selectively erasing and reprogramming the Powertrain Control Module (PCM) with new software.
MODELS:
2005 (LX) Chrysler 300/Magnum
NOTE:
This bulletin applies to vehicles equipped with a 5.7L engine (sales code EZB) and domestic market emissions (sales code NAS) that were built on or before May 28, 2004 (MDH 0528XX) **or between July 1, 2004 (MDH 0701XX) and August 18, 2004 (MDH 0818XX)**. This bulletin also applies to vehicles equipped with a 5.7L engine (sales code EZB) and international market emissions (sales code NA1) that were built on or before June 12, 2004 (MDH 0212XX) **or between July 1, 2004 (MDH 0701XX) and August 18, 2004 (MDH 0818XX)**
SYMPTOM/CONDITION:
This bulletin addresses one or more of the following conditions:
1. Eliminates stumble and hesitation when aggressively/quickly shifting between reverse and drive following a engine start-up.
2. Rough Idle after a hot start.
3. Long crank times on hot starts.
4. Intermittent oil pressure light illumination and chime while accelerating from a stop.
5. Improved shifting at low vehicle speeds.
6. Following a cold start, the coolant gauge stays at "G" cold and does not follow the increase in coolant temperature, with a TCM DTC U110B - Lost Engine Coolant Message or U1402 - Implausible Engine Temperature Signal Received or a PGM DTC P0116 - Engine Coolant Temperature Sensor Performance set, and the cooling fans running continuously. A key cycle would resume normal operation but the DTC will remain set.
7. Improved fuel economy for European NA1 emissions.
8. MIL illumination for DTC P0116 - Engine Coolant Temperature Sensor Performance.
9. MIL illumination for DTC P0I39 - 02 Sensor 1/2 Slow Response.
10. MIL illumination for DTC P0159 - 02 Sensor 2/2 Slow Response.
11. MIL illumination for DTC P0197 - Engine Oil Temperature Sensor Circuit Low.
NOTE:
To further improve shift performance it may be necessary to reprogram the Transmission Control Module (TCM) with new software. Perform Service Bulletin 21-009-04.

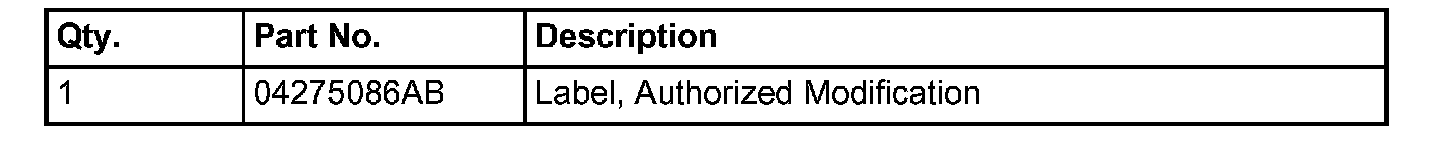

PARTS REQUIRED:

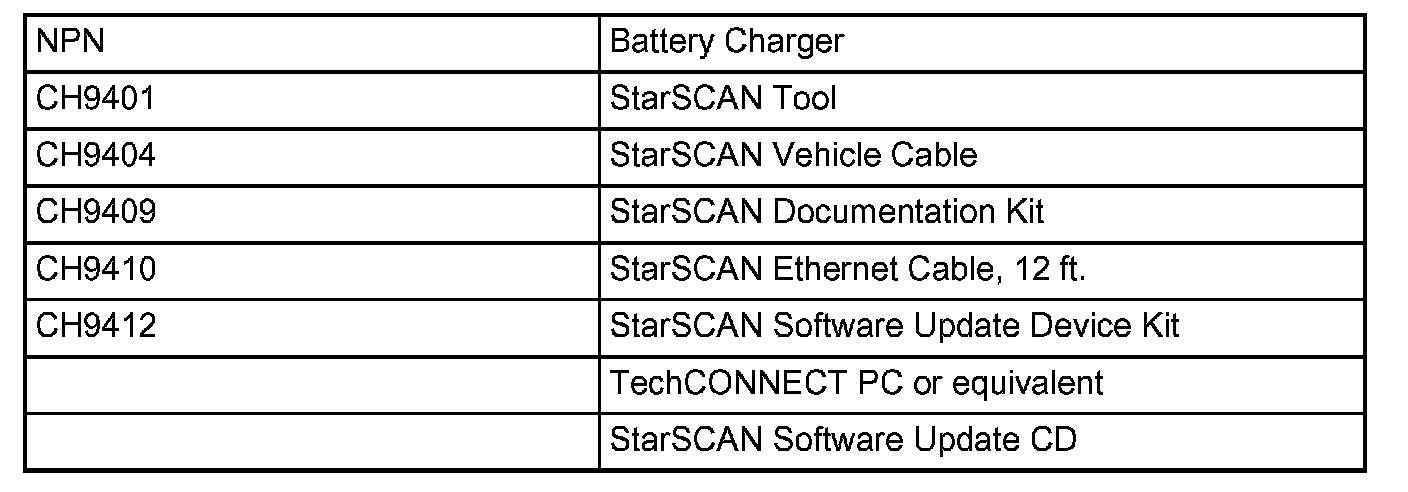

SPECIAL TOOLS/EQUIPMENT REQUIRED:
REPAIR PROCEDURE - USING THE INTERNET TO RETRIEVE THE FLASH FILE:
NOTE:
The StarSCAN must be at version 4.06 or higher before the "Using The Internet To Retrieve The Flash File" repair procedure can be performed.
NOTE:
The StarSCAN diagnostic scan tool fully supports Internet connectivity. However, in order to take advantage of this feature you must first configure the StarSCAN for your dealership's network. For instruction on setting up your StarSCAN for the dealer's network; refer to the StarSCAN Quick Start Networking Guide available on the website under the "download center".
NOTE:
Make sure the StarSCAN is configured to the dealership's network before proceeding.
NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.
1. Retrieve the old PCM part number. Using the StarSCAN at the "Home" screen:
a. Select "ECU View"
b. Touch the screen to highlight the PCM in the list of modules.
c. Record the "Part Number", displayed on the "ECU Overview" screen, for later reference.
2. Connect the CH9410 StarSCAN ethernet cable to the StarSCAN and the dealer's network drop.
3. Connect the CH9404 StarSCAN vehicle cable to the StarSCAN and the vehicle (optional).
4. Power ON the StarSCAN.
5. Download the flash file from the internet to the StarSCAN. Using the StarSCAN at the "Home" screen:
a. Select "Flash Download"
b. Select "Use connected vehicle" (StarSCAN must be connected to the vehicle) or "Enter information manually" (connection to the vehicle is not necessary). Press the "Next" button and follow the on screen instructions.
c. Select the appropriate calibration.
d. Select "Download to Scantool".
e. Select "Close" after the download is complete.
6. Connect the CH9404 StarSCAN vehicle cable to the StarSCAN and the vehicle (if not already connected).
7. Open the hood, install a battery charger and verify that the charging rate provides approximately 13.5 volts.
8. Download the file from StarSCAN to the vehicle. Using StarSCAN at the "Home" screen:
a. Select "ECU View"
b. Browse the list of controllers using the scroll arrows. Highlight the PCM.
c. Select "More Options"
d. Select "ECU Flash"
e. Highlight the appropriate PCM "Calibration" from the list.
f. Select "Update Controller"
g. When update is completed, select "OK"
NOTE:
Due to the PCM programming procedure, a DTC may be set in other modules (TCM, BCM, MIC, SKREEM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate. Check all modules using "ECU View" from the Home screen, record the DTC's, and erase these DTC's prior to returning the vehicle to the customer. Erase any DTC's in the PCM only after all other modules have had their DTC's erased.
9. Perform Service Bulletin 21-009-04 if not already completed.
NOTE:
The following step is required by law.

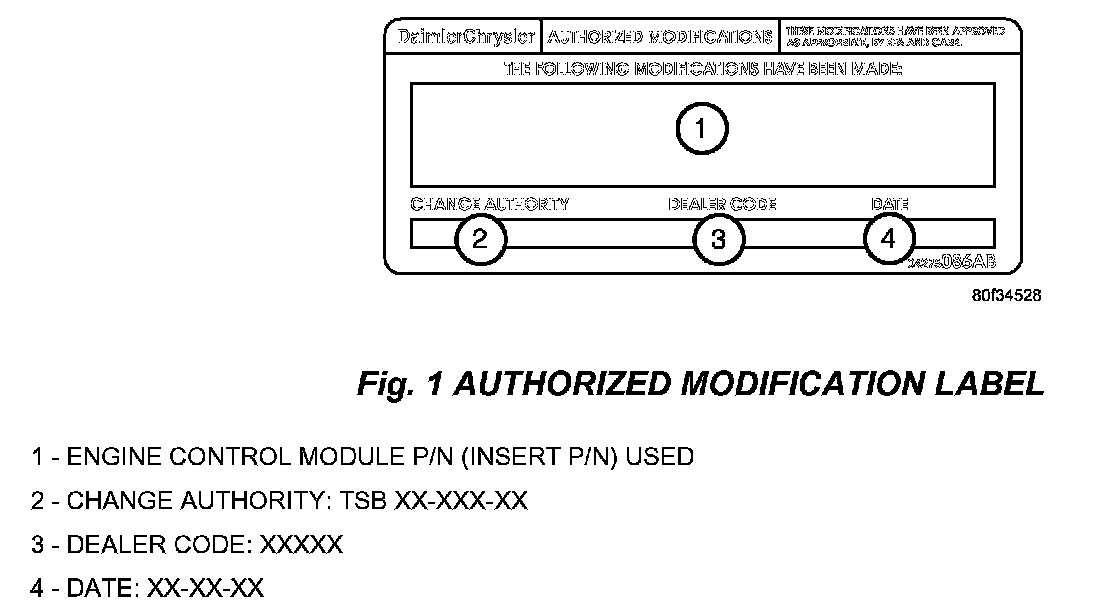

10. Type the necessary information on the "Authorized Modification Label p/n 04275086AB and attach near the VECI label (Fig. 1).
REPAIR PROCEDURE - USING SOFTWARE UPDATE CD TO RETRIEVE THE FLASH FILE:
NOTE:
Before flashing this module, make sure the StarSCAN is operating at the latest level and this is the latest flash file available from the StarSCAN update CD. To determine the latest StarSCAN software version level available refer to the website under the "Latest News" link.
NOTE:
If this flash process is interrupted/aborted, the flash should be restarted.
NOTE:
For detailed information on the operation of the StarSCAN, refer to the Quick Reference documentation provided in the StarSCAN documentation kit. In addition, more recent information may also be available at the website. Look under "Training Aids" and also under "Download Center > Frequently Asked Questions" for more help.
1. Retrieve the old PCM part number. Using the StarSCAN at the "Home" screen:
a. Select "ECU View"
b. Touch the screen to highlight the PCM in the list of modules.
c. Record the "Part Number", displayed on the "ECU Overview" screen, for later reference.

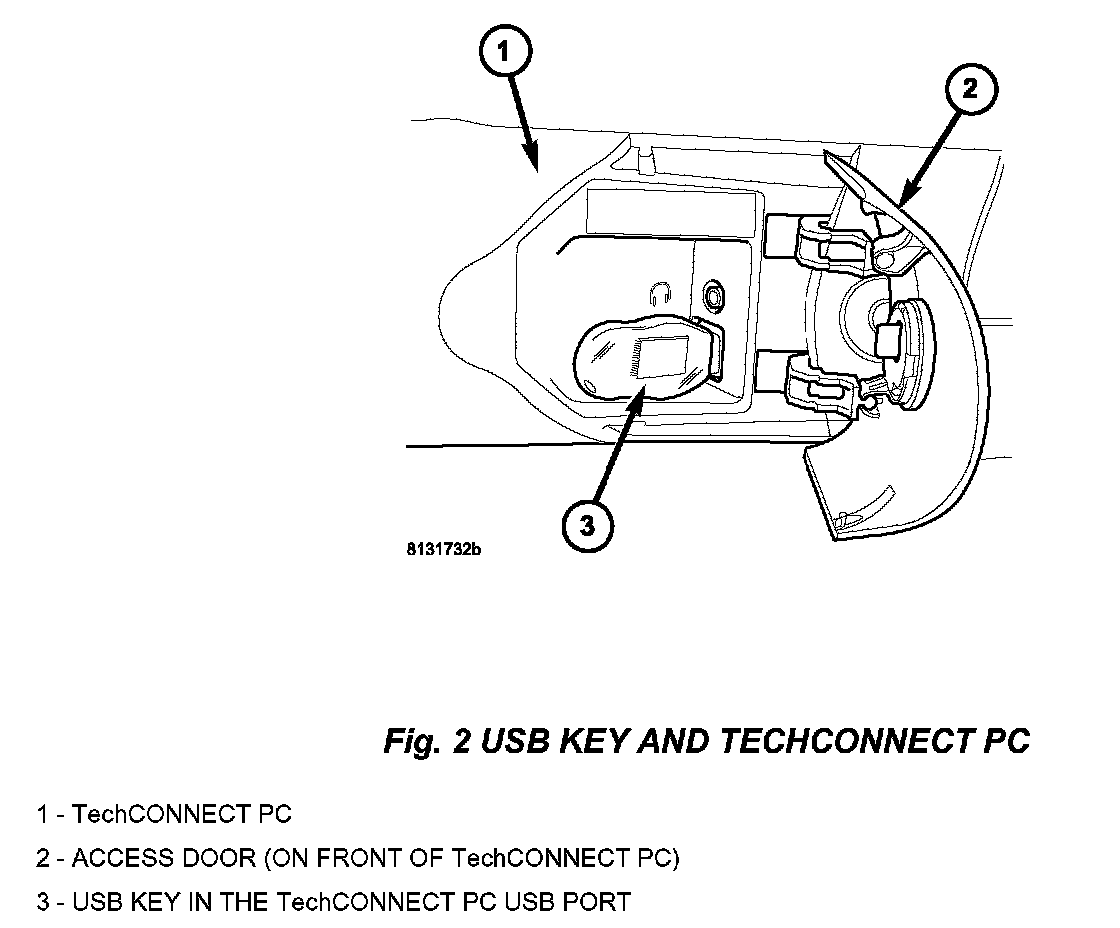

2. Insert the USB Key, into the USB port on the TechCONNECT or equivalent PC (Fig. 2).
3. Insert the StarSCAN Software Update CD into the TechCONNECT or equivalent PC. The StarSCAN Software Update CD will start automatically.
a. Select "Controller Flash".
b. Follow the on screen instructions.
4. At the "Select the type of information you wish to enter." screen:
a. If the old "Part Number" was recorded in Step # 1, proceed to Step # 5.
b. If the old "Part Number" is not known, proceed to Step # 6.
5. Select "Enter part number".
a. Follow the on screen instructions. Enter the "Part Number" (use capital letters) recorded in Step # 1 when prompted to do so. Follow the on screen instructions. Select "Next" after each step. Select "Finish" after completing the last step.
b. Proceed to Step # 7.
6. Select "Enter YME Information".
a. Follow the on screen instructions. Select "Next" after each step. Select "Finish" after completing the last step.
b. Proceed to Step # 7.
7. Using the mouse highlight the appropriate "Calibration"
a. Select "Save to USB"
b. Follow the on screen instructions. Select "Next" # after each step . Select "Finish" after completing the last step.

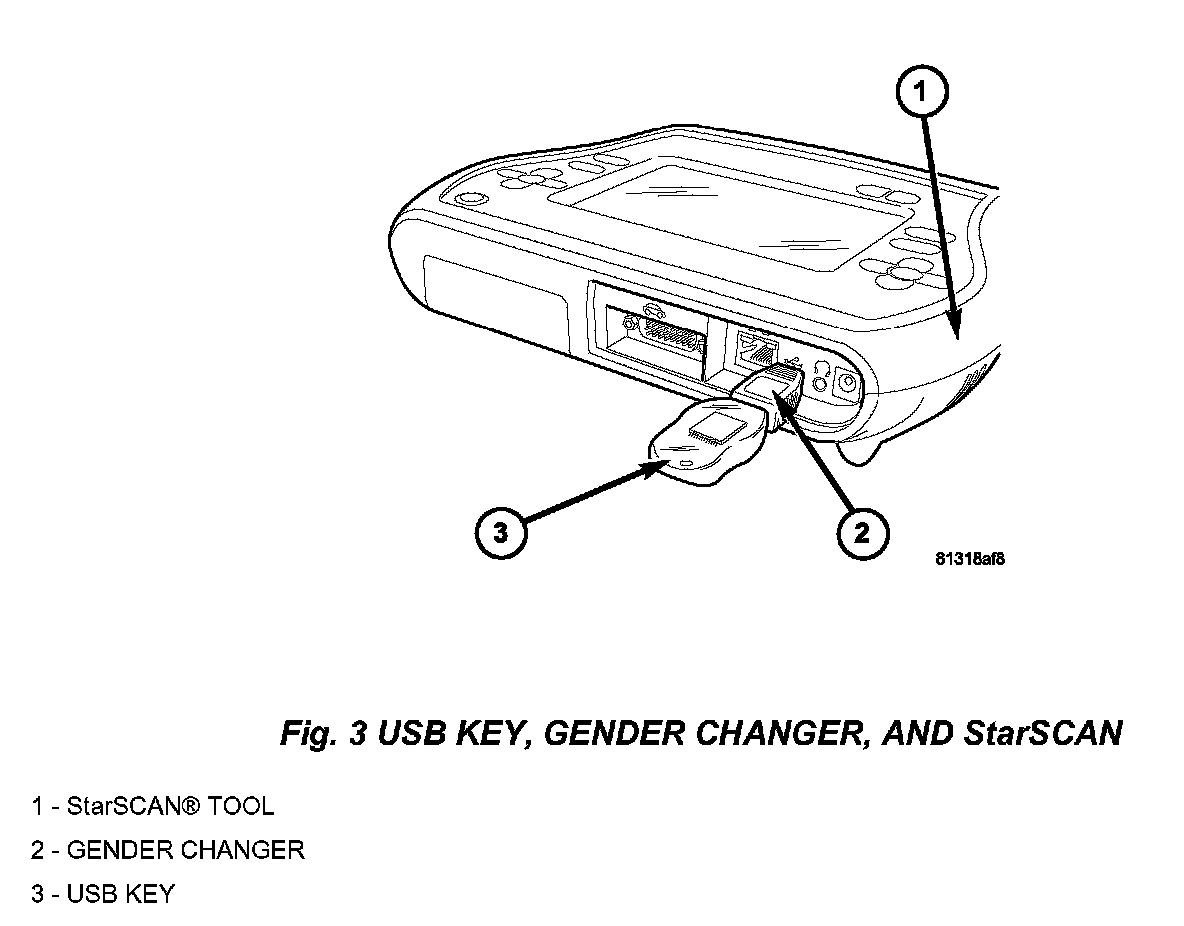

8. With the StarSCAN powered OFF, connect the USB Key and Gender Changer to the StarSCAN USB port (Fig. 3).
9. Open the hood, install a battery charger and verify that the charging rate provides approximately 13.5 volts.
10. Connect the StarSCAN to the vehicle.
11. Power ON the StarSCAN.
12. Download the file from the USB key to the StarSCAN. Using the StarSCAN at the "Home" screen:
a. Select "Flash Download"
b. Select "Use USB device"
c. Follow the on screen instructions. Select "Next" # after each step . Select "Finish" after completing the last step.
d. At the "Flash File List" screen, highlight the appropriate PCM "Calibration"
e. Select "Download to Scantool"
f. When the download is complete, select "Close"
13. Download the file from the StarSCAN to the vehicle. Using the StarSCAN at the "Home" screen:
a. Select "ECU View"
b. Browse the list of controllers using the scroll arrows. Highlight the PCM.
c. Select "More Options"
d. Select "ECU Flash"
e. Highlight the appropriate PCM "Calibration" from the list.
f. Select "Update Controller"
g. When update is completed, select "OK"
NOTE:
Due to the PCM programming procedure, a DTC may be set in other modules (TCM, BCM, MIC, SKIM, etc.) within the vehicle, if so equipped. Some DTC's may cause the MIL to illuminate. Check all modules using "ECU View" from the Home screen, record the DTC's, and erase these DTC's prior to returning the vehicle to the customer. Erase any DTC's in the PCM only after all other modules have had their DTC's erased.
14. Perform Service Bulletin 21-009-04 if not already completed.
NOTE:
The following step is required by law.
15. Type the necessary information on the "Authorized Modification Label p/n 04275086AB and attach near the VECI label (Fig. 1).
POLICY:
Reimbursable within the provisions of the warranty.

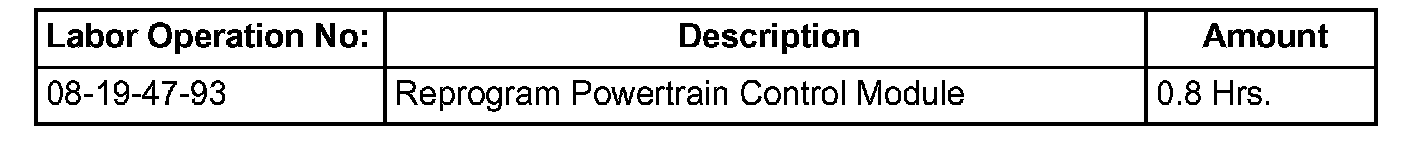

TIME ALLOWANCE:

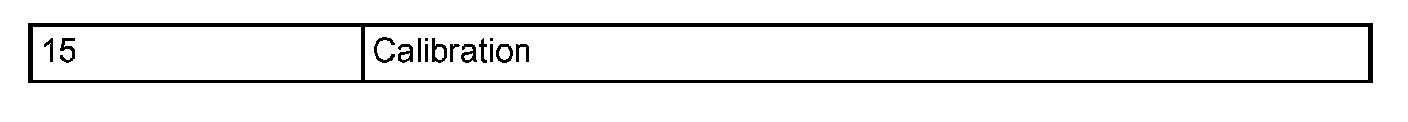

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
