System Specifications

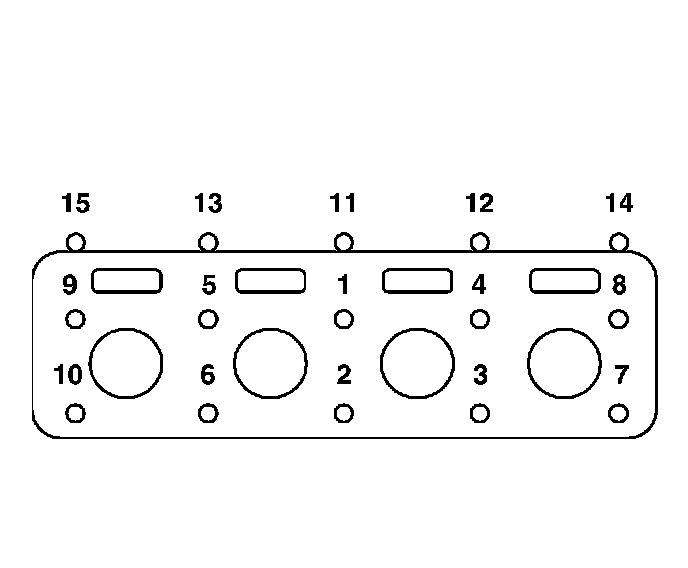

Cylinder Head-Bolts
M-12 Bolts
Step 1 34 Nm (25 ft. lbs.)
Step 2 54 Nm (40 ft. lbs.)
Step 3 Turn 90°
M-8 Bolts
Step 1 20 Nm (15 ft. lbs.)
Step 2 34 Nm (25 ft. lbs.)

Out-of-flatness max 0.0508 mm (0.002 inch)

Intake manifold bolts 12 Nm (105 inch lbs.)
Middle bolts towards the outside in a crisscross pattern

Camshaft bolt 122 Nm (90 ft. lbs.)

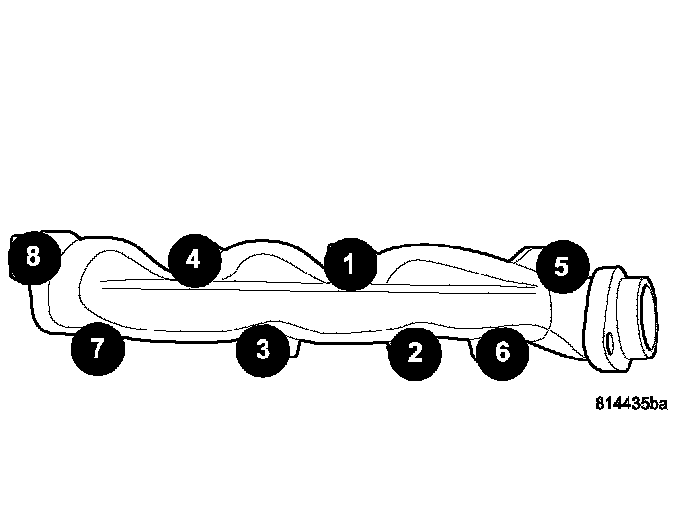

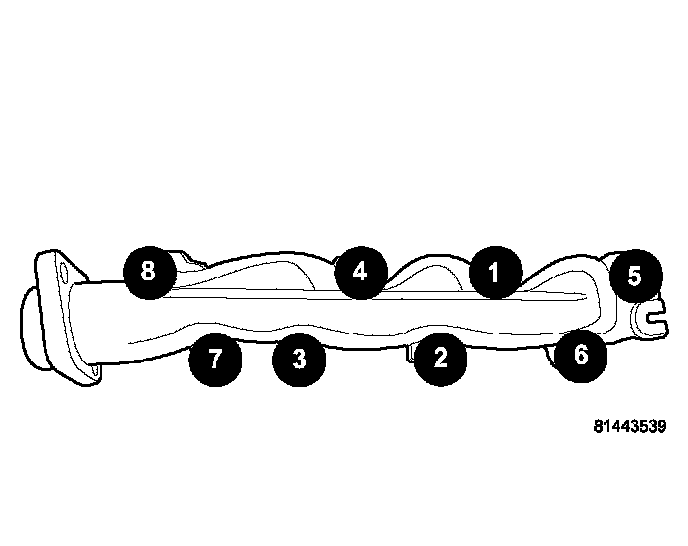

Exhaust Manifold to Cylinder Head 25 Nm (220 inch lbs.)
