Front Axle - 175FIA

FLUID
STANDARD PROCEDURE - FLUID FILL

NOTE: The 175MM FIA Front Axle assembly is designed for 'fill for life' and is not manufactured with a fluid drain plug.

1. Raise and support vehicle.

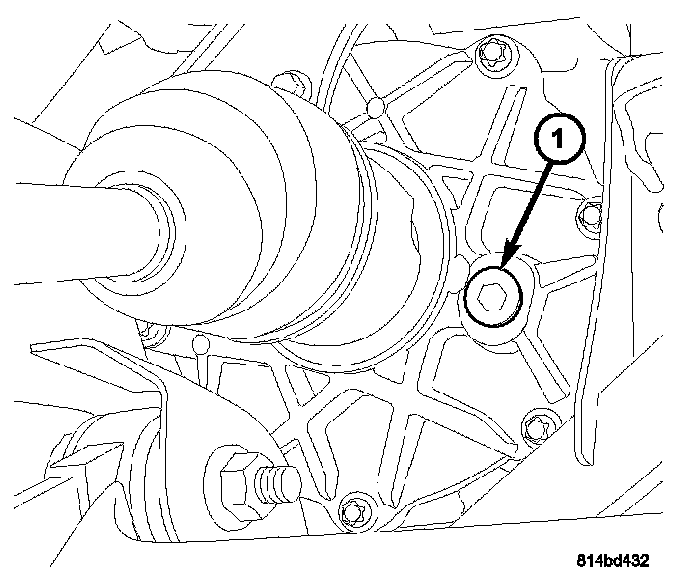

2. Remove axle fill plug (1).
3. Fill axle with 600 ml (0.64 quarts) of Mopar 75W-90 Synthetic Gear Lubricant. Fluid should be within 3/16" of bottom of fill hole.
