Home >> Dodge >> 2006 >> Charger V8-5.7L VIN H >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag

Air Bag

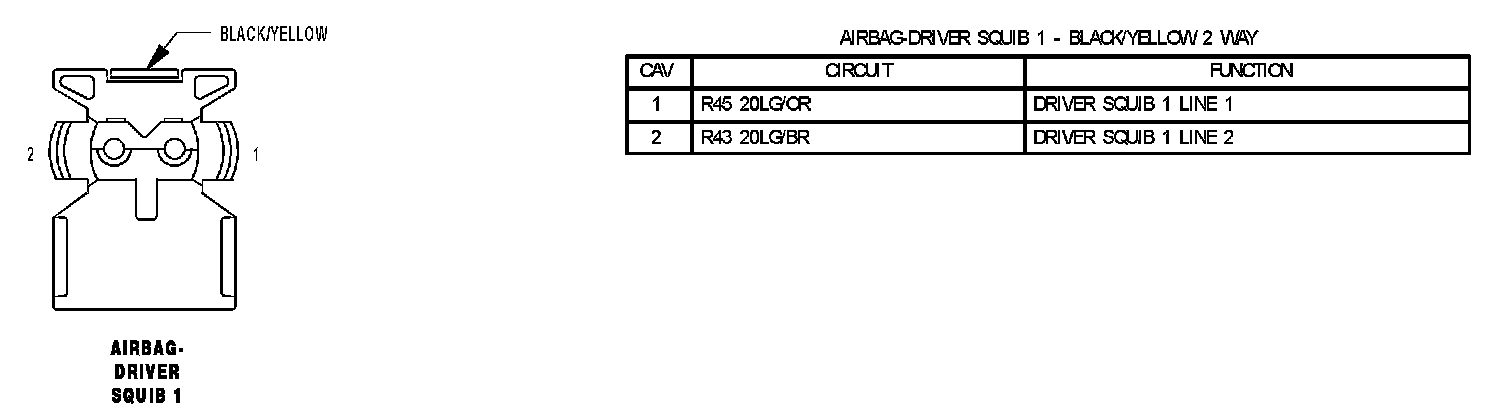

Airbag-Driver Squib 1:



Airbag-Driver Squib 2:



Airbag-Passenger Squib:

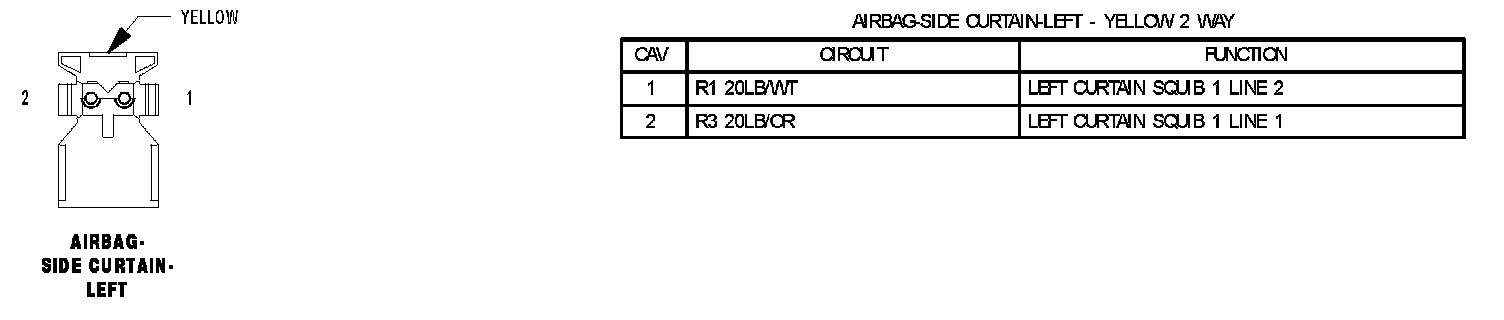

Airbag-Side Curtain-Left:

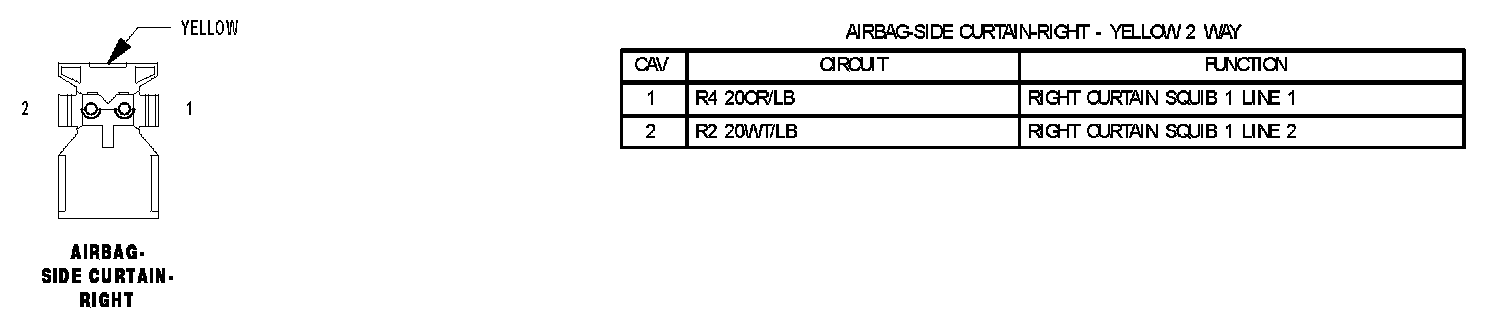

Airbag-Side Curtain-Right:
