Turn Signal Lamp
Turn Signal Lamp

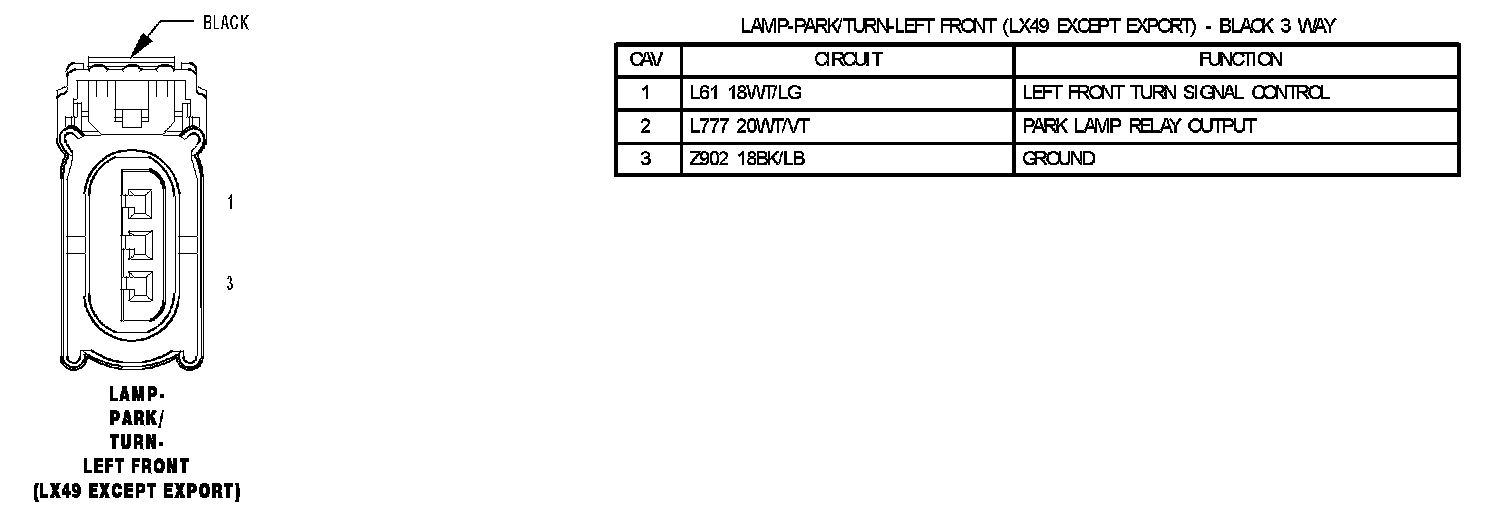

Lamp-Park/Turn-Left Front (LX49 Except Export):

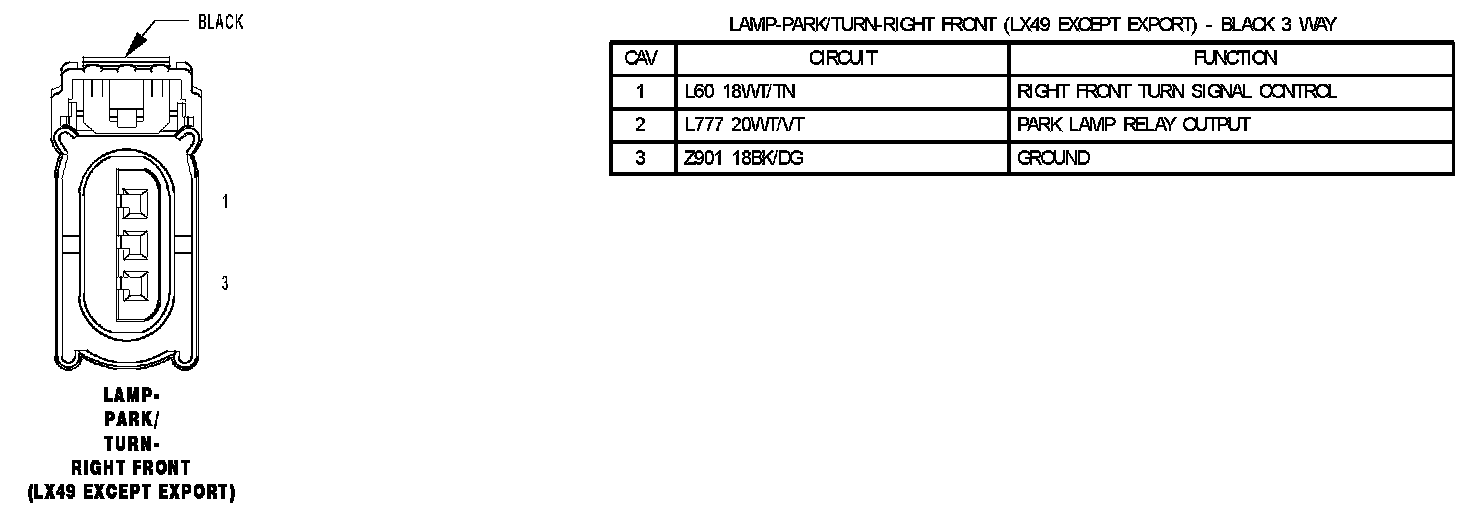

Lamp-Park/Turn-Right Front (LX49 Except Export):

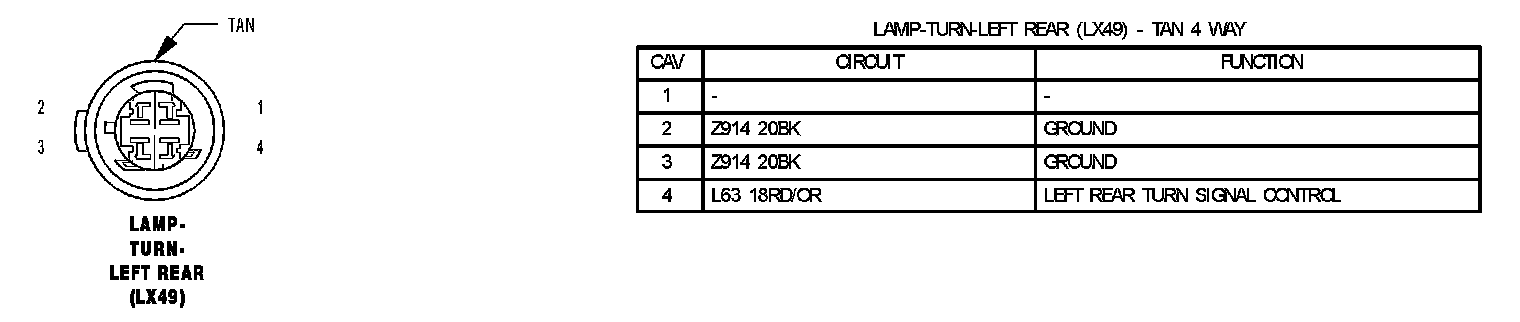

Lamp-Turn-Left Rear (LX49):

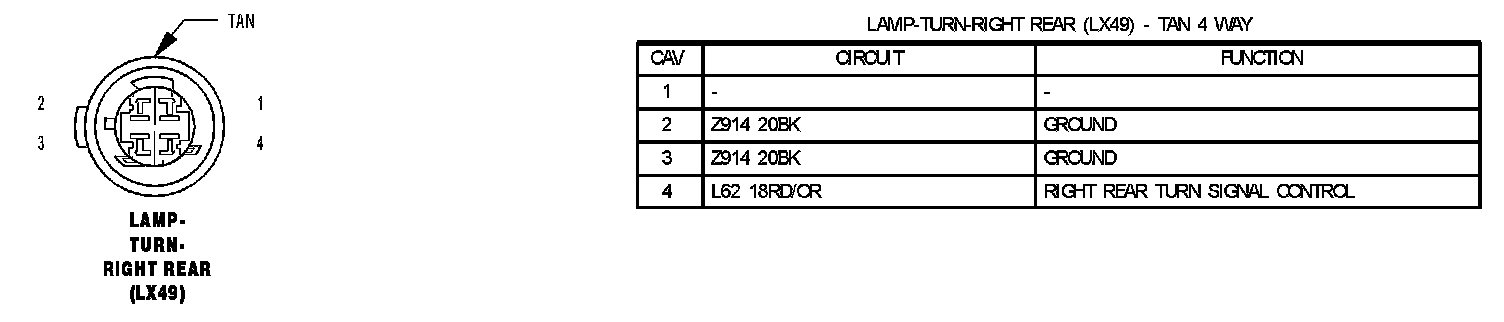

Lamp-Turn-Right Rear (LX49):
