Manifold Pressure/Vacuum Sensor
>>
Locations
>>
Connector Locations
Connector Locations

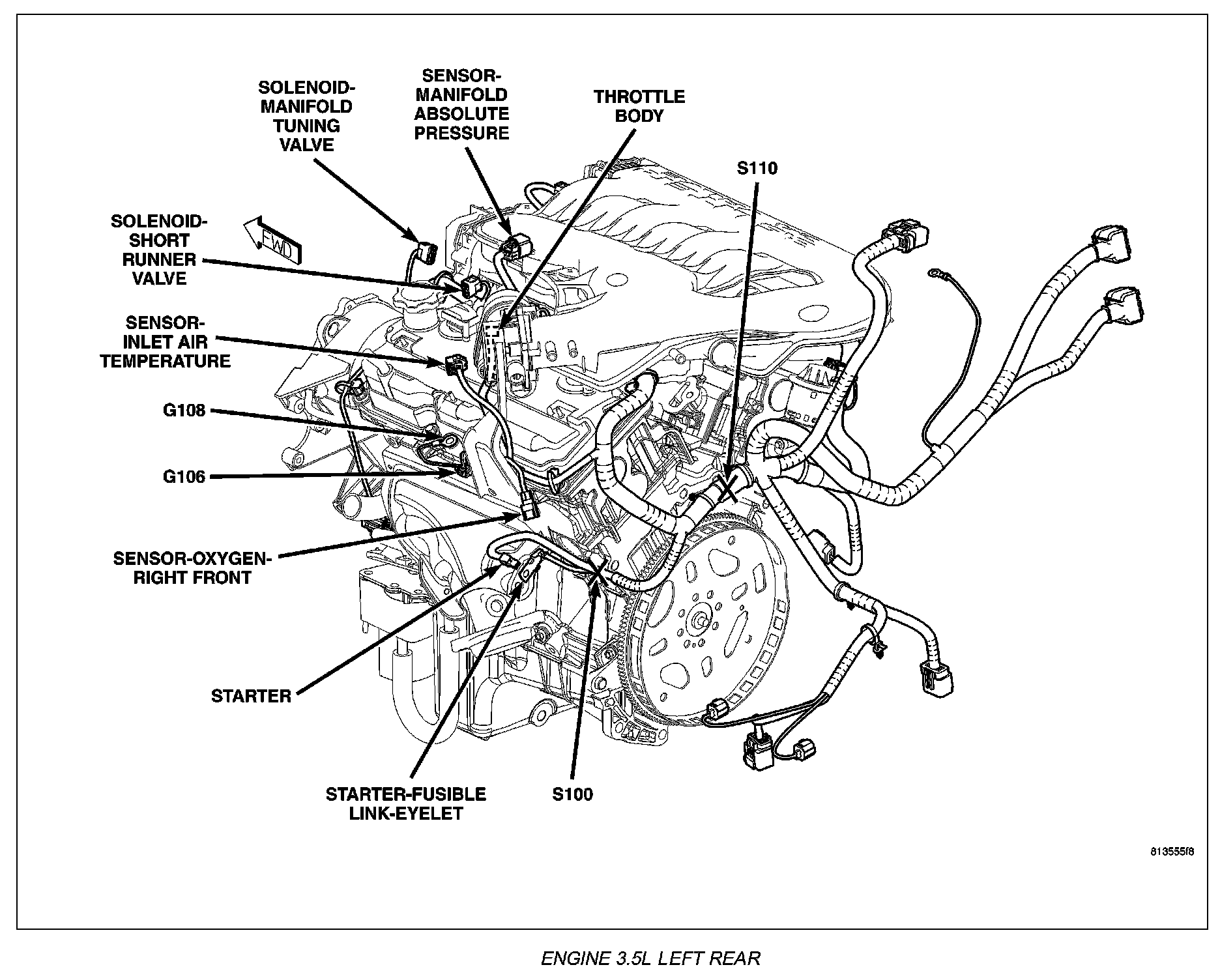

Engine 3.5L Left Rear:

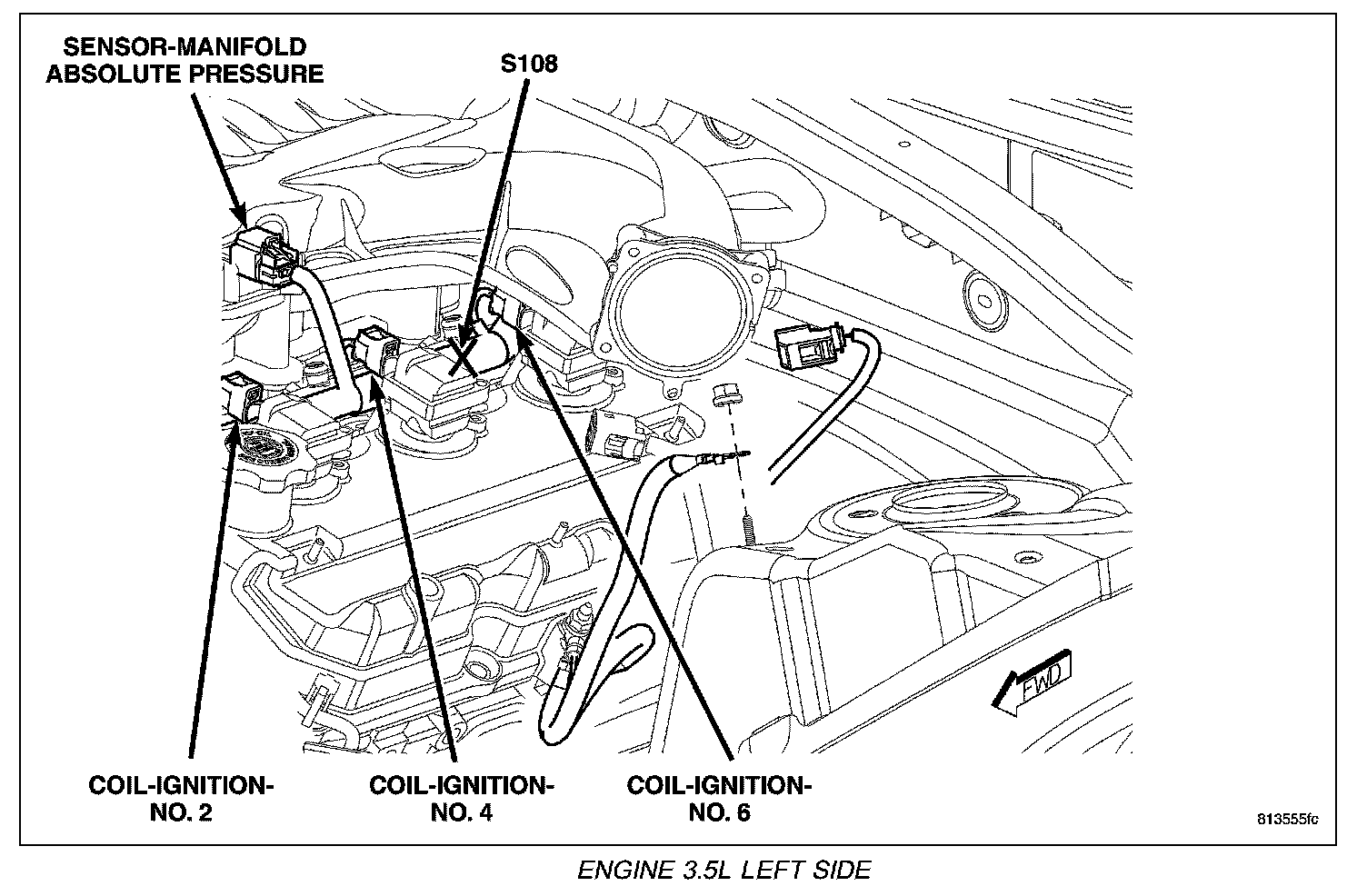

Engine 3.5L Left Side:
