Brake Pad: Specifications

The brake pad friction material thickness is to be measured at the thinnest point of the friction material.

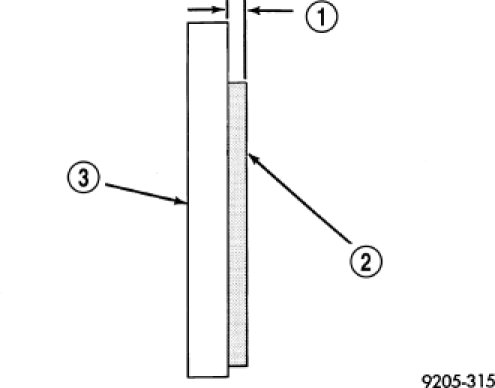

The minimum front brake pad assembly friction material thickness (1) is 2.5 mm (.100 in.). When the brake pad friction material reaches the minimum thickness, the front brake pads must be replaced.
