INSTRUMENT PANEL

NOTE: LHD driver side air outlet shown. RHD and passenger side outlet similar.

NOTE: Take the proper precautions to protect the faces of the instrument panels and covers from cosmetic damage while performing this procedure.






NOTE: If the foam seal on the air outlet is deformed or damaged, it must be replaced.

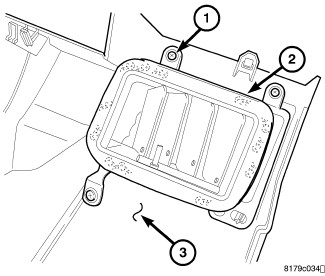

1. Position the air outlet (2) onto the steering column opening cover or IP base panel (3) and install the four screws (1). Tighten the screws to 2 Nm (17 in. lbs.).

NOTE: Make sure the foam seal on the air outlet is properly positioned into the IP duct to prevent air leaks and excessive noise during A/C-heater operation.

2. Depending on the outlet being serviced, install the steering column opening cover Steering Column Opening Cover - Installation or the IP base panel Instrument Panel - Installation.
