Hood Sensor/Switch (For Alarm)
Hood Sensor/Switch (For Alarm)

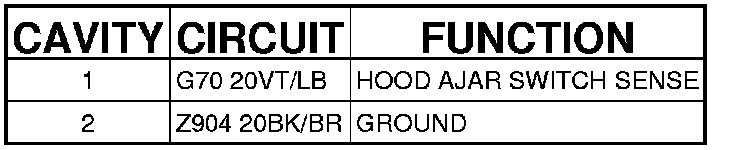

Connector (VTSA) - (HEADLAMP AND DASH) 2 WAY

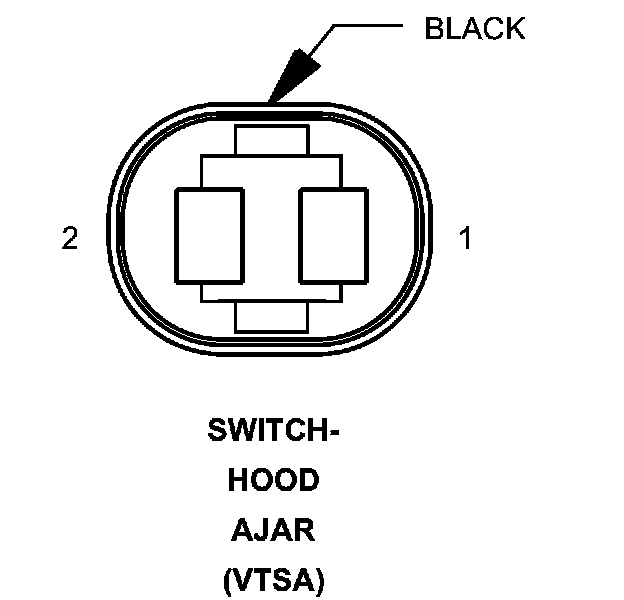

SWITCH-HOOD AJAR (VTSA) - (HEADLAMP AND DASH) 2 WAY
