Operation CHARM
: Car repair manuals for everyone.
Home
>>
Dodge
>>
2009
>>
Challenger V8-5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

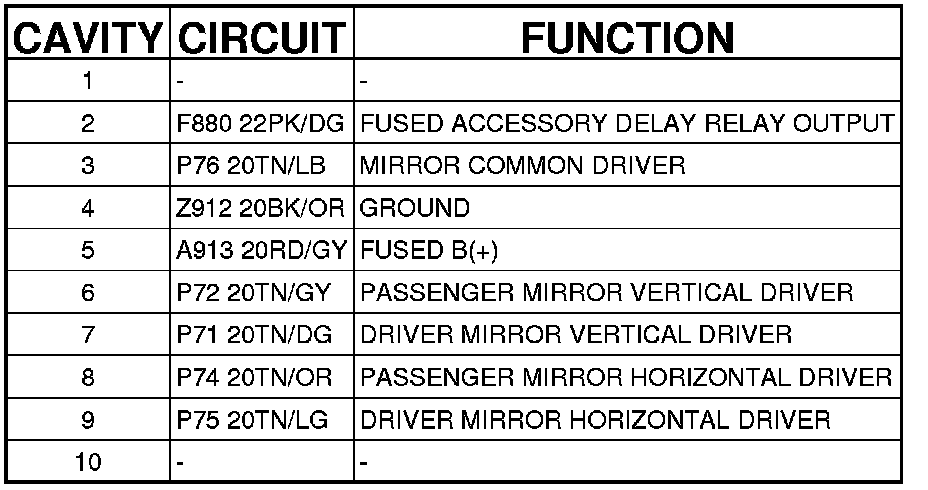

Connector - (FRONT DOOR) 10 WAY

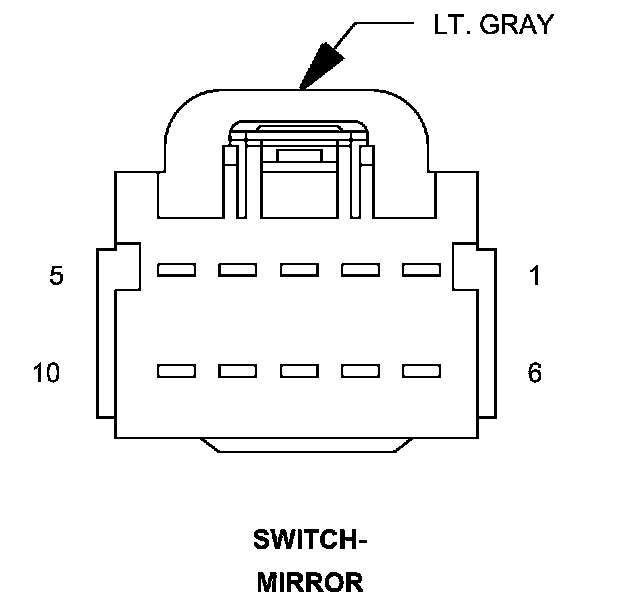

SWITCH-MIRROR - (FRONT DOOR) 10 WAY
