Body Control Module C3 (Instrument Panel) 34 Way
Body Control Module C3 (Instrument Panel) 34 Way

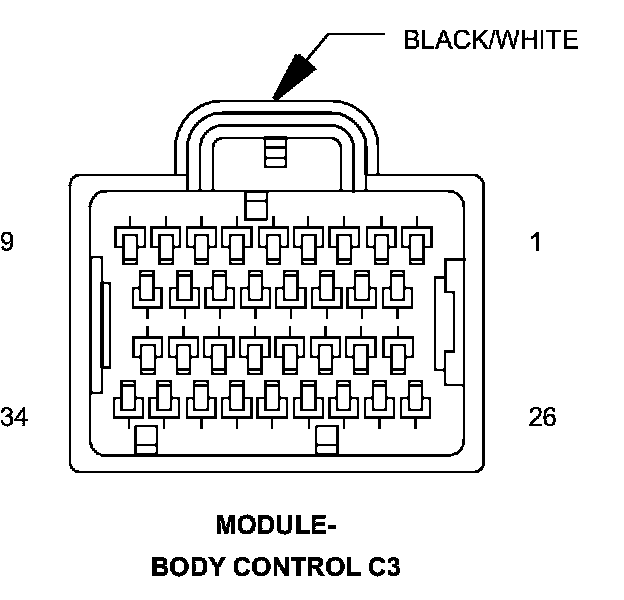

Connector C3 - (INSTRUMENT PANEL) 34 WAY

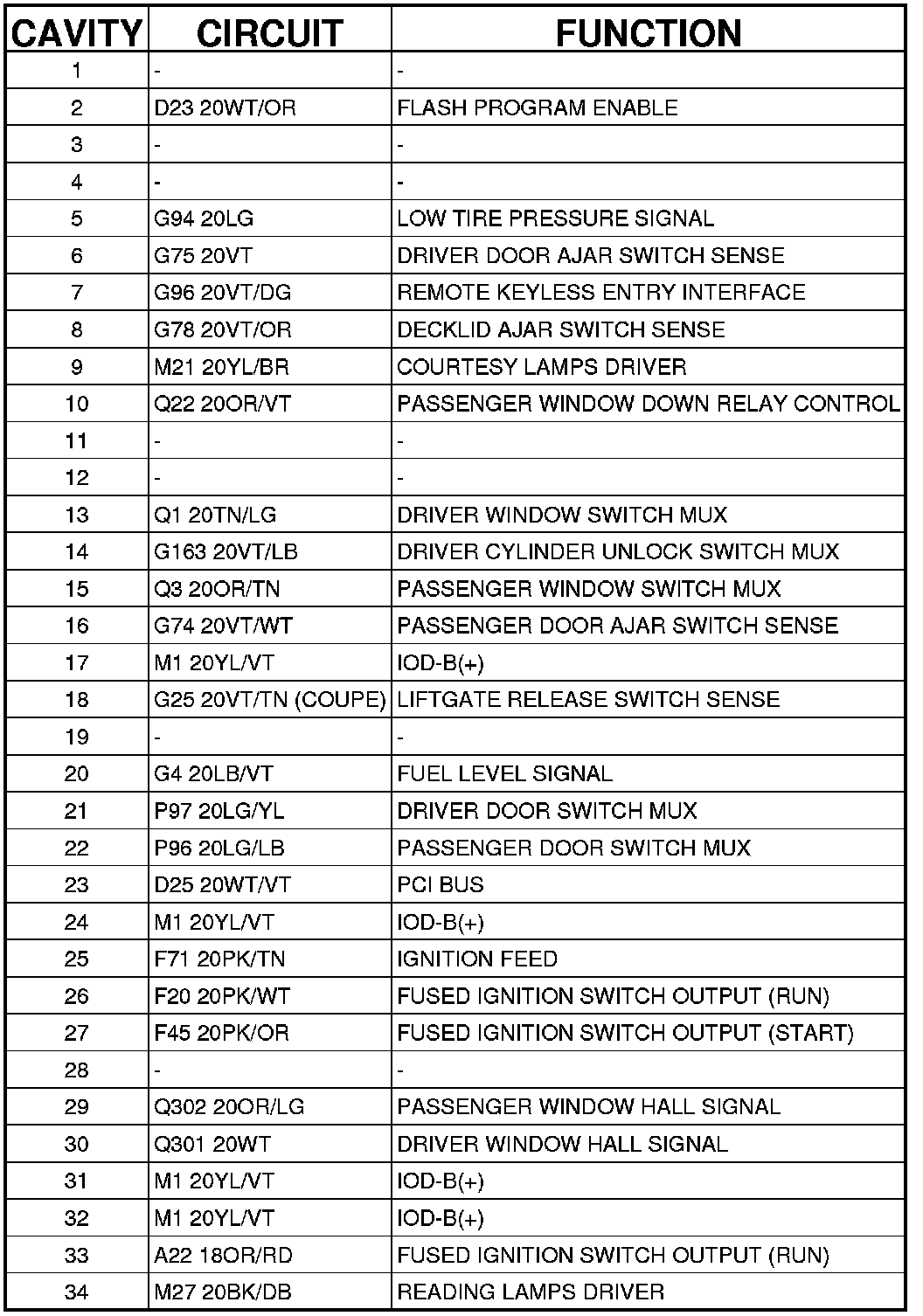

MODULE-BODY CONTROL - (INSTRUMENT PANEL) 34 WAY
