Combination Switch

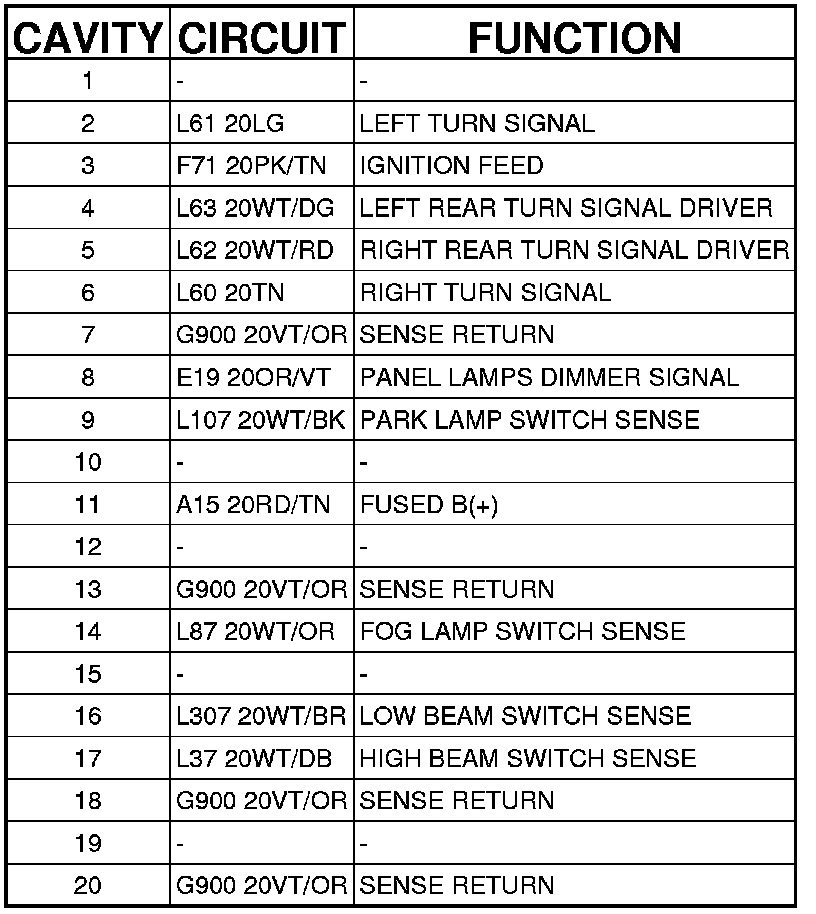

Connector - (INSTRUMENT PANEL) 20 WAY

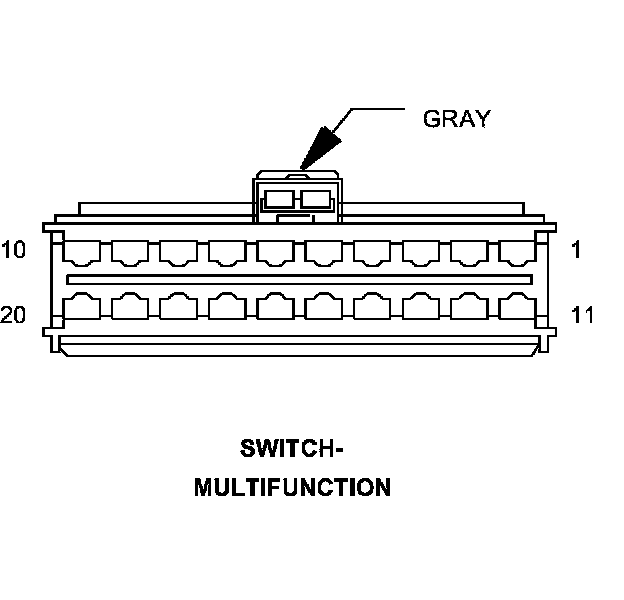

SWITCH-MULTIFUNCTION - (INSTRUMENT PANEL) 20 WAY
