Compressor Clutch Relay
Compressor Clutch Relay

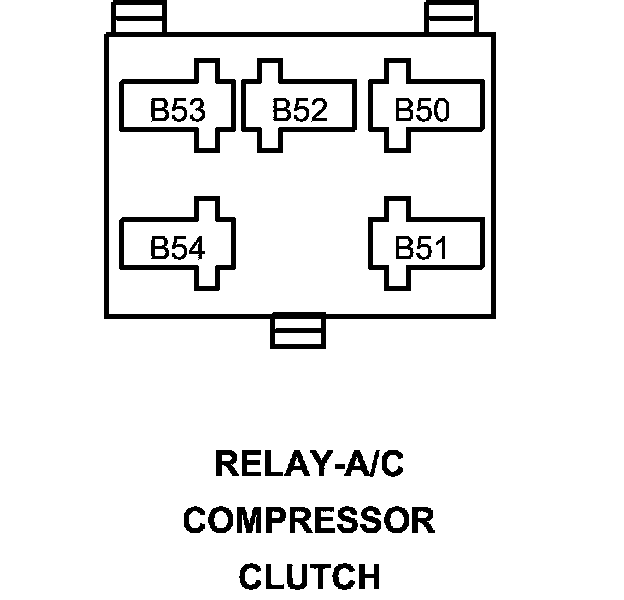

Connector - (IN PDC) 5 WAY

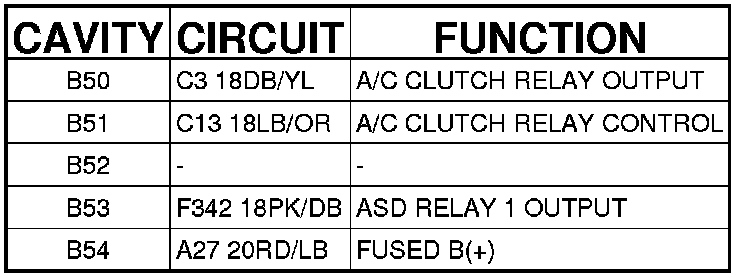

RELAY-A/C COMPRESSOR CLUTCH - (IN PDC) 5 WAY
