Electronic Brake Control Module
>>
Antilock Brake Module (Connector Side) 2 Way
Antilock Brake Module (Connector Side) 2 Way

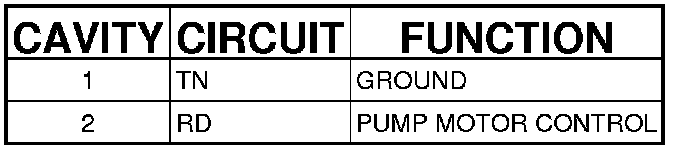

Connector (CONNECTOR SIDE) - 2 WAY

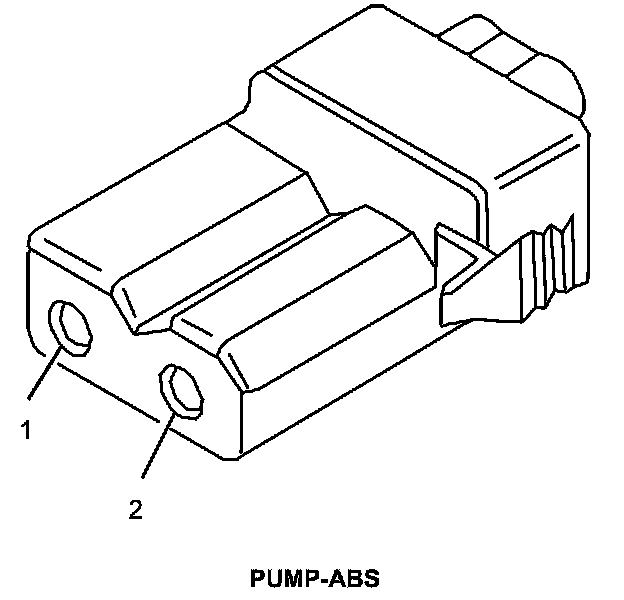

MODULE-ANTI-LOCK BRAKES (CONNECTOR SIDE) - 2 WAY
