Antilock Brake Module (Headlamp And Dash) 24 Way
Antilock Brake Module (Headlamp And Dash) 24 Way

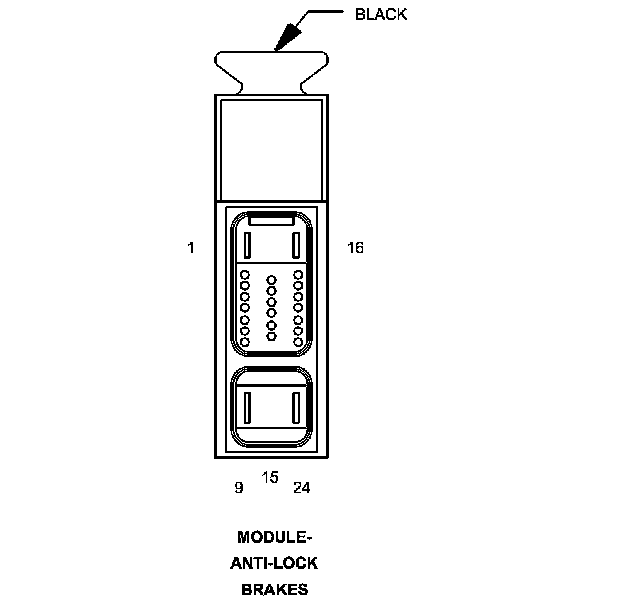

Connector - (HEADLAMP AND DASH) 24 WAY

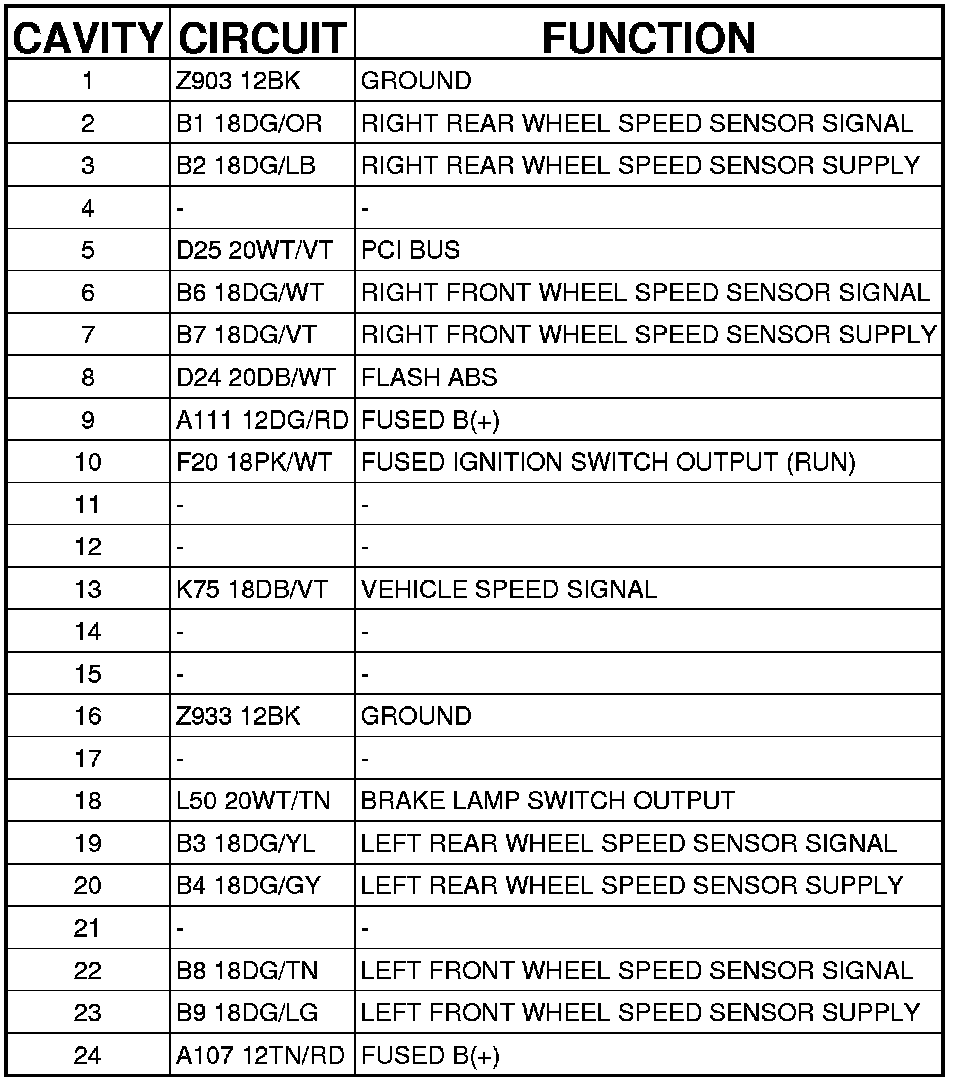

MODULE-ANTI-LOCK BRAKES - (HEADLAMP AND DASH) 24 WAY
