Security Lamp/Indicator
Security Lamp/Indicator

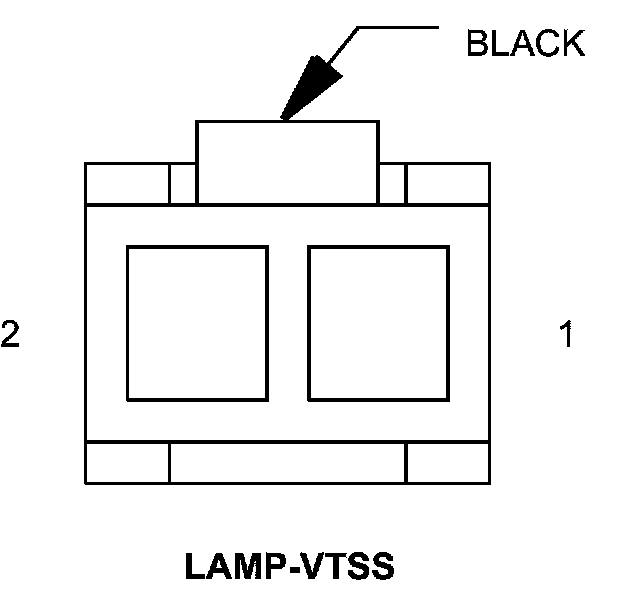

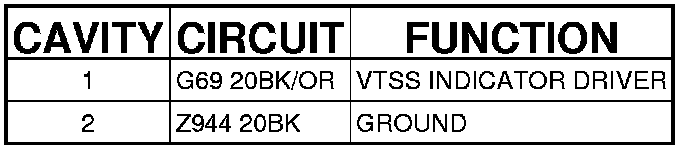

Connector - (INTERIOR MIRROR JUMPER) 2 WAY
LAMP-VTSS - (INTERIOR MIRROR JUMPER) 2 WAY
