Crankshaft Main Bearing
MAIN BEARINGCrankshaft Main Bearing Cap Inner Main Cap Bolts : 20 Nm + 1/4 turn (15 ft. lbs. + 1/4 turn)
Crankshaft Main Bearing Cap Outer Main Cap Bolts : 27 Nm + 1/4 turn (20 ft. lbs. + 1/4 turn)
Service and Repair
Main Bearing Diametrical Clearance 0.032 - 0.062 mm (0.0013 - 0.0024 in.)
Bearing Clearance (Wear Limit) 0.072 mm (0.0028 in.)

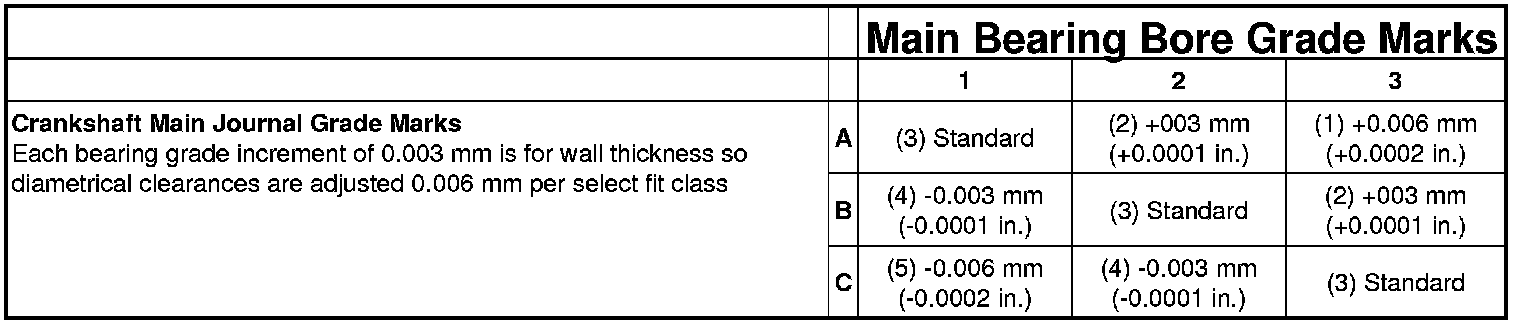

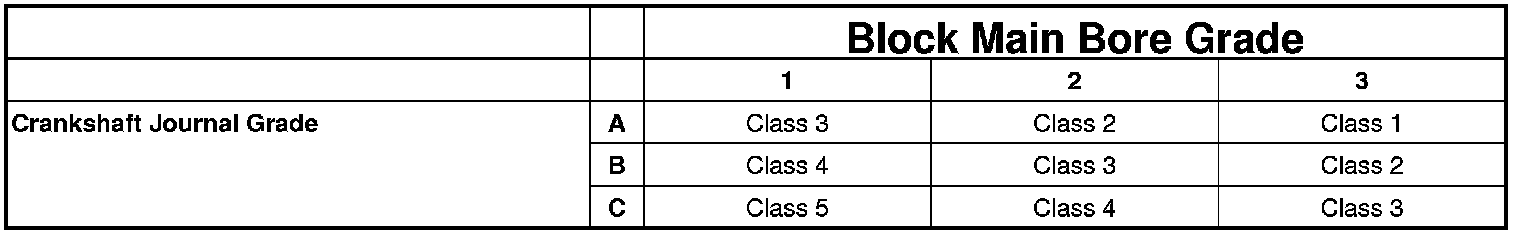

Main Bearing Selection Chart

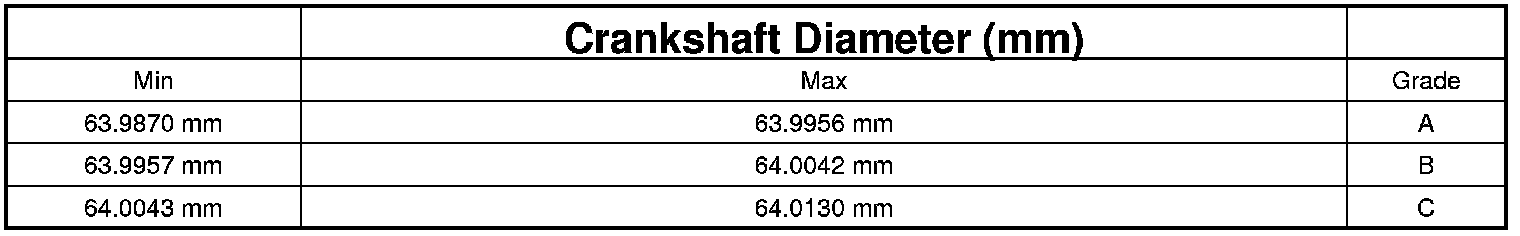

CHART 1

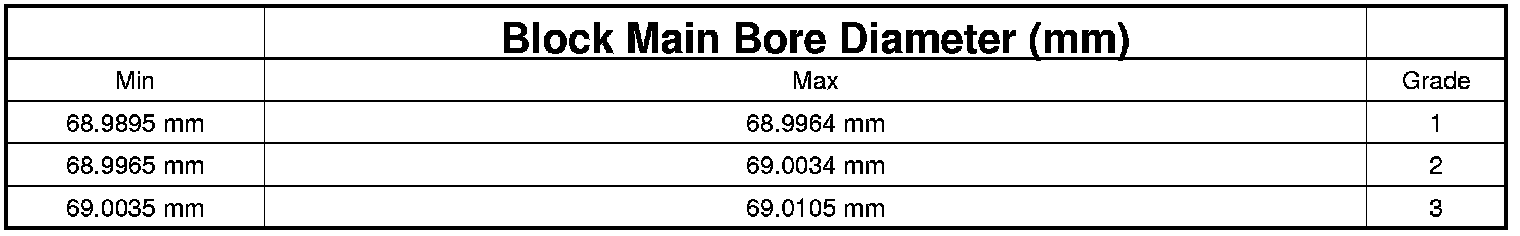

CHART 2
