Actuator

Fig. 12 Actuator Location W/Renix System:

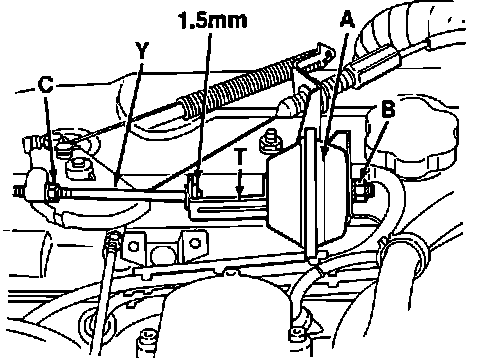

Fig. 13 Actuator Adjustment W/Renix System:

1. Remove retaining nuts (B) and (C).
2. Disconnect vacuum line hose, then remove the actuator.
3. Reverse procedure to install. Adjust as follows:
a. Measure clearance between rod (Y) and arm (T).
b. Clearance should be 0.06 inch.
c. If clearance is not as described, adjust by changing length of rod (Y).
d. Loosen or tighten nut (C) on end of rod (Y).
e. Connect vacuum hose to actuator.
