Cruise Control Vacuum Solenoid: Service and Repair

Renix System Regulator Solenoid

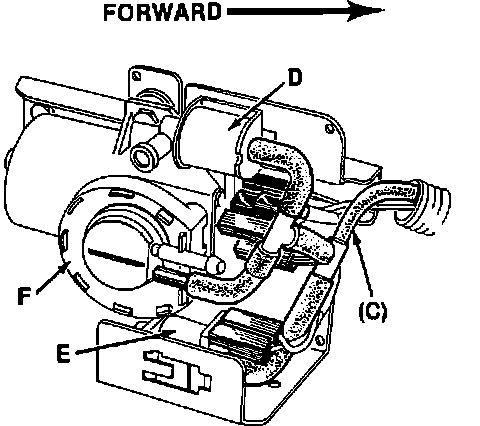

Fig. 11 Safety Solenoid Location W/Renix System:

1. Remove servo control as previously described.
2. Disconnect vacuum hose and electrical connector and pull solenoid away from the servo unit, (E).
3. Reverse procedure to install.
