Toe Adjustment

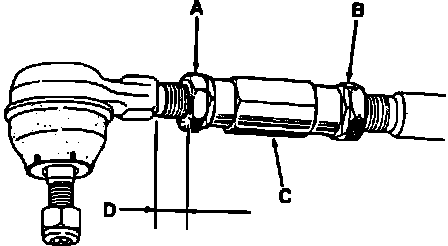

Fig. 2 Toe-out Adjustment:

1. Loosen tie rod locknut (A), and steering arm locknut (B). Locknut (A) has righthand threads. Locknut (B) has lefthand threads.
2. Turn each adjusting sleeve (C) inward or outward to obtain the required toe-out reading.
3. The number of threads (D) visible at each tie rod end should be approximately the same.
4. Torque locknuts (A) and (B) to 26 ft. lbs. Do not allow the adjusting sleeve (C) to rotate while tightening the locknuts.
