Air Outlet - Installation

INSTALLATION

CENTER OUTLETS

1. Position the center air outlet (4) to the instrument panel (2)
2. Engage the two retaining tabs (1 and 3) that secure the top of the outlet to the instrument panel. Make sure the retaining tabs are fully engaged.





3. Install the two screws (2 and 4) that secure the bottom of the center air outlet (1) to the instrument panel (3). Tighten the screws securely.
4. Install the radio Radio - Installation.
5. Reconnect the negative battery cable.

DEMISTER OUTLETS

NOTE: Right side outlet shown. Left side outlet similar.

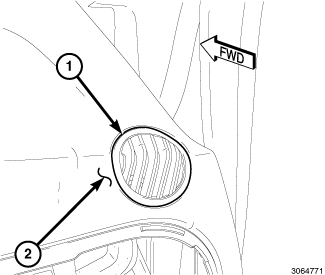

1. Position the demister air outlet (1) being serviced into the opening in the instrument panel cover (2).
2. Engage the retaining tabs that secure the demister outlet to the instrument panel cover. Make sure the retaining tabs are fully engaged.

DRIVER OUTLET

NOTE: Take the proper precautions to protect the instrument panel bezel from cosmetic damage.

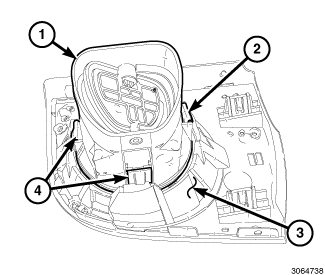

1. Position the driver side air outlet (1) into the instrument panel bezel (3).
2. Engage the three metal retaining tabs (2 and 4) that secure the air outlet to the bezel. Make sure the retaining tabs are fully engaged.
3. Install the driver side instrument panel bezel.

PASSENGER OUTLET

NOTE: Take the proper precautions to protect the instrument panel bezel from cosmetic damage.

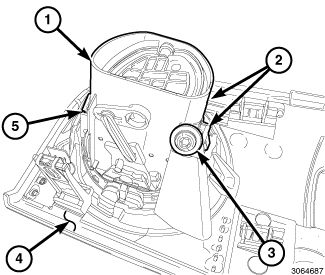

1. Position the passenger side air outlet (1) into the instrument panel bezel (4).
2. Engage the three metal retaining tabs (2 and 5) that secure the air outlet to the bezel. Make sure the retaining tabs are fully engaged.
3. Install the screw (3) that secures the air outlet to the instrument panel bezel. Tighten the screw securely.
4. Install the passenger side instrument panel bezel.
