Main Climate Control

REMOVAL
1. Disconnect the battery.

CAUTION: The slider knobs are illuminated using a LEDs. Use care not to damage them when removing the slider knobs.

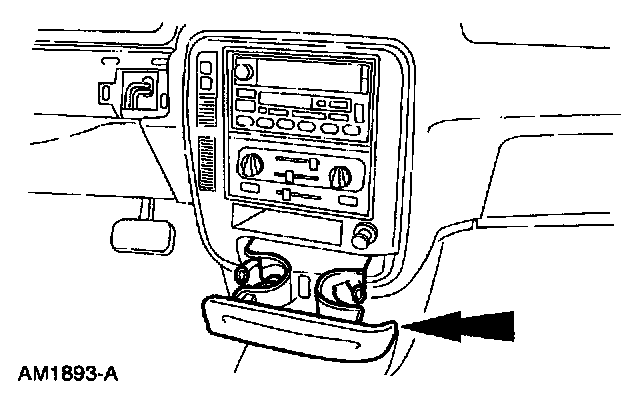

2. Remove the ash receptacle.
3. Remove the audio unit. For additional information, refer to Radio, Stereo, and Compact Disc.

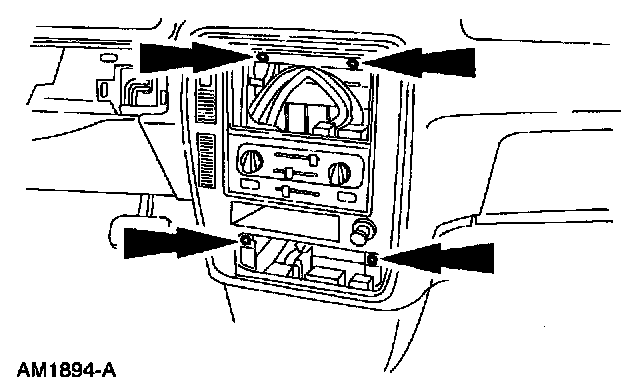

4. Remove the screws.

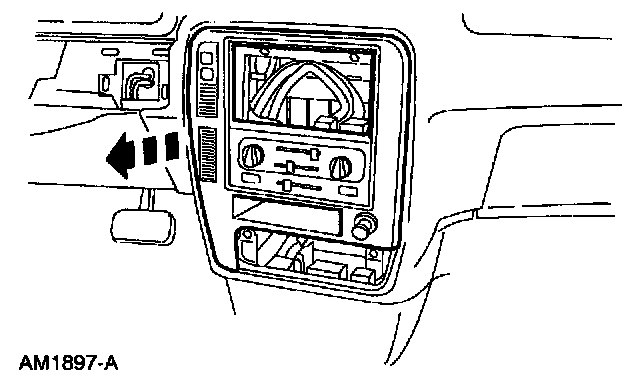

5. Unsnap the panel.

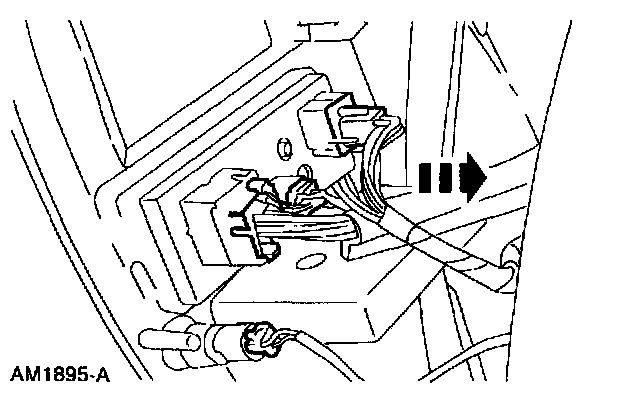

6. Disconnect the connectors.







7. Remove the control assembly.

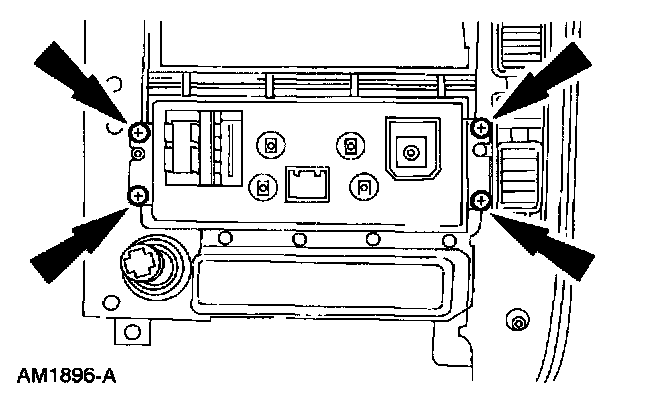

^ Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
