Home >> Ford Truck >> 2001 >> Ranger 2WD V6-3.0L VIN V Flex Fuel >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Locations

Evaporative Emissions System: Locations

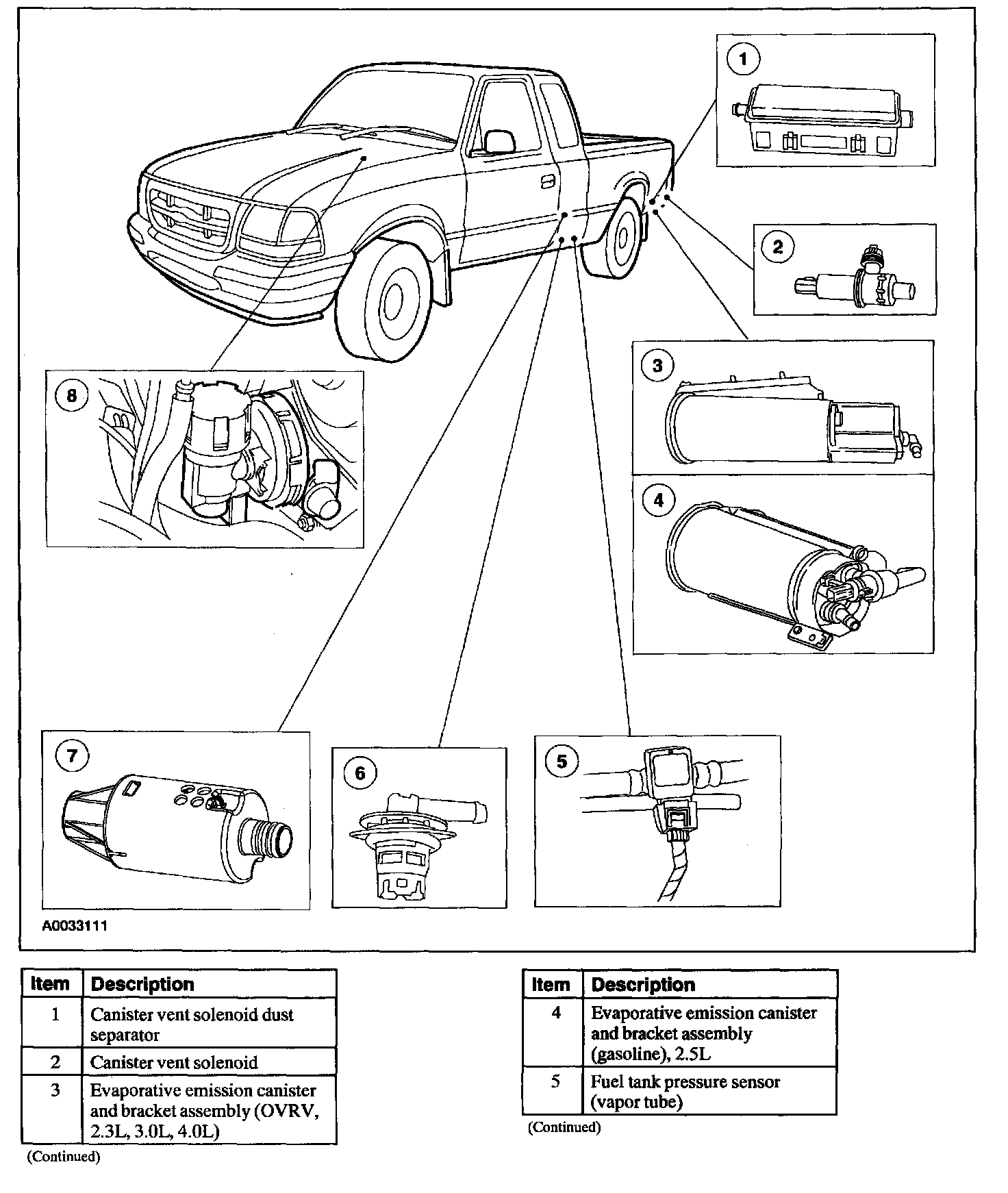

Evaporative Emissions, Part 1:



Evaporative Emissions, Part 2:
