Power Distribution Diagrams

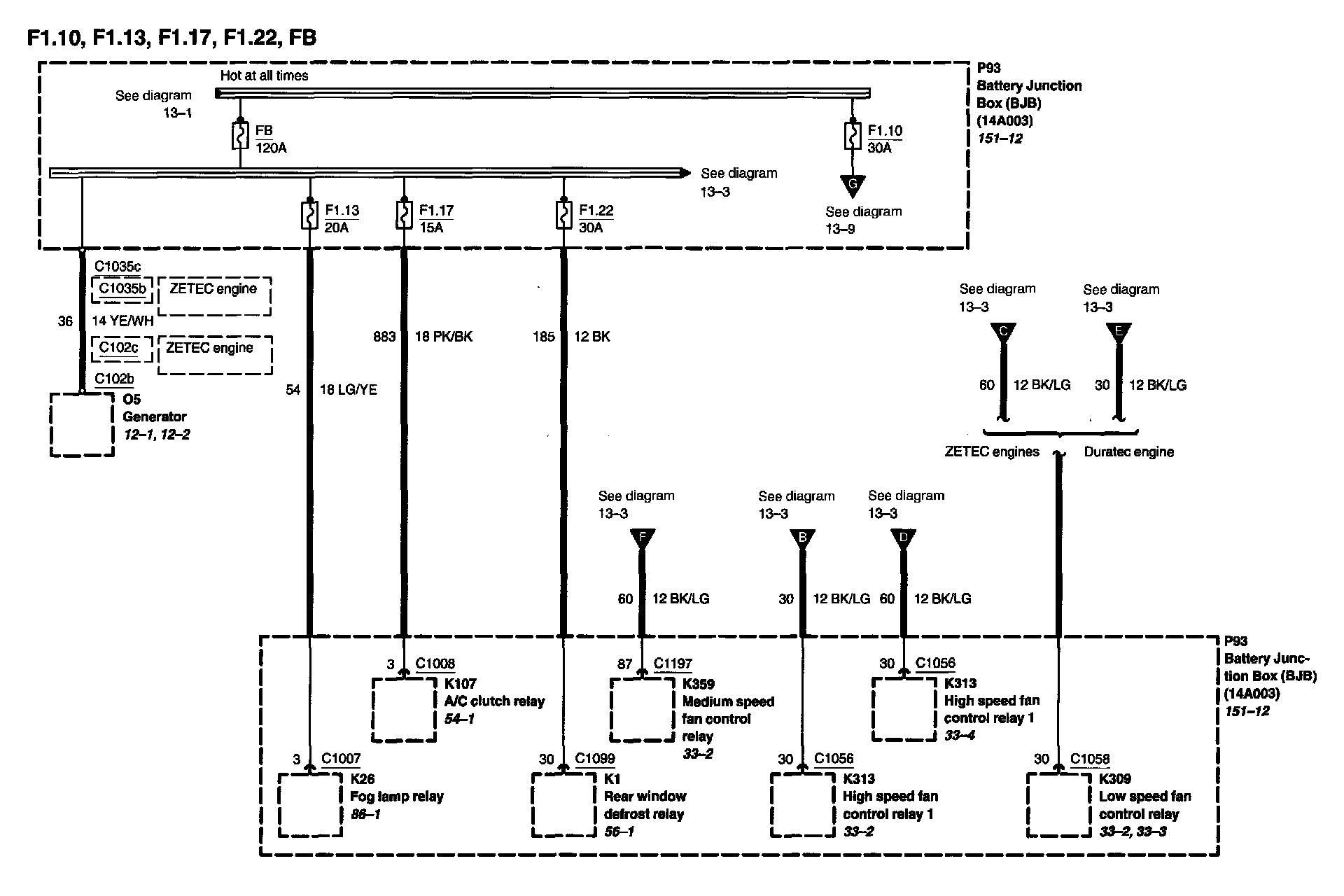

Diagram 13-1:






Diagram 13-2:






Diagram 13-3:






Diagram 13-4:






Diagram 13-5:






Diagram 13-6:






Diagram 13-7:






Diagram 13-8:






Diagram 13-9:






Diagram 13-10:






Diagram 13-11:






Diagram 13-12:






Diagram 13-14:
