Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Remove the accelerator control splash shield.







2. Disconnect the speed control cable end from the throttle nail head by pushing upward.

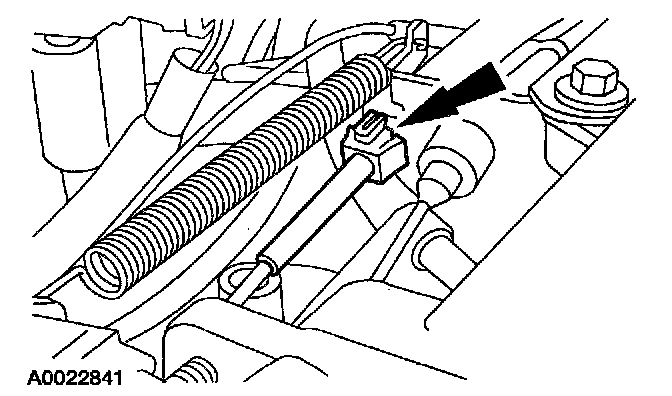

3. Depress the locking tabs and remove the speed control cable from the accelerator cable bracket.







4. Remove the speed control servo from the inner fender.
1 Disconnect the electrical connector.
2 Remove the speed control servo bracket mounting bolts.







5. Depress the locking tab and rotate the speed control cable cap to remove.







6. Remove the speed control cable.
1 Gently push the retaining spring.
2 Disconnect the speed control cable slug from the speed control servo pulley.

INSTALLATION







1. To install, reverse the removal procedure.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.
