Test Q: Temperature Controls Do Not Operate Using Aux Controls
Test Q: Temperature Controls Do Not Operate Using Aux Controls

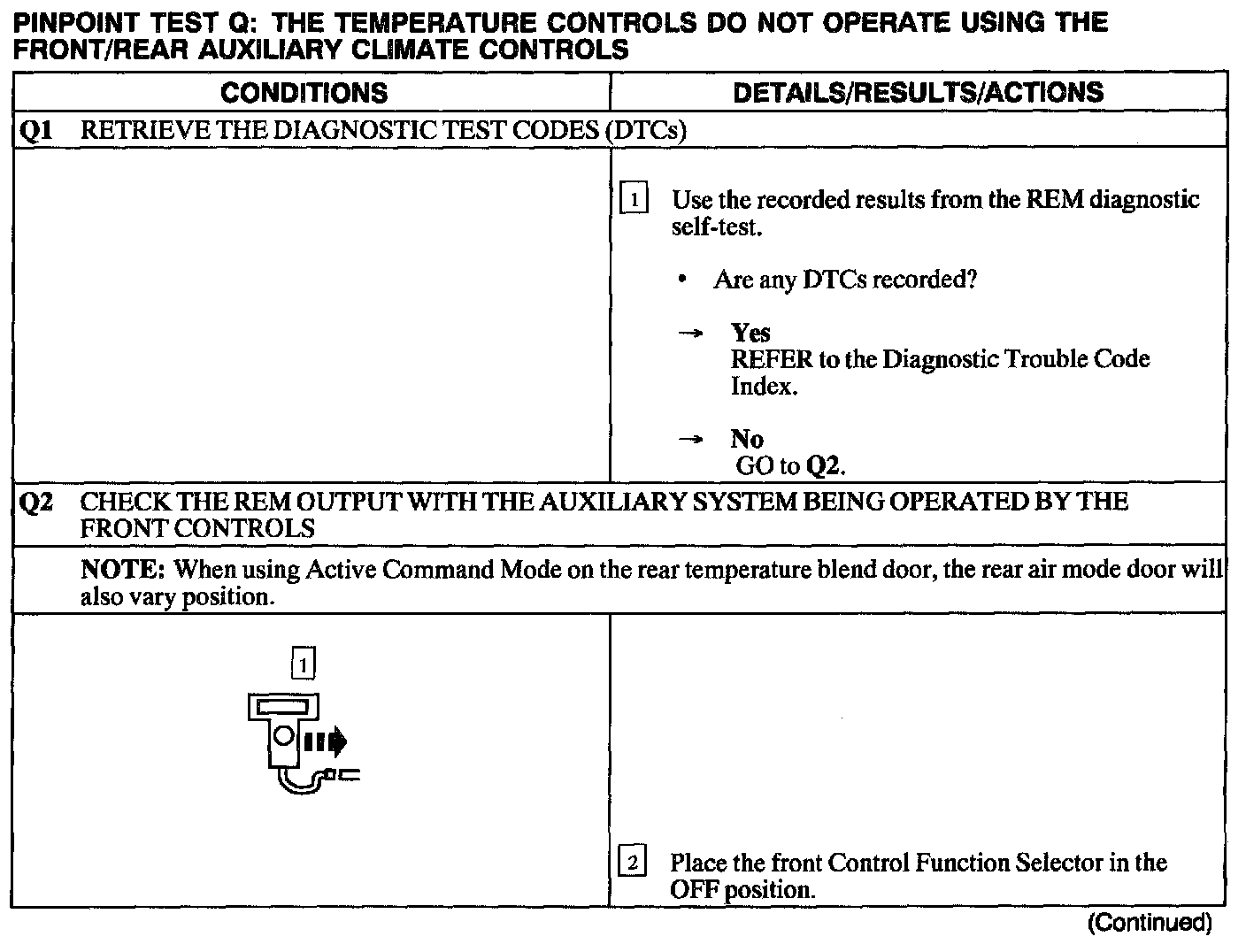

Q1 - Q2:

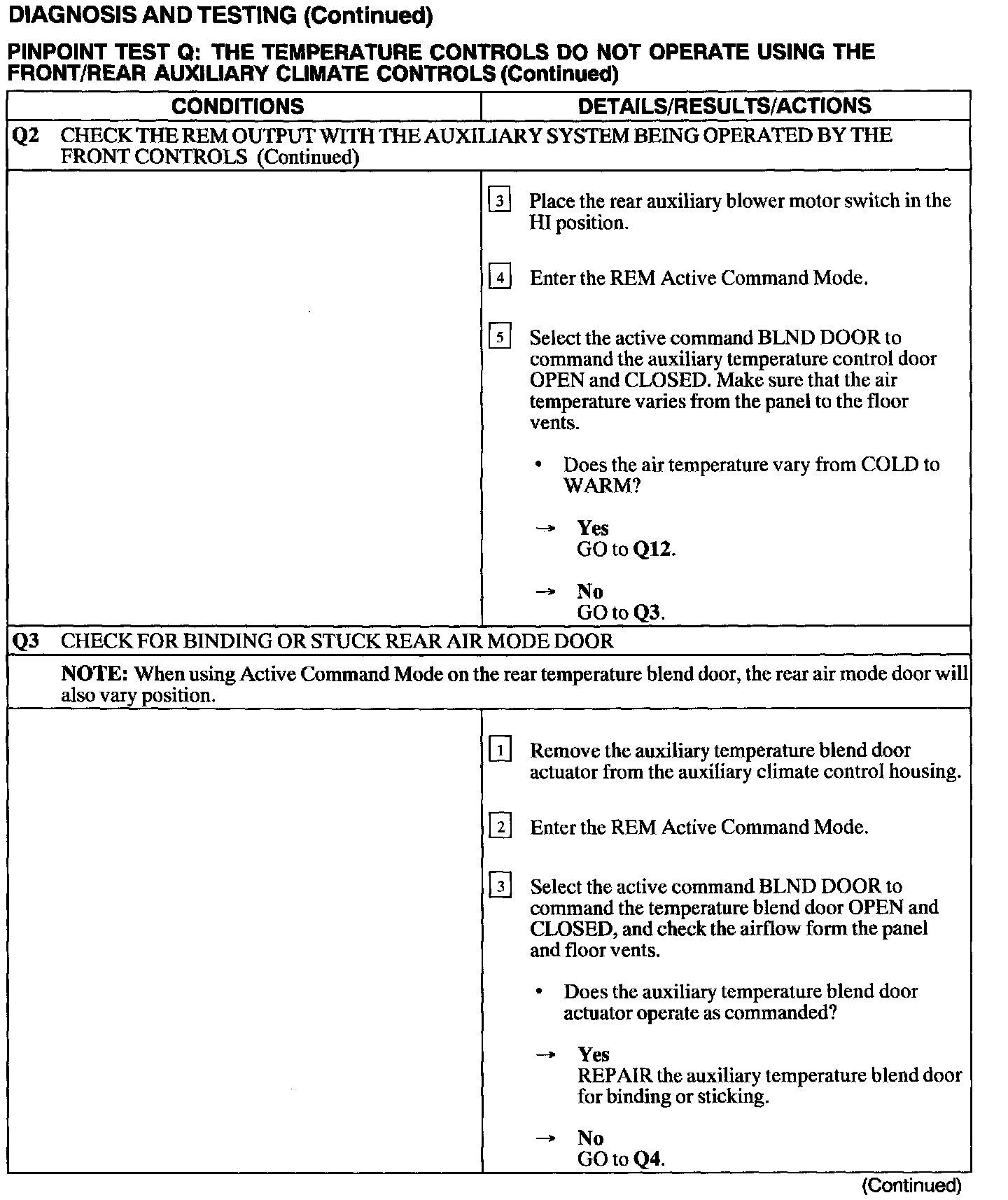

Q2 - Q3:

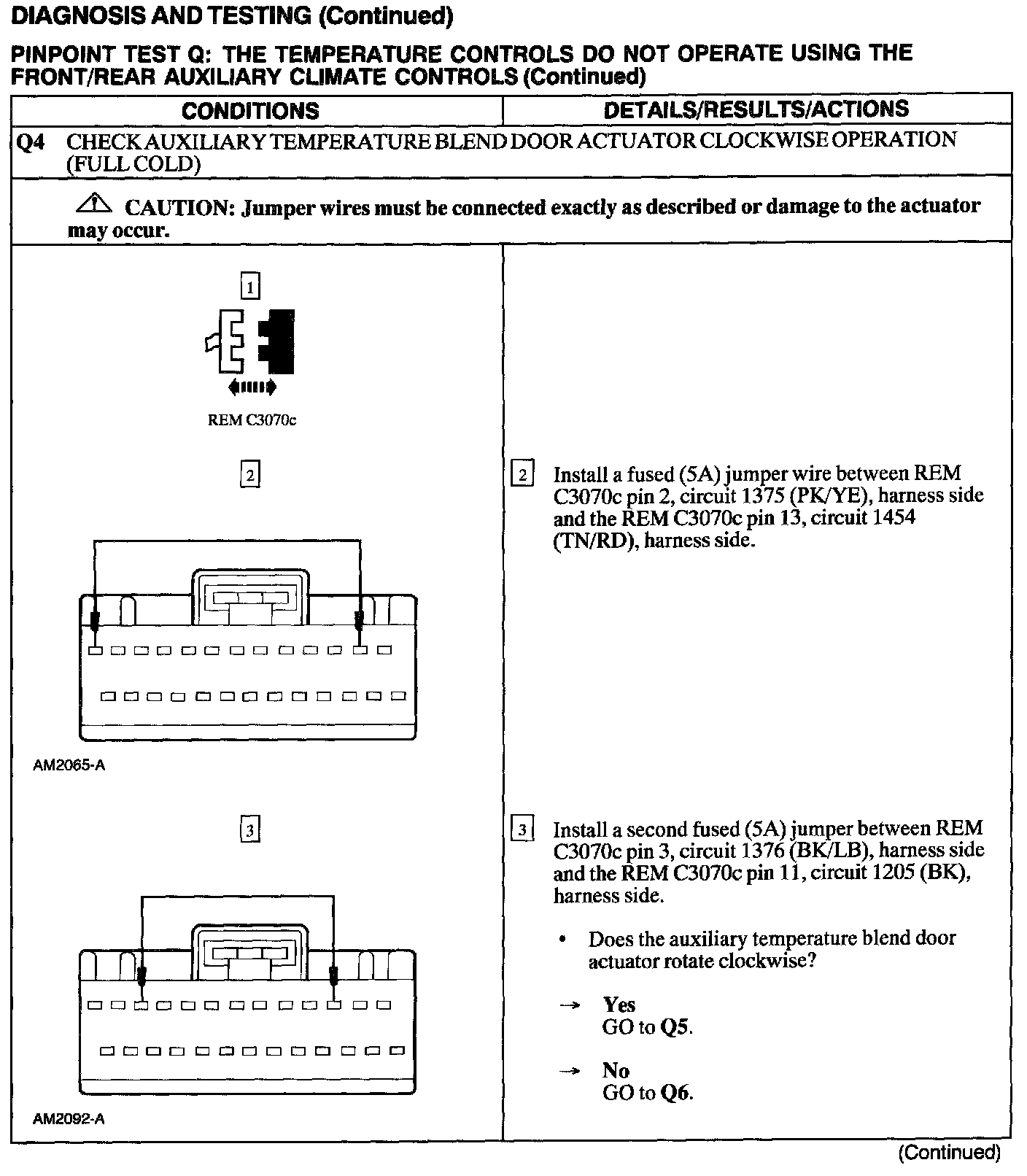

Q4:

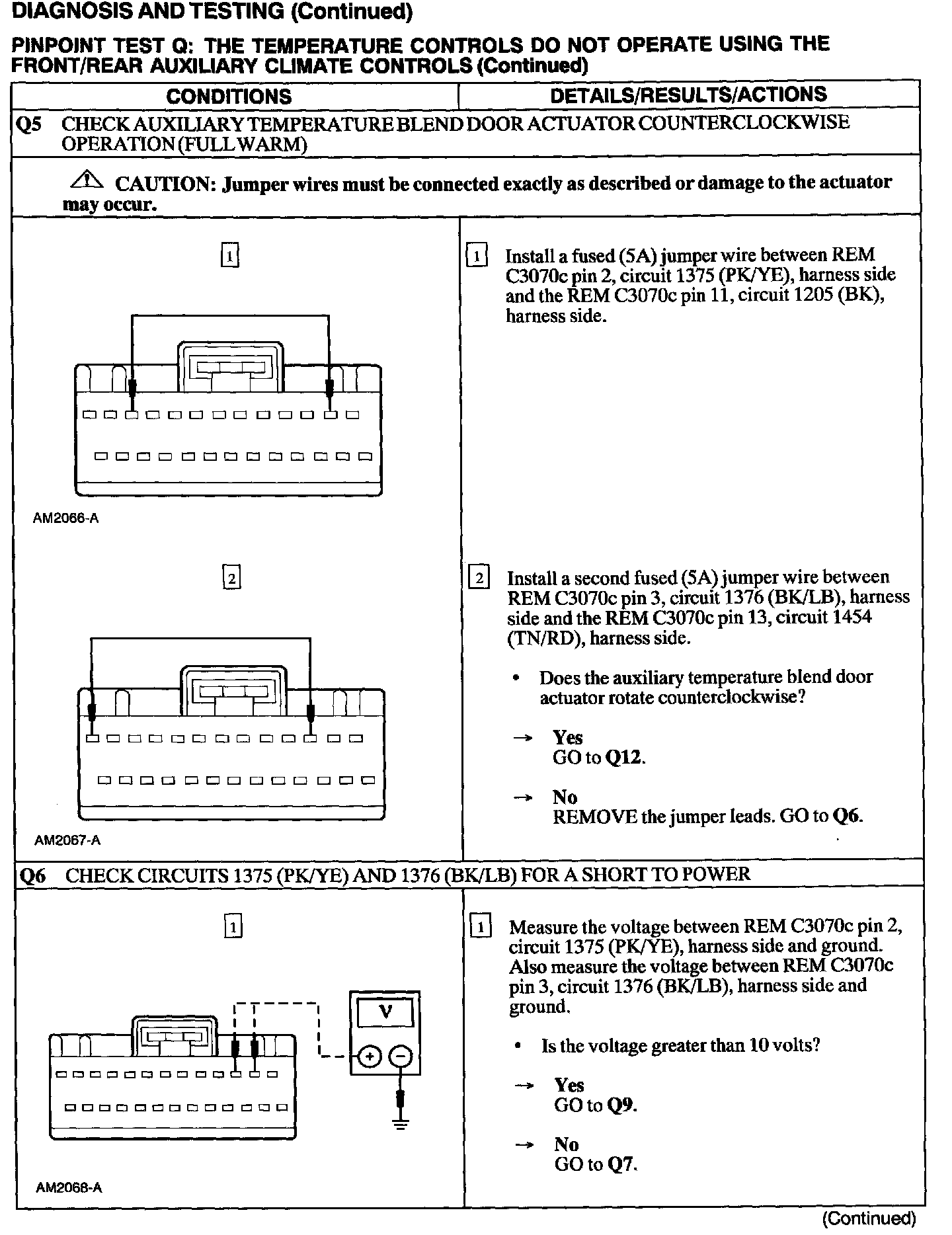

Q5 - Q6:

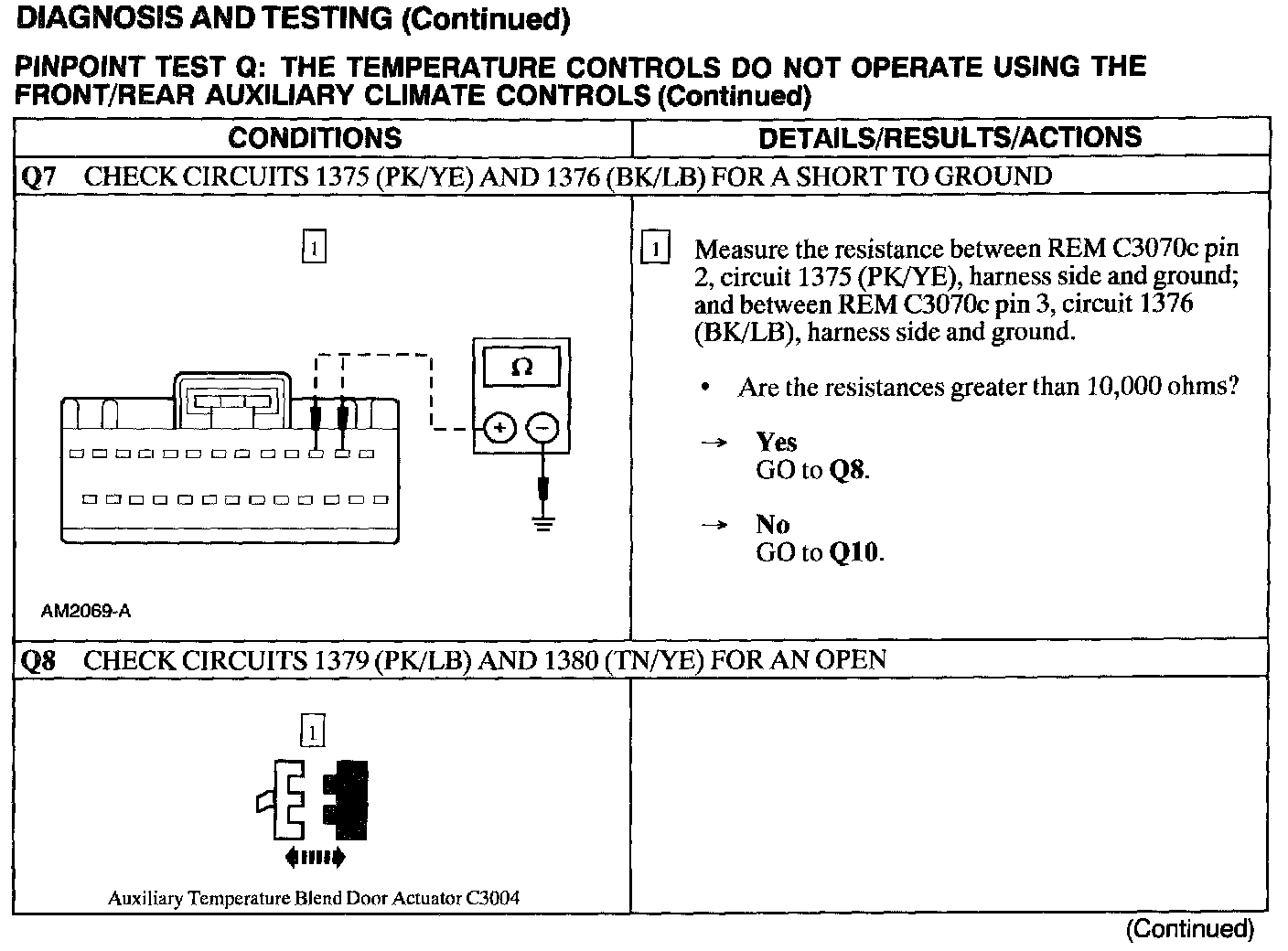

Q7 - Q8:

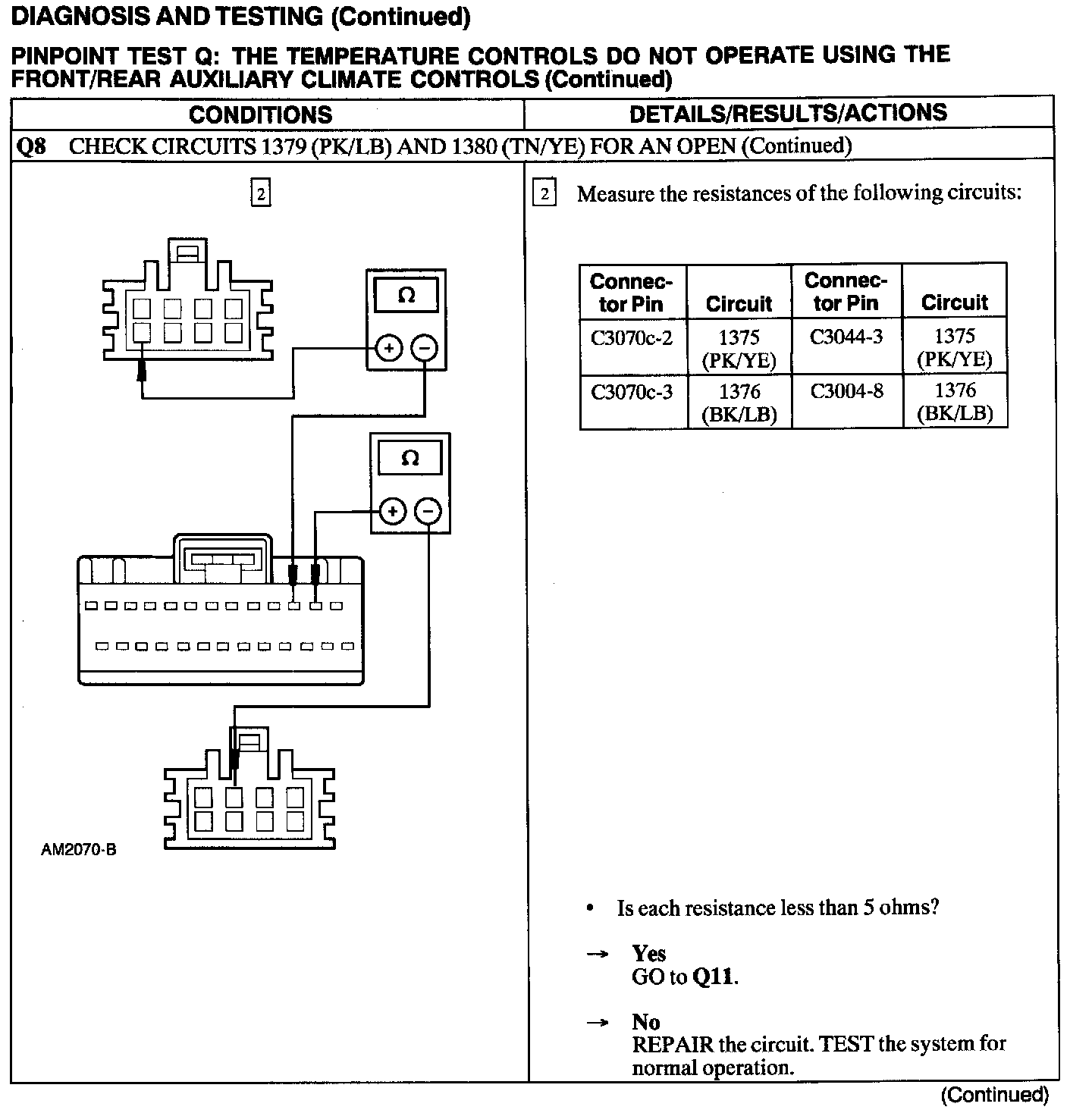

Q8:

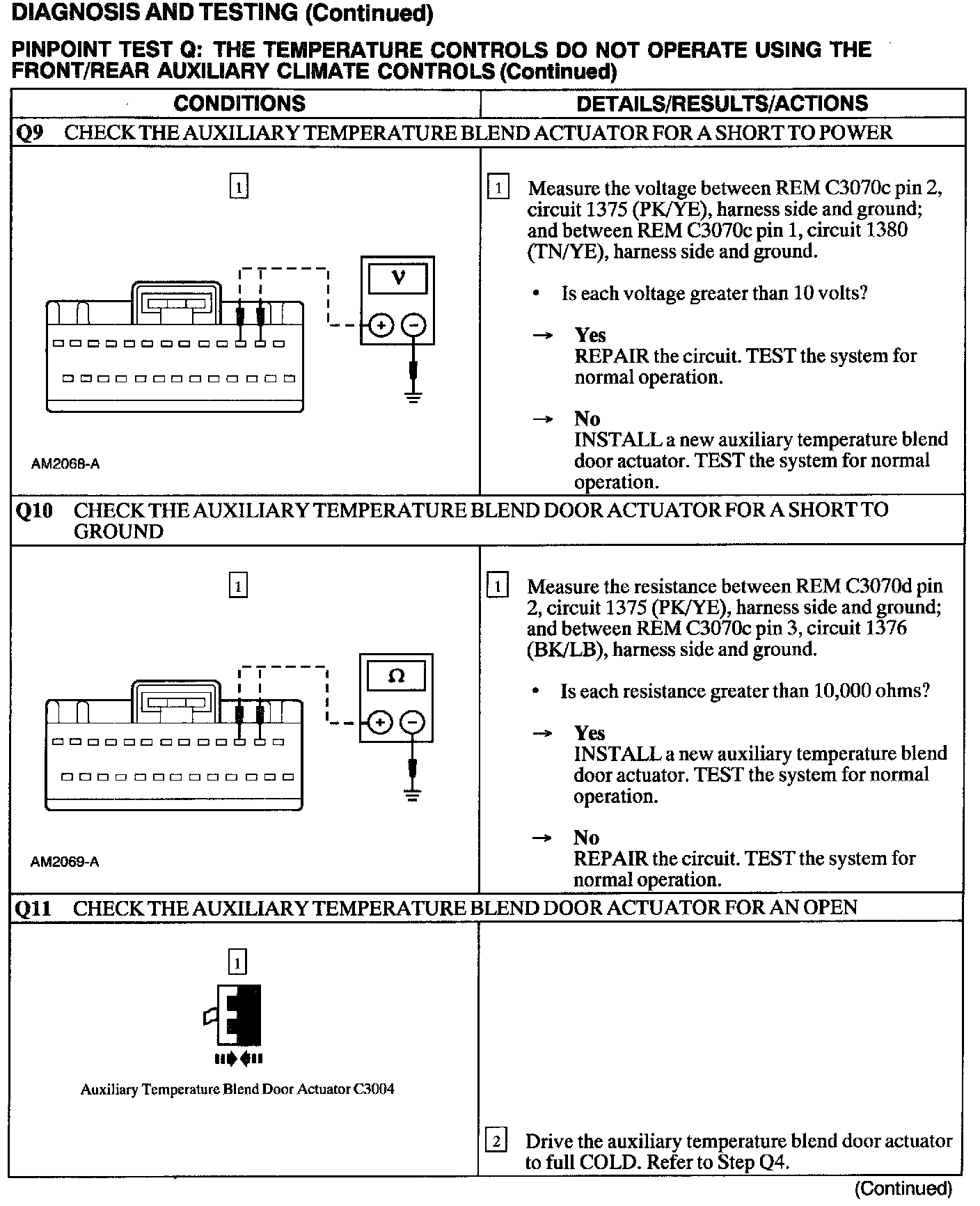

Q9 - Q11:

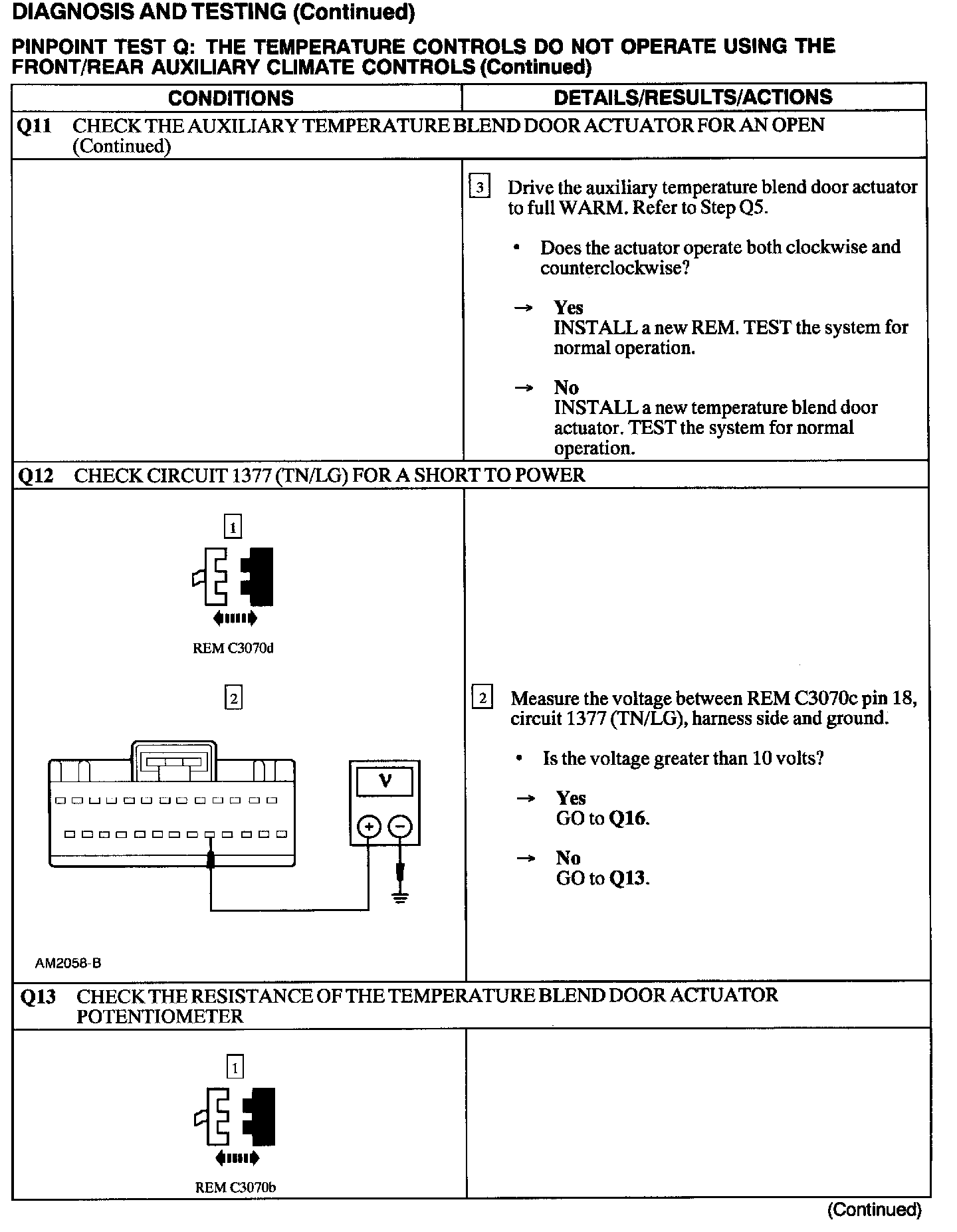

Q11 - Q13:

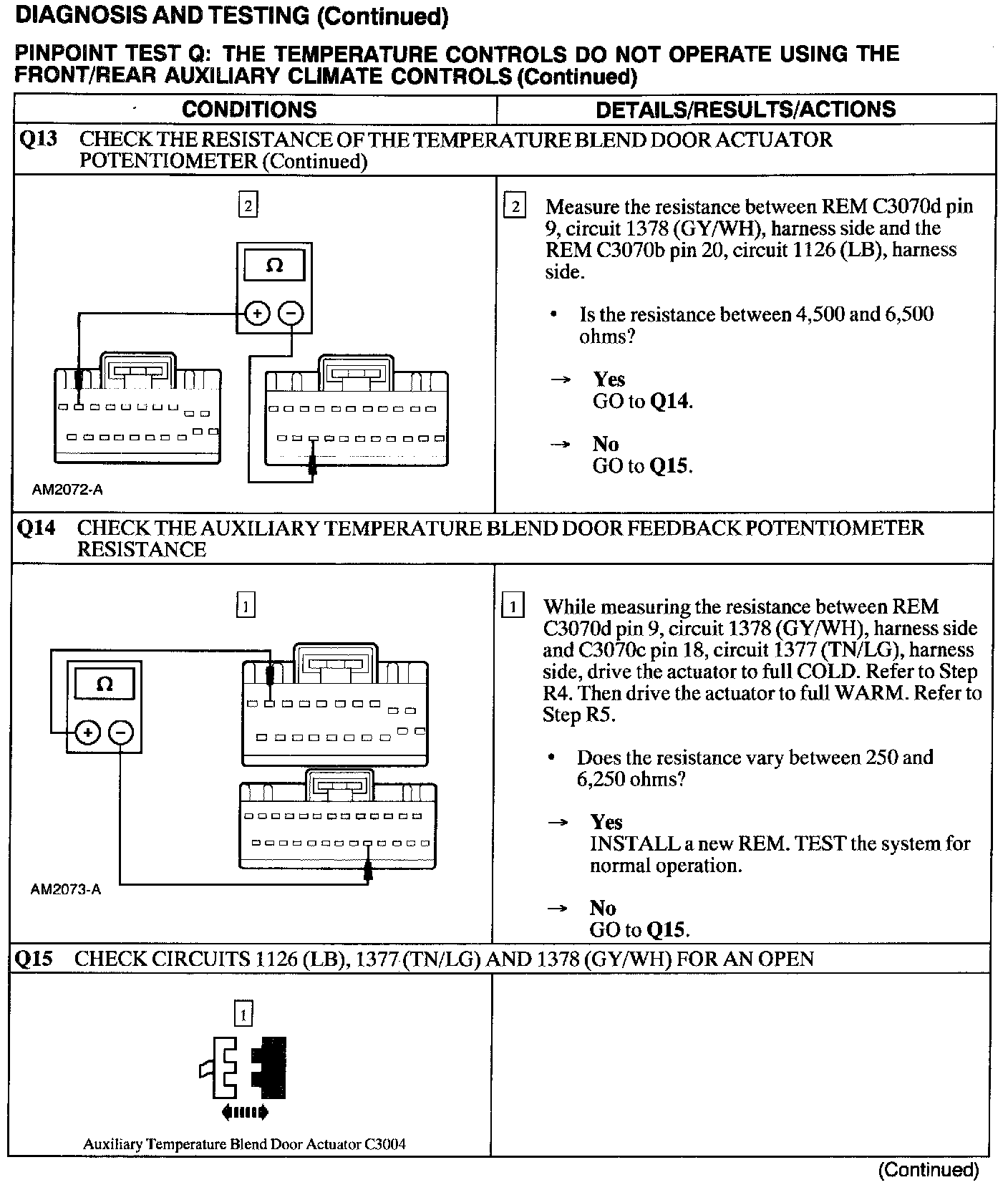

Q13 - Q15:

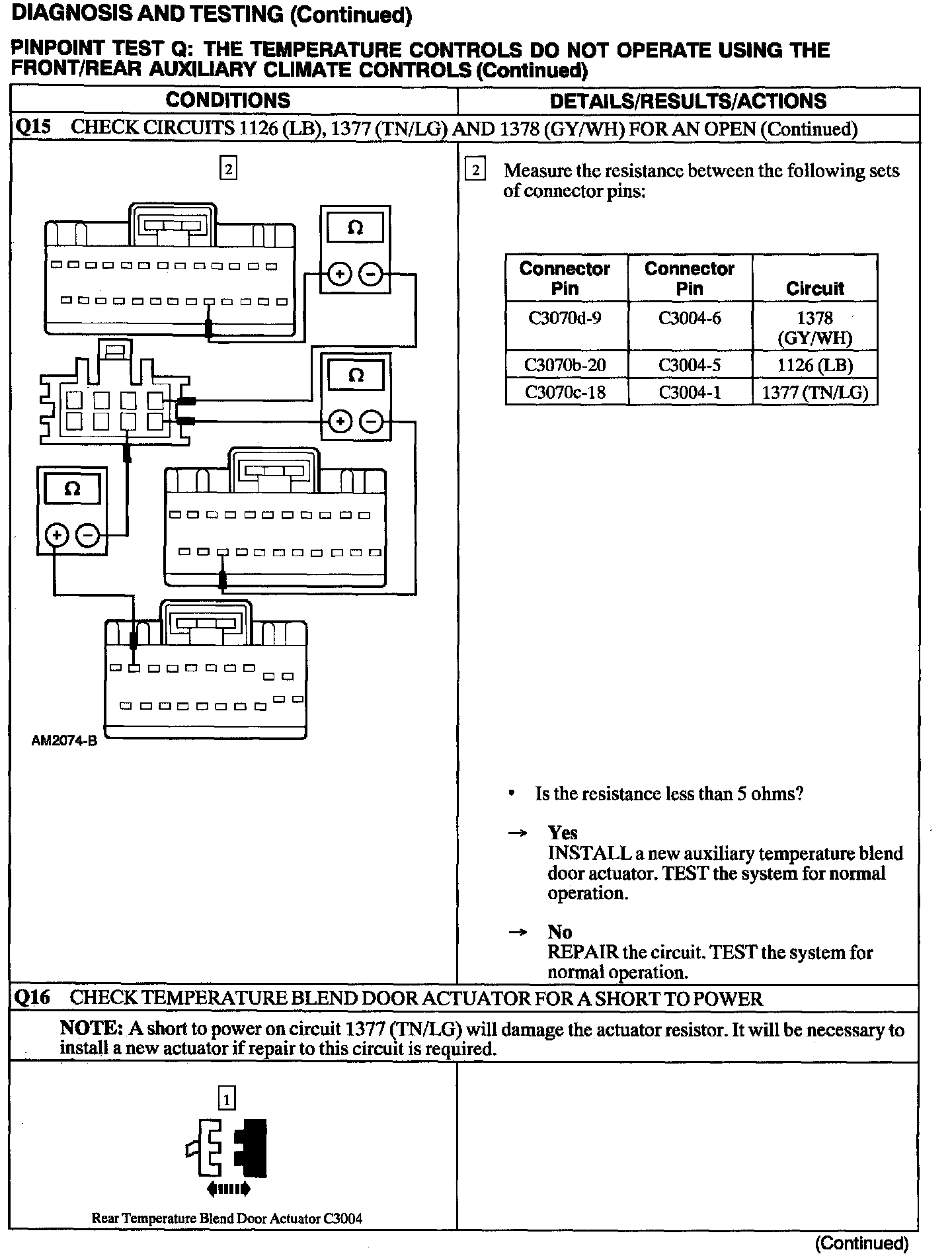

Q15 - Q16:

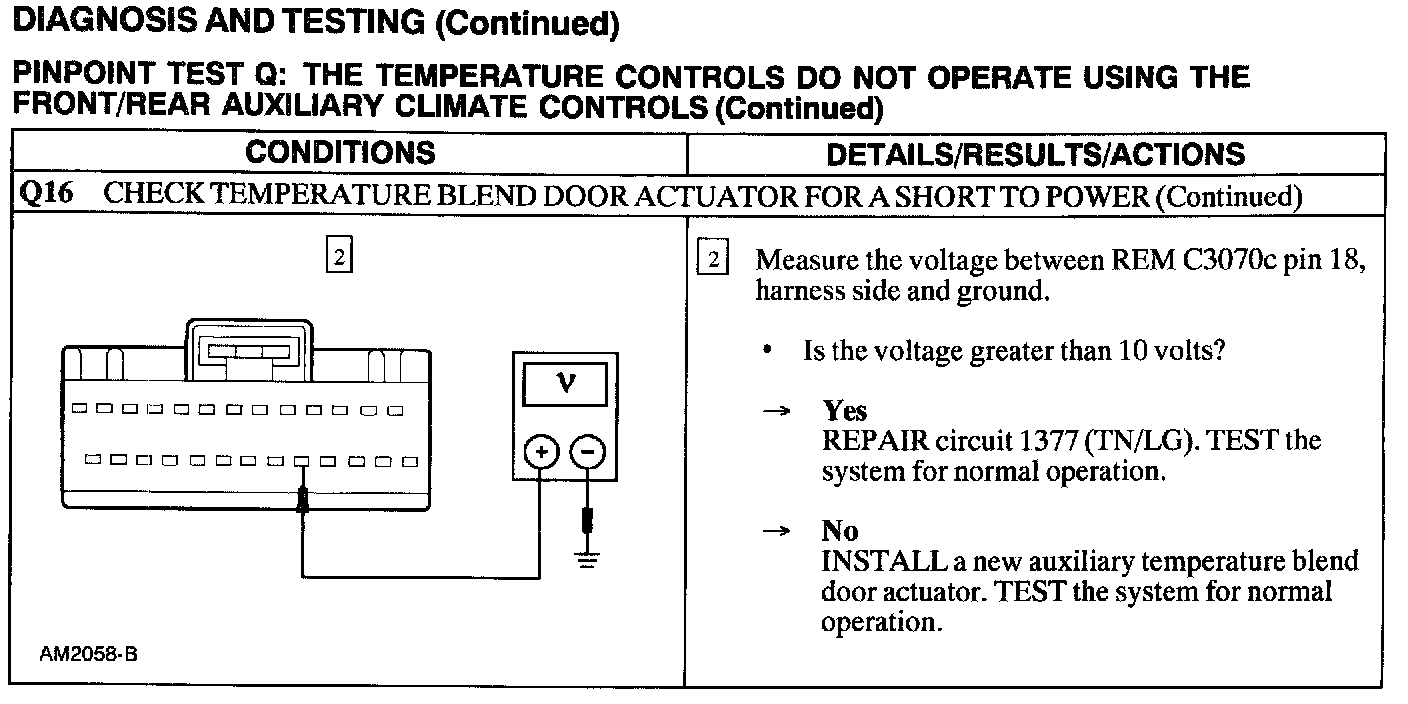

Q16:
