Oil Pressure Sensor

REMOVAL
1. Remove the degas bottle.

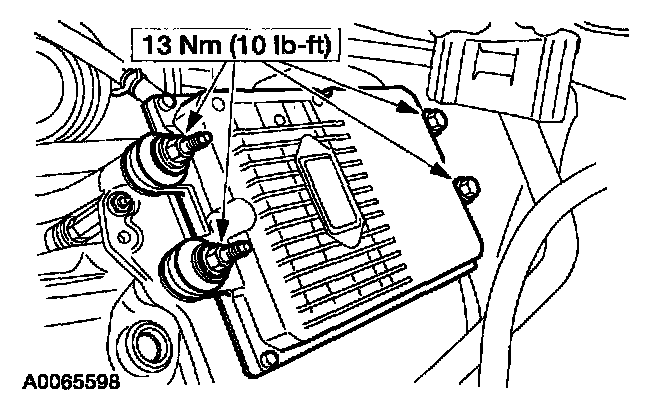

2. Remove the injector driver module mounting bolts.

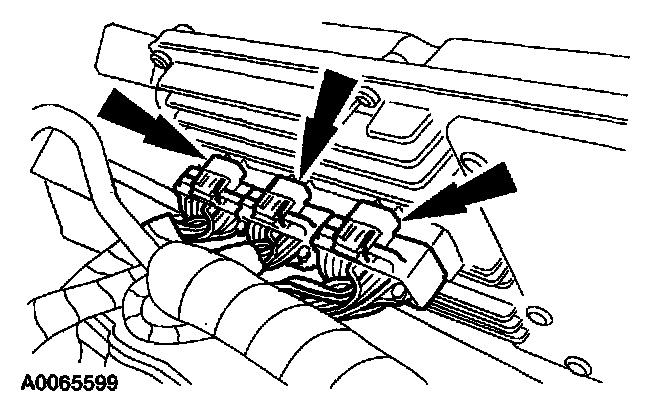

3. Position out and disconnect the injector driver module. Remove the injector driver module.

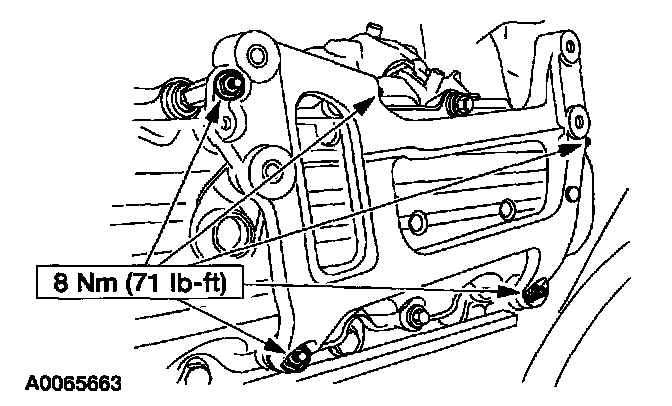

4. Remove the injector driver module mounting bracket.

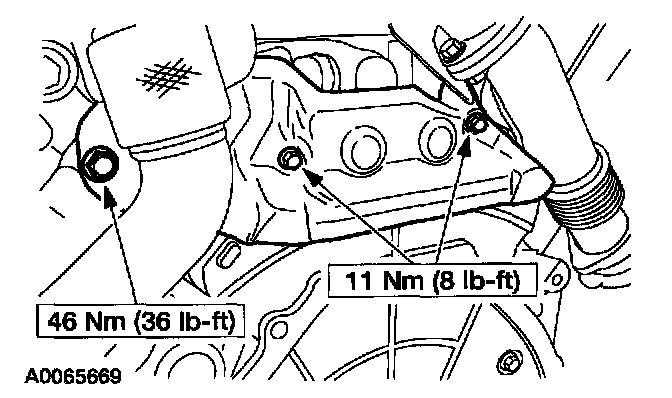

5. Remove the turbocharger heat shield.

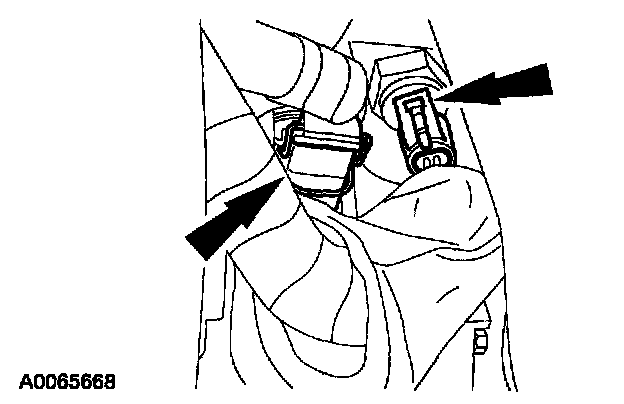

6. Disconnect the oil pressure regulator and oil pressure sensor electrical connectors.

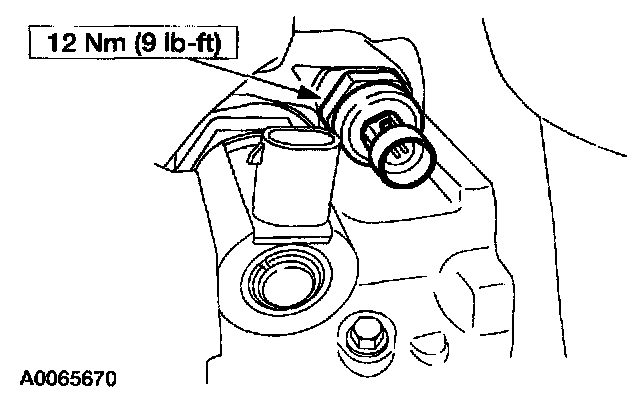

7. Remove the oil pressure sensor.

INSTALLATION
1. To install, reverse the removal procedure.
