Front Electronic Module (FEM)

FRONT ELECTRONIC MODULE (FEM)

REMOVAL

1. CAUTION: Prior to removal of the FEM, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed.

Disconnect the battery ground cable.

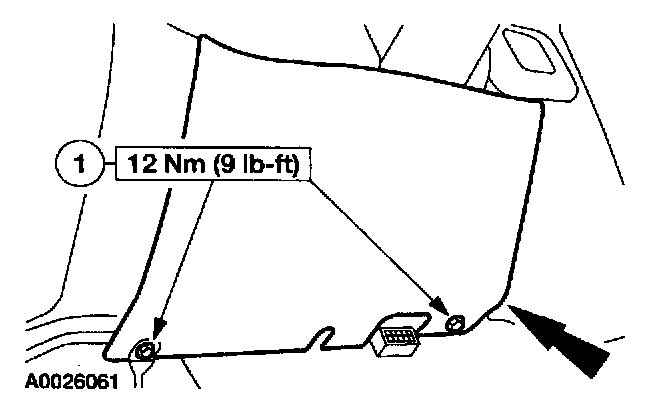

2. Remove the instrument panel lower steering column opening cover.
1 Remove the bolts.

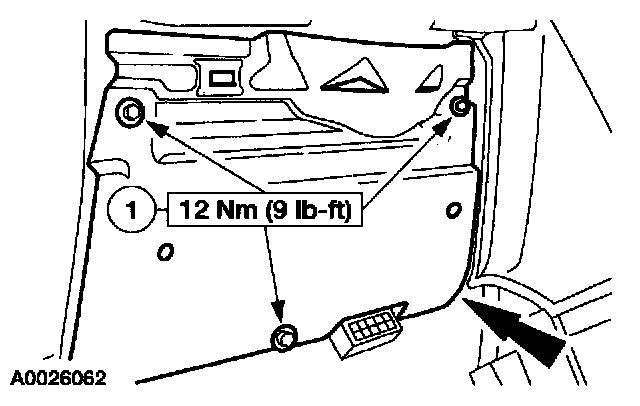

3. Remove the instrument panel opening cover reinforcement.
1 Remove the bolts.







4. Remove the front electronic module (FEM).
1 Disconnect the five electrical connectors.
2 Remove the three bolts.

INSTALLATION

1. CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module.

To install, reverse the removal procedure.
