Front Electronic Module (FEM)

PINPOINT TEST A: NO COMMUNICATION WITH THE FRONT ELECTRONIC CONTROL MODULE (FEM)

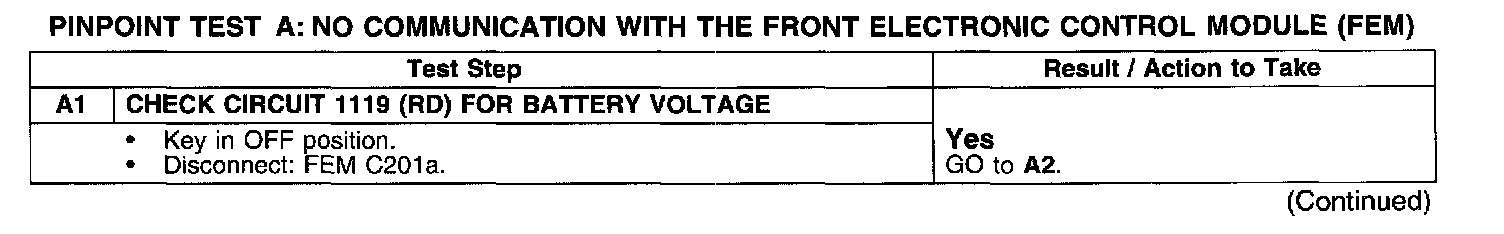

Test A1:

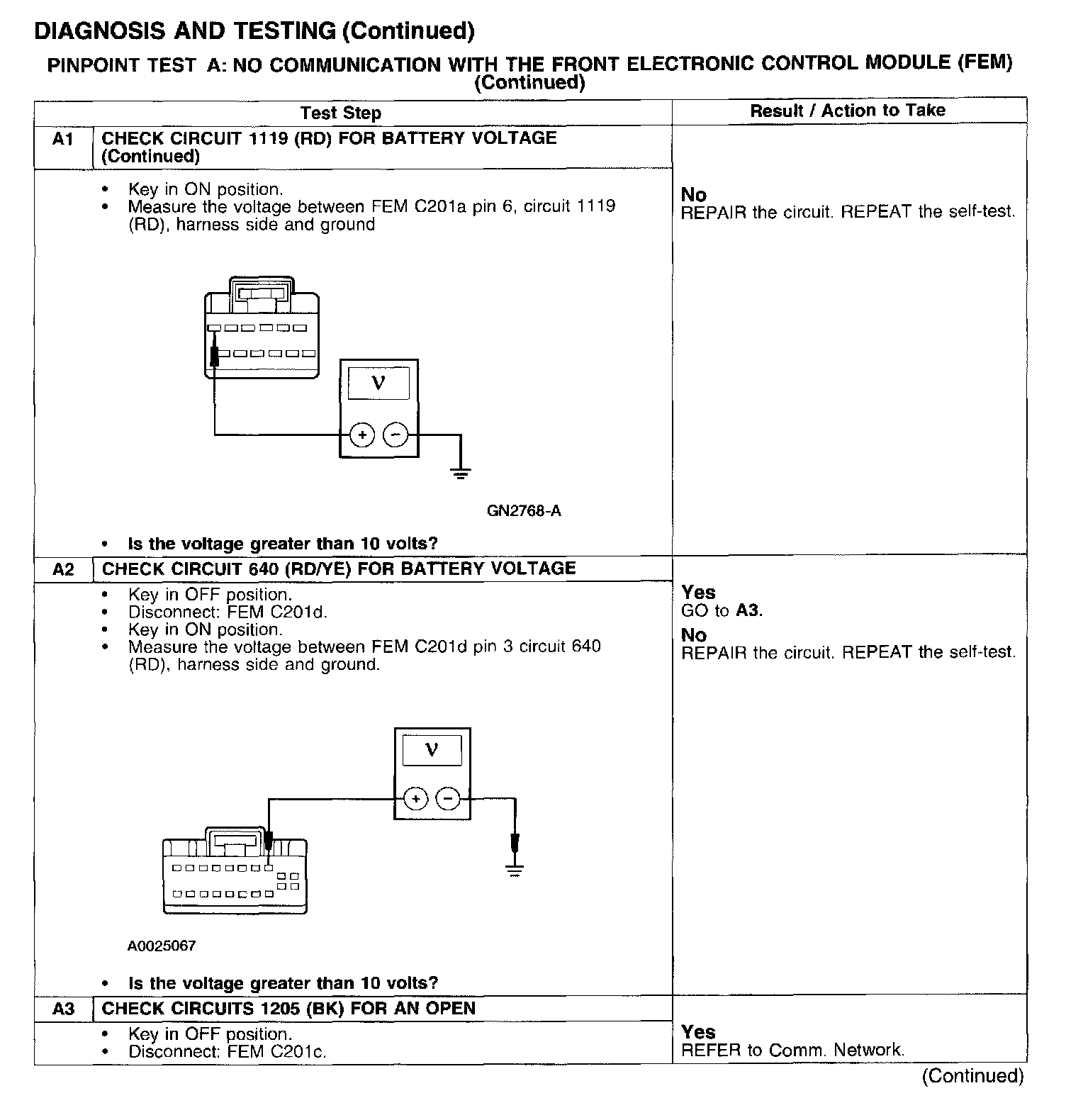

Test A1-A3:






Test A3 Continued:
