Cruise Control Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

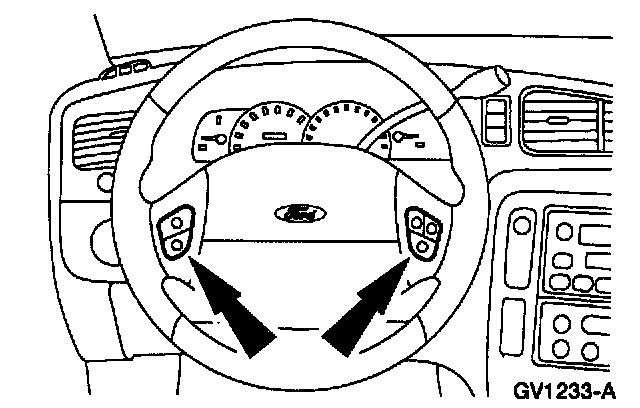

2. Release the speed control actuator switch from the steering wheel.

CAUTION: When separating the speed control actuator switch from the steering wheel, it is necessary to take precautions not to damage the steering wheel.

NOTE: Standard actuator switch shown, optional actuator switch similar.

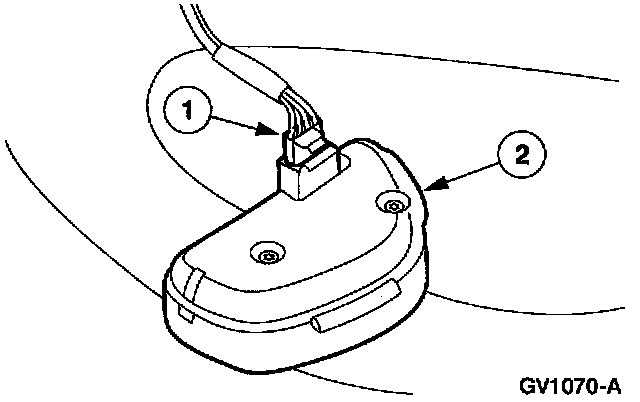

3. Remove the speed control actuator switch.
1 Disconnect the speed control actuator switch electrical connector.
2 Remove the speed control actuator switch.

INSTALLATION
1. To install, reverse the removal procedure.
