Test D

PINPOINT TEST D: THE RIGHT POWER SLIDING DOOR MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

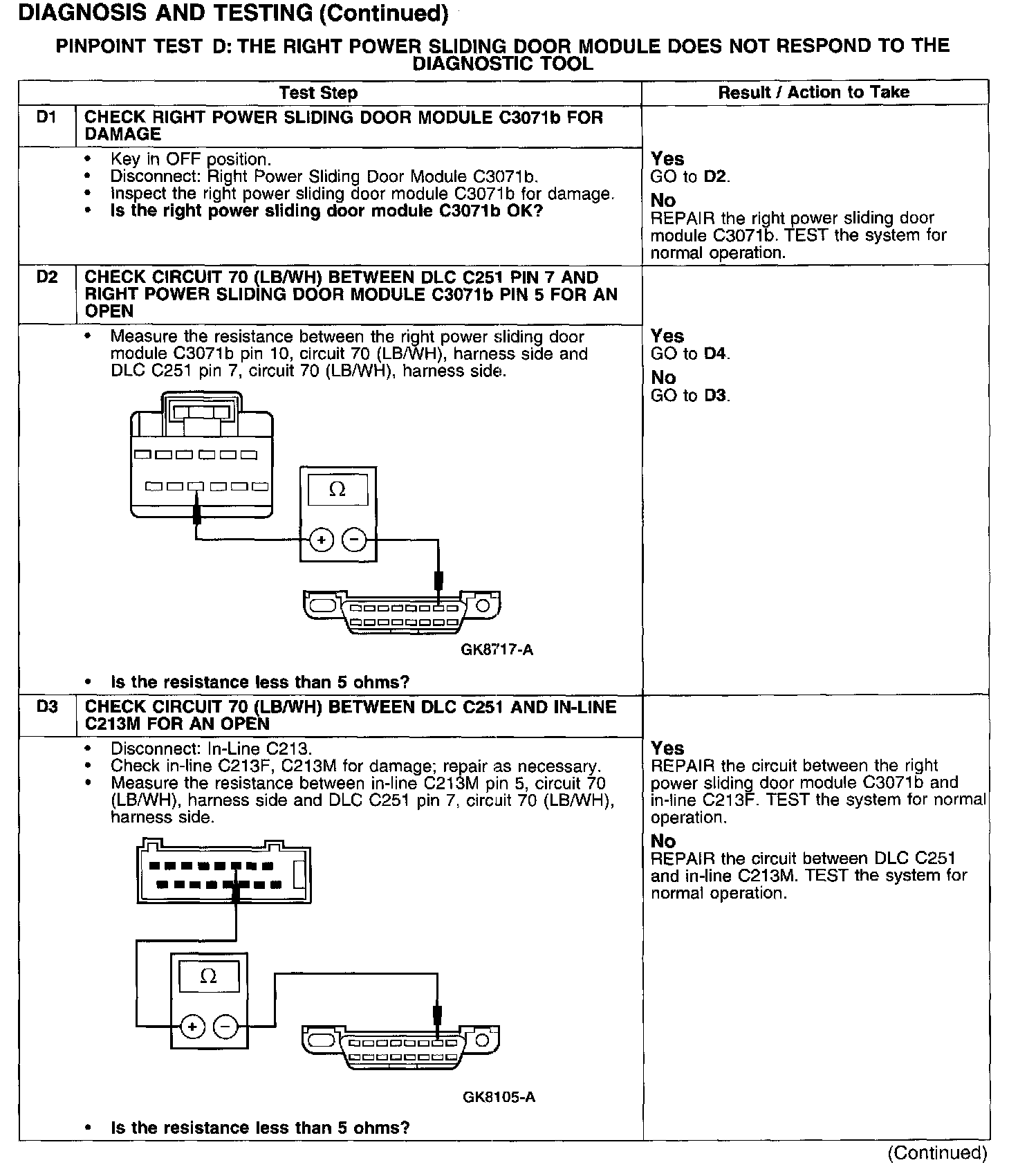

Test D1-D3:

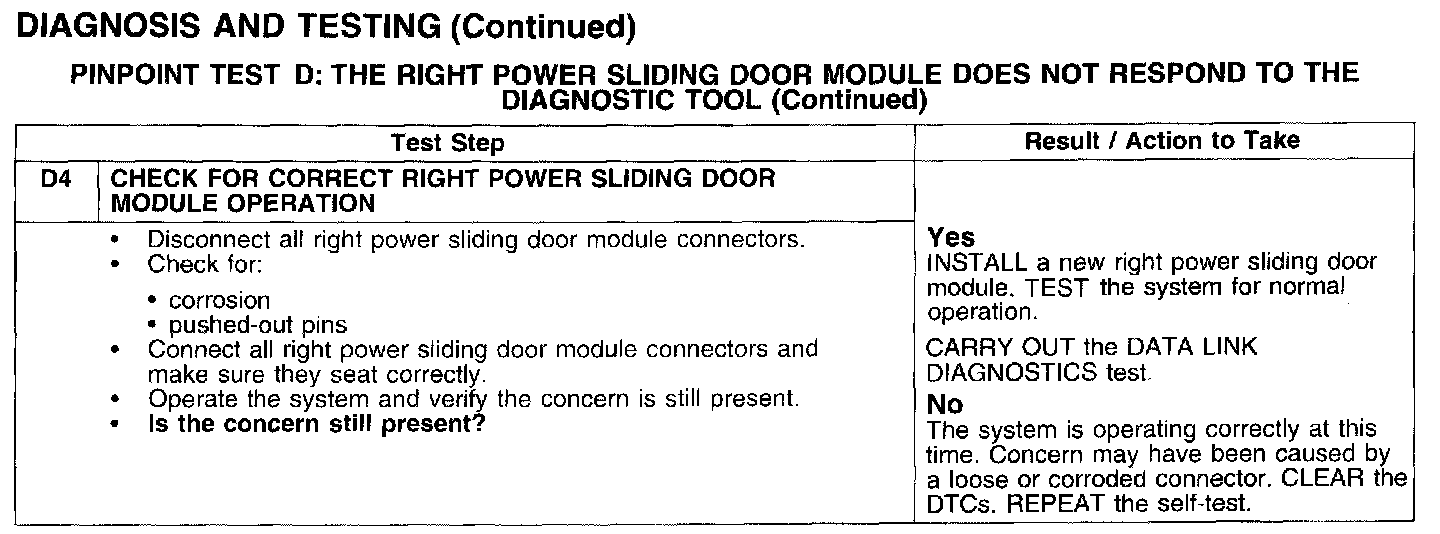

Test D4:
