Test E

PINPOINT TEST E: THE REMOTE KEYLESS ENTRY (RKE) MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

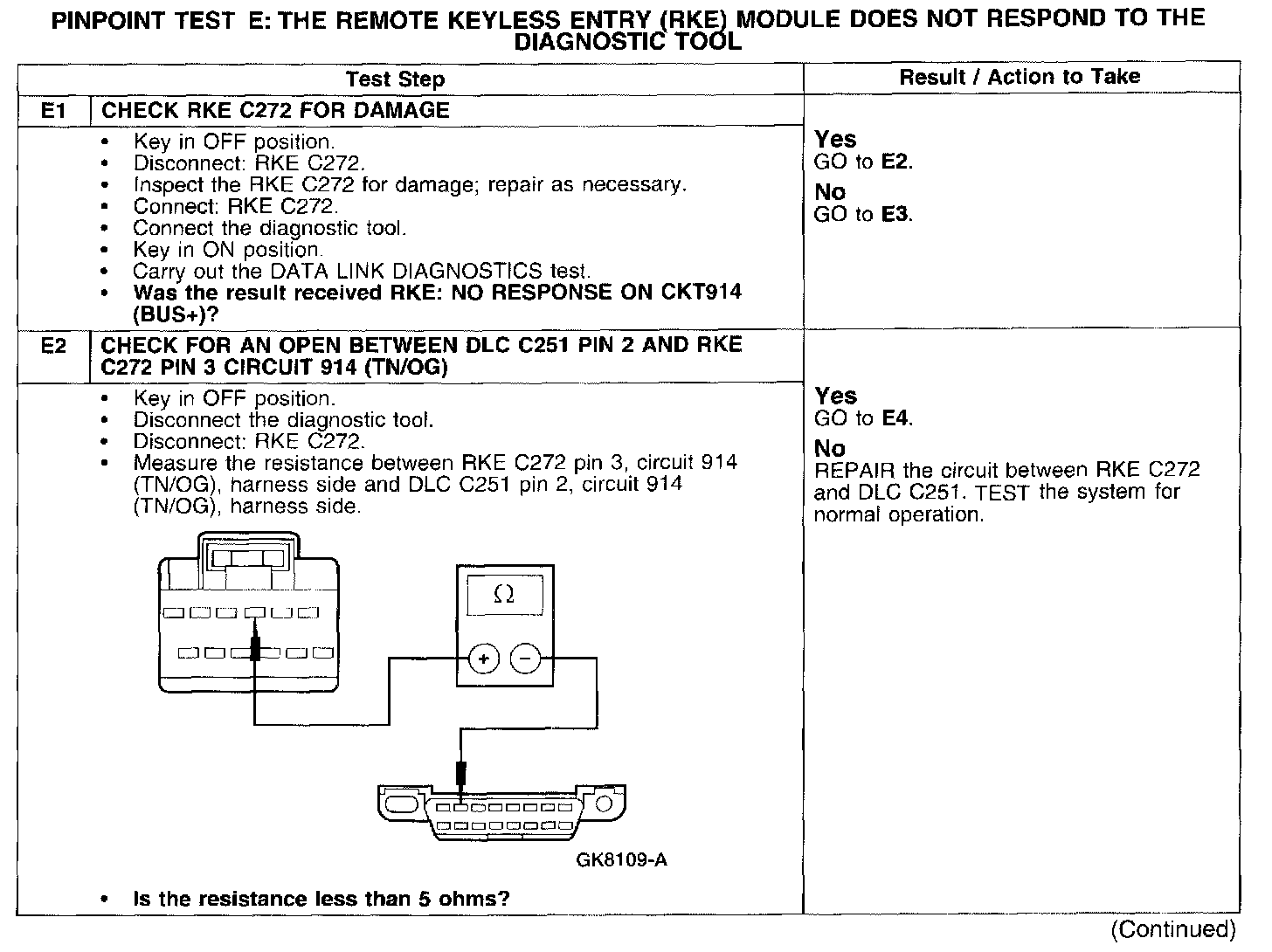

Test E1-E2:

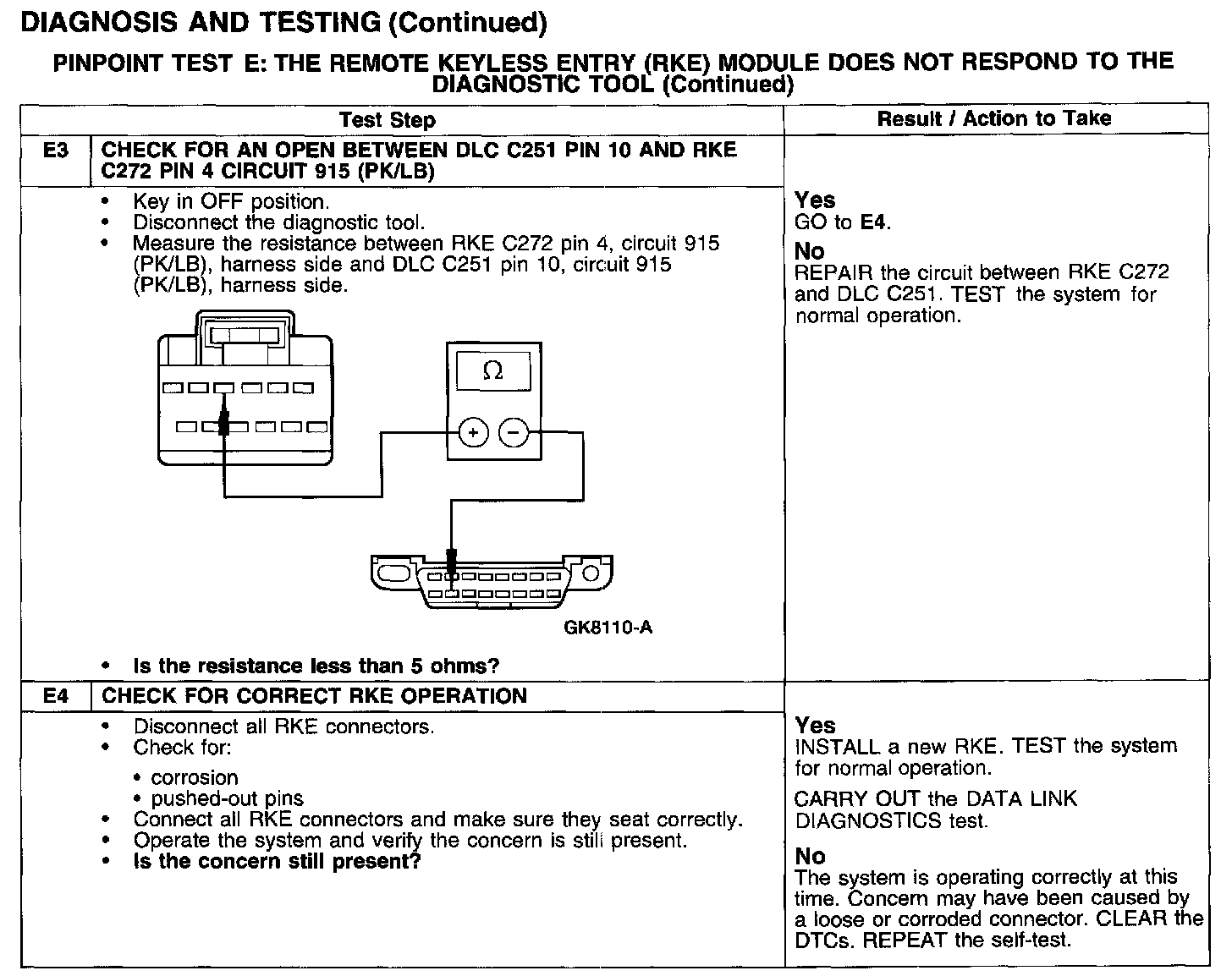

Test E3-E4:
