PINPOINT TEST G: THE REAR ELECTRONIC MODULE (REM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

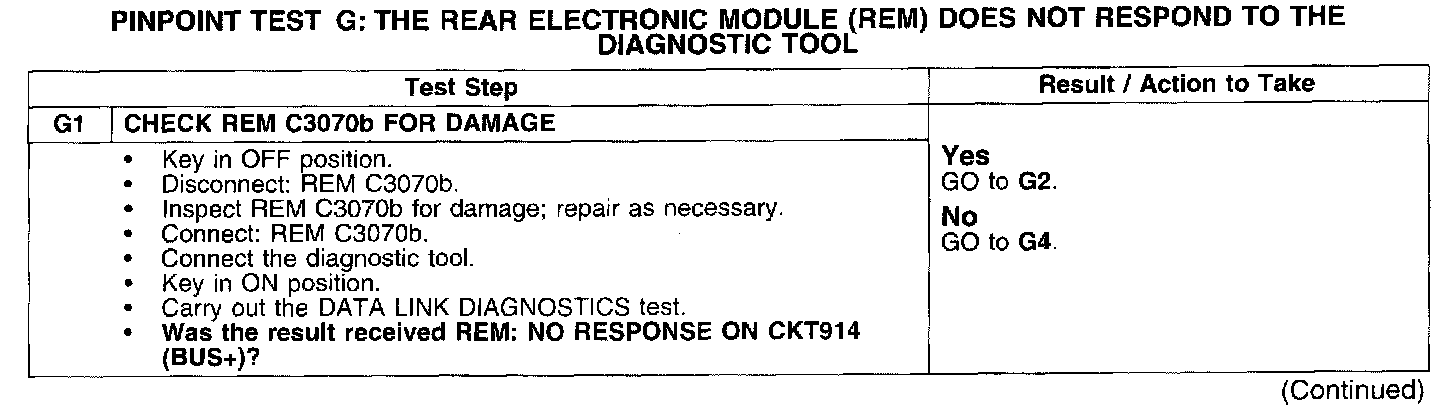

Test G1:

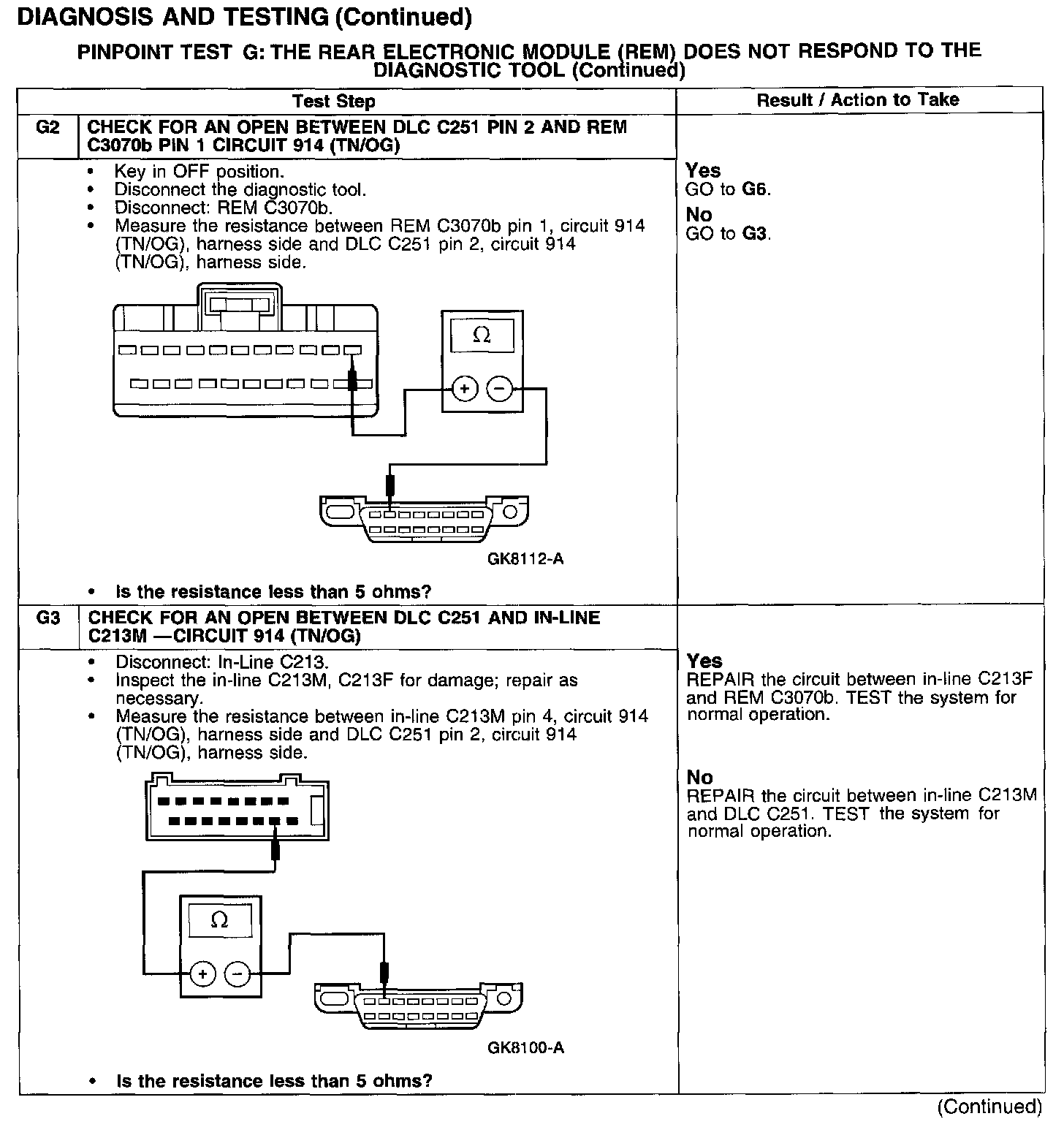

Test G2-G3:

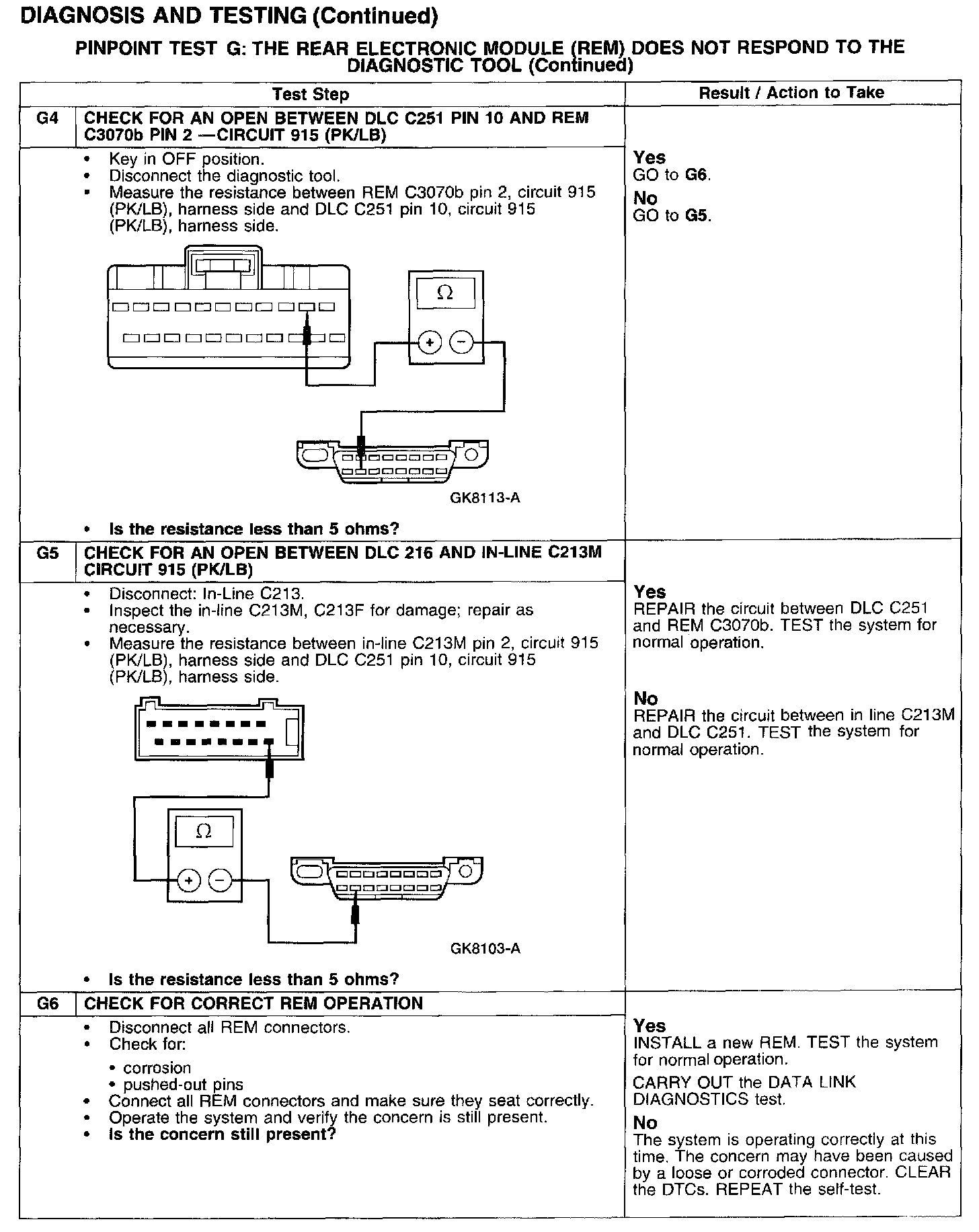

Test G4-G6:
