PINPOINT TEST H: THE NEXT GENERATION SPEED CONTROL (NGSC) SERVO DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

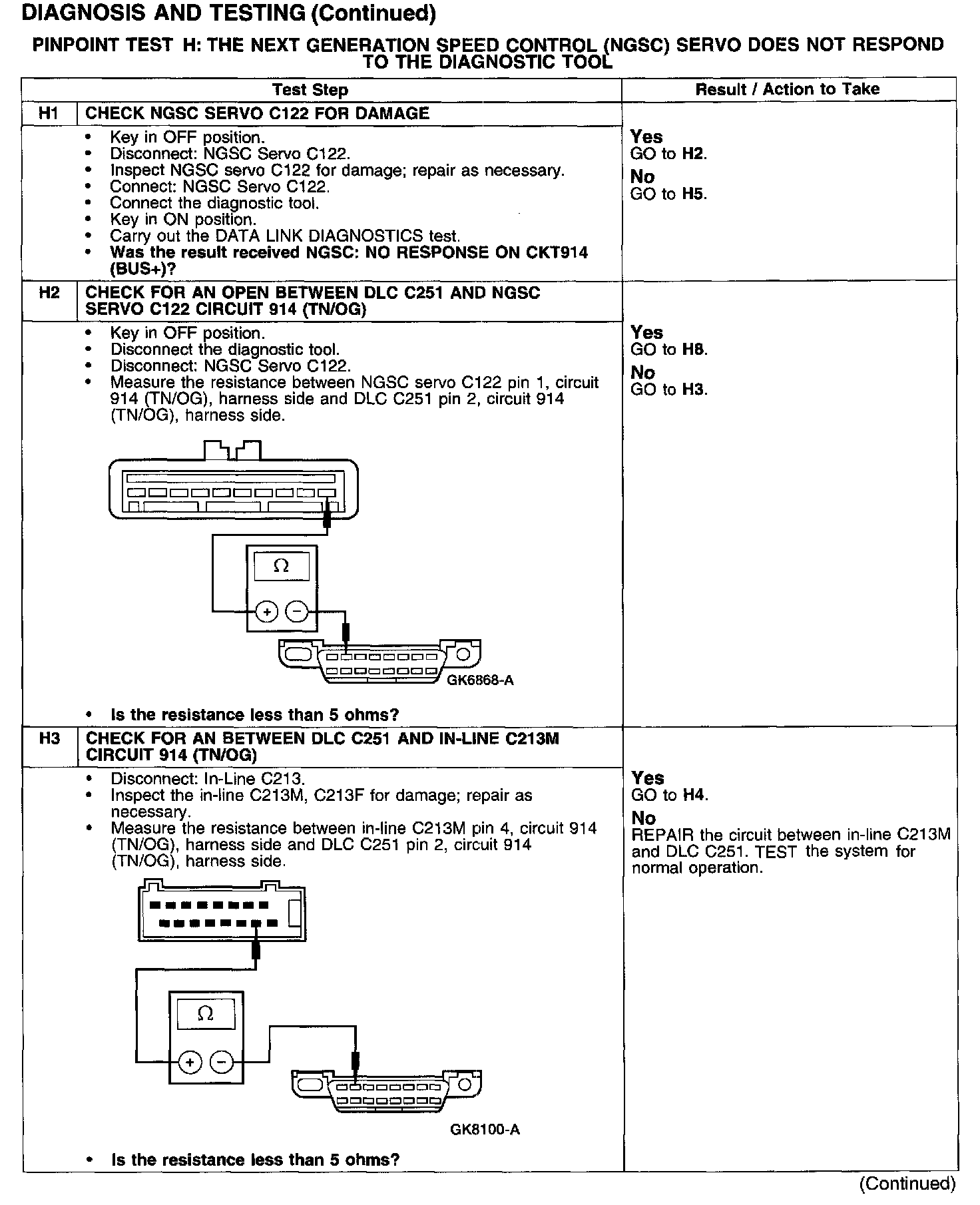

Test H1-H3:

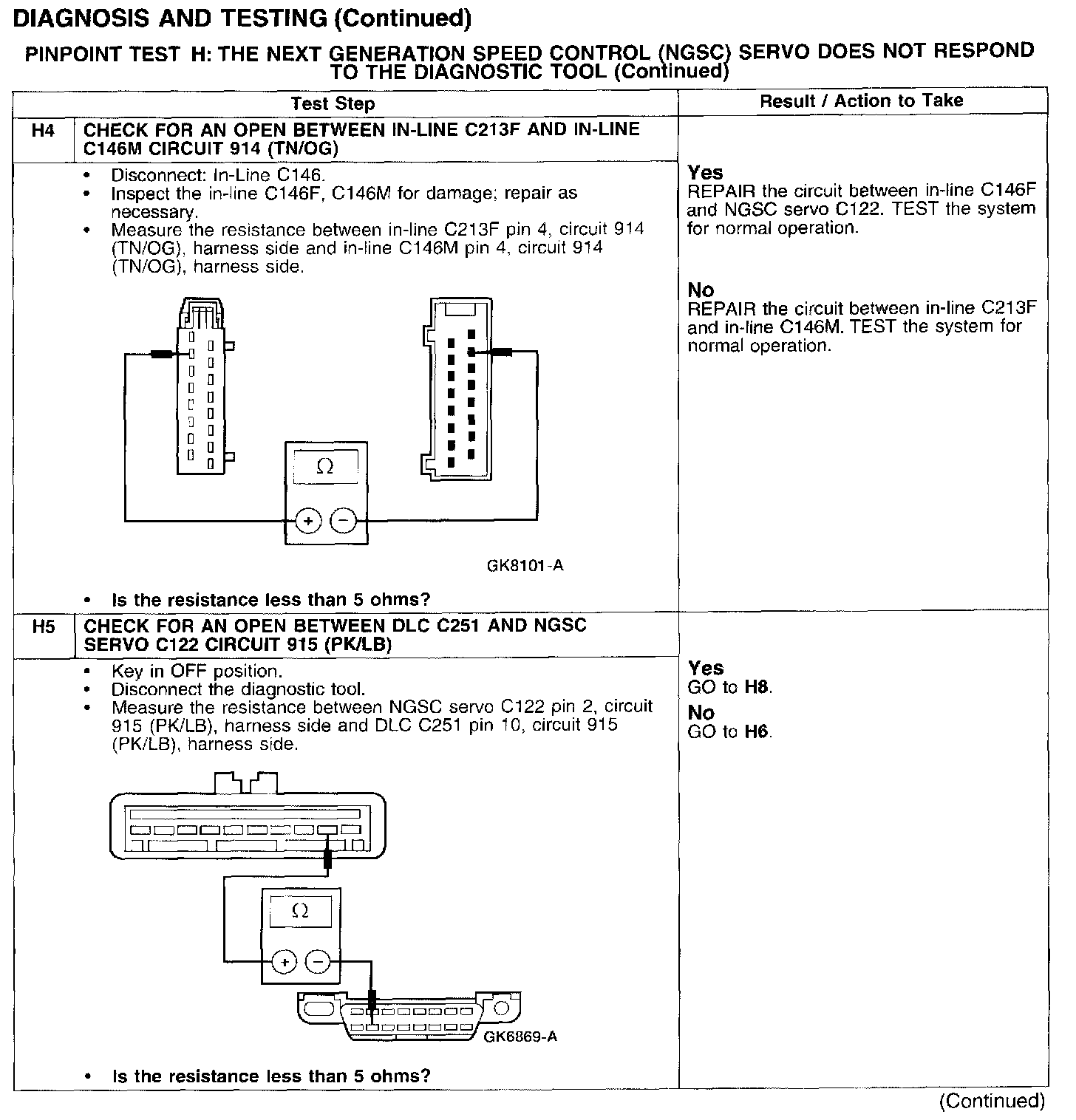

Test H4-H5:

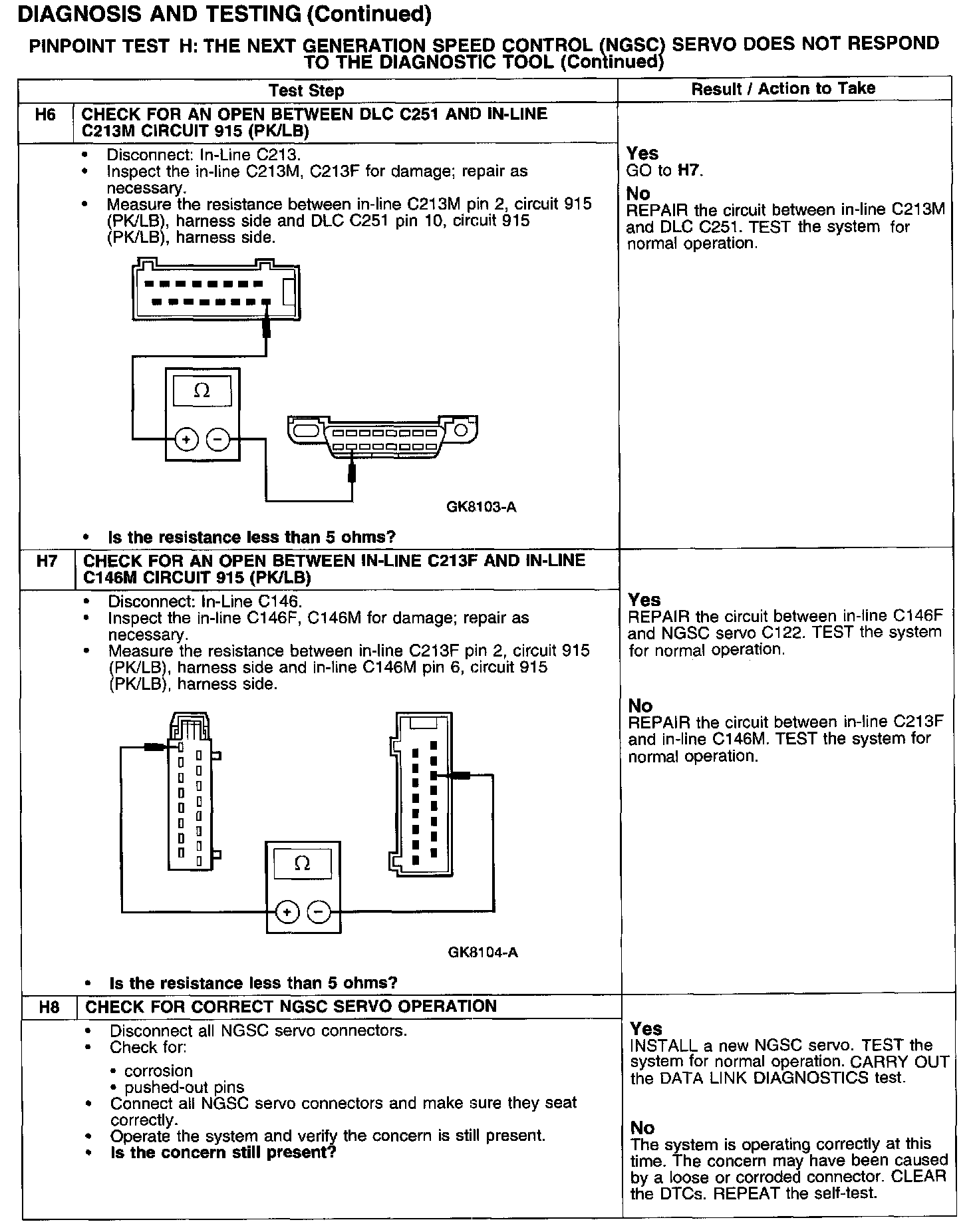

Test H6-H8:
