PINPOINT TEST J: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

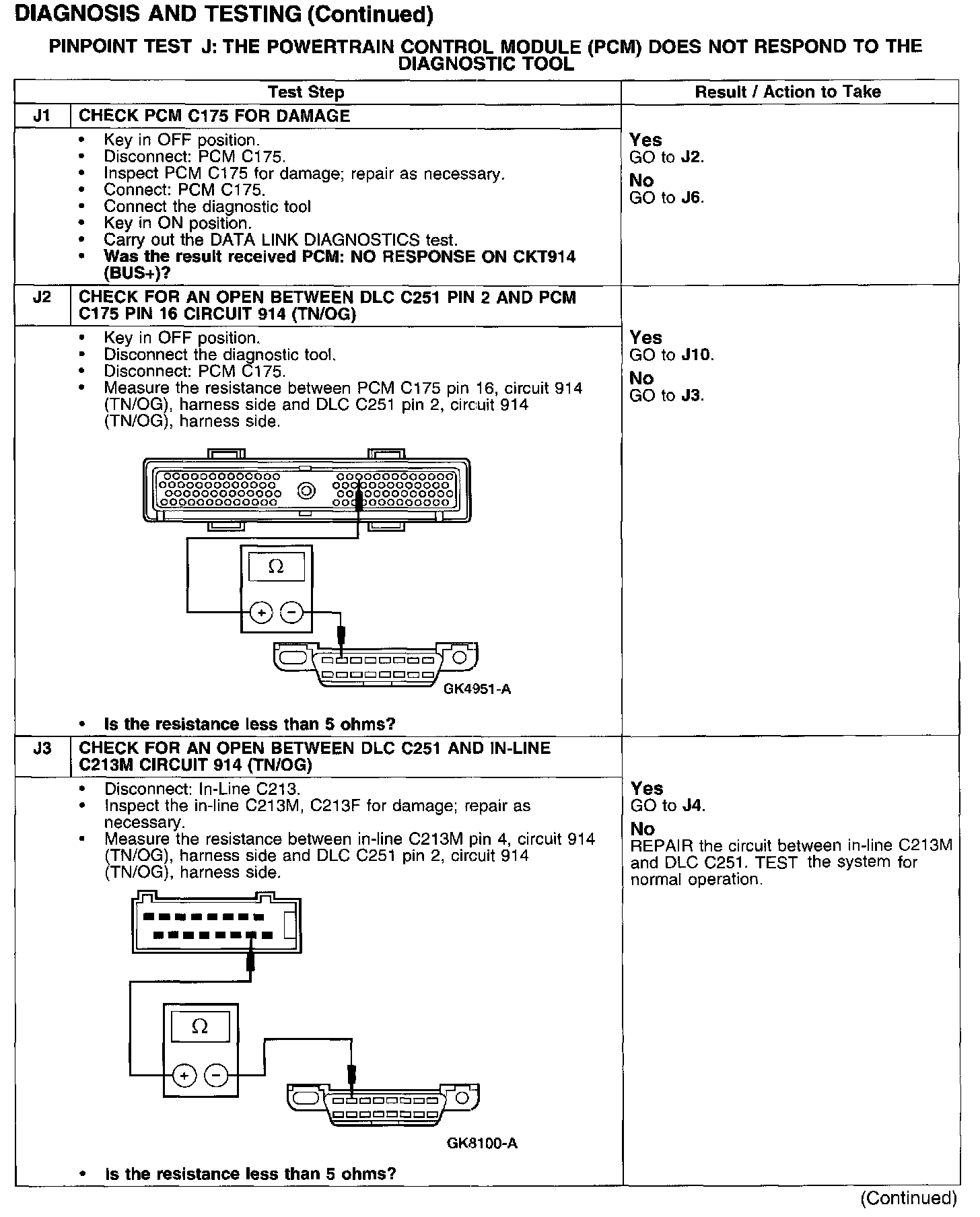

Test J1-J3:

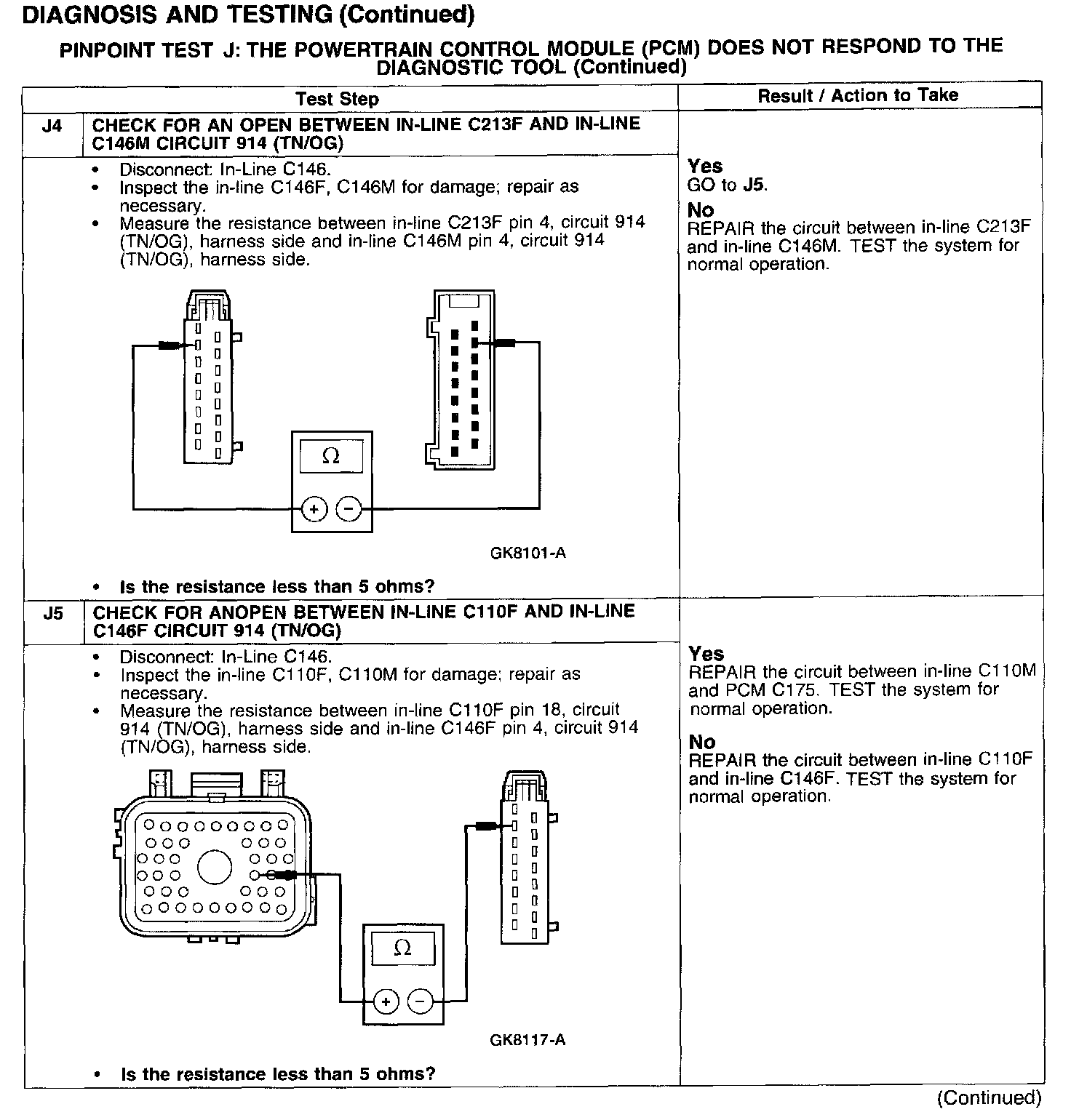

Test J4-J5:

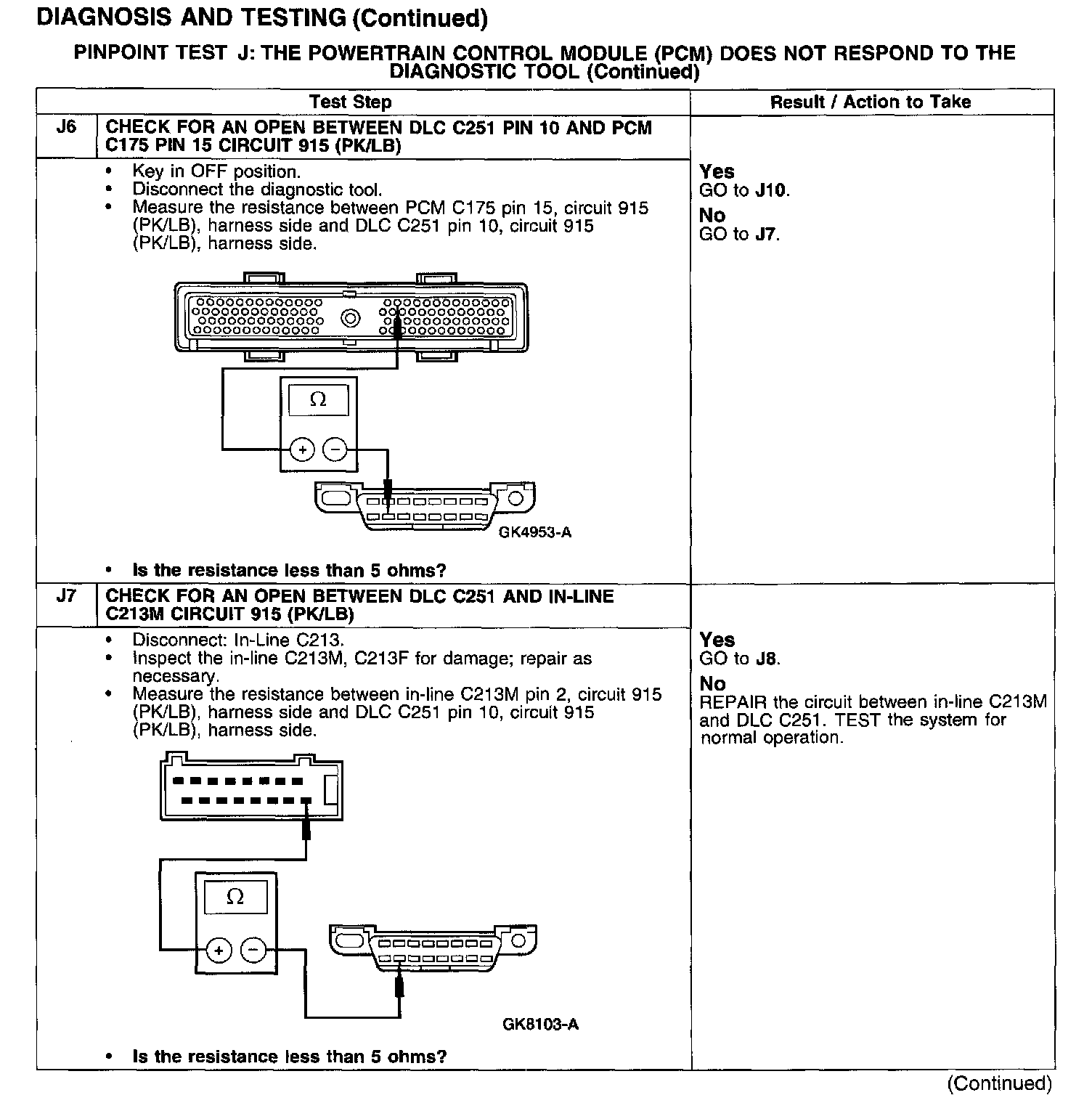

Test J6-J7:

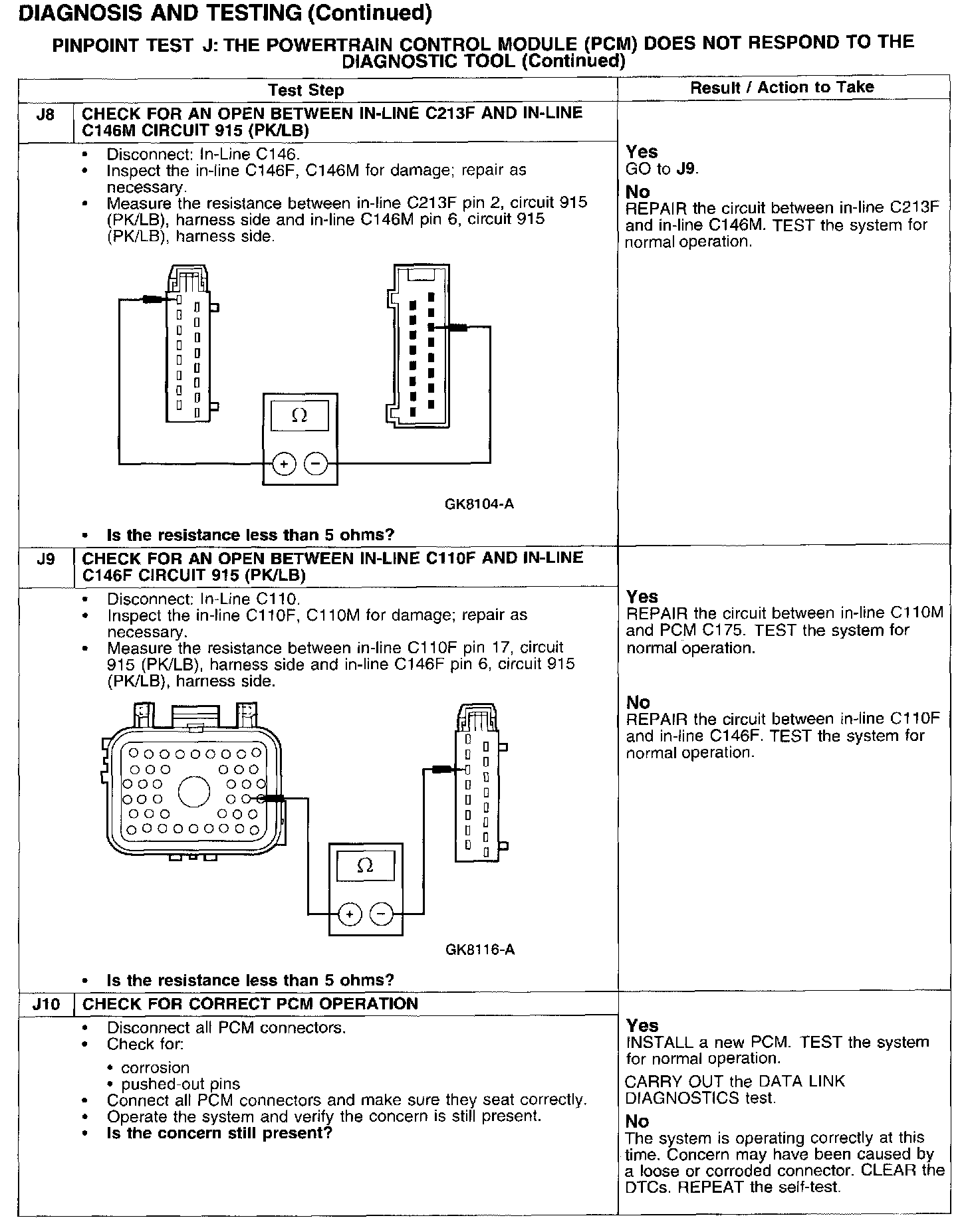

Test J8-J10:
