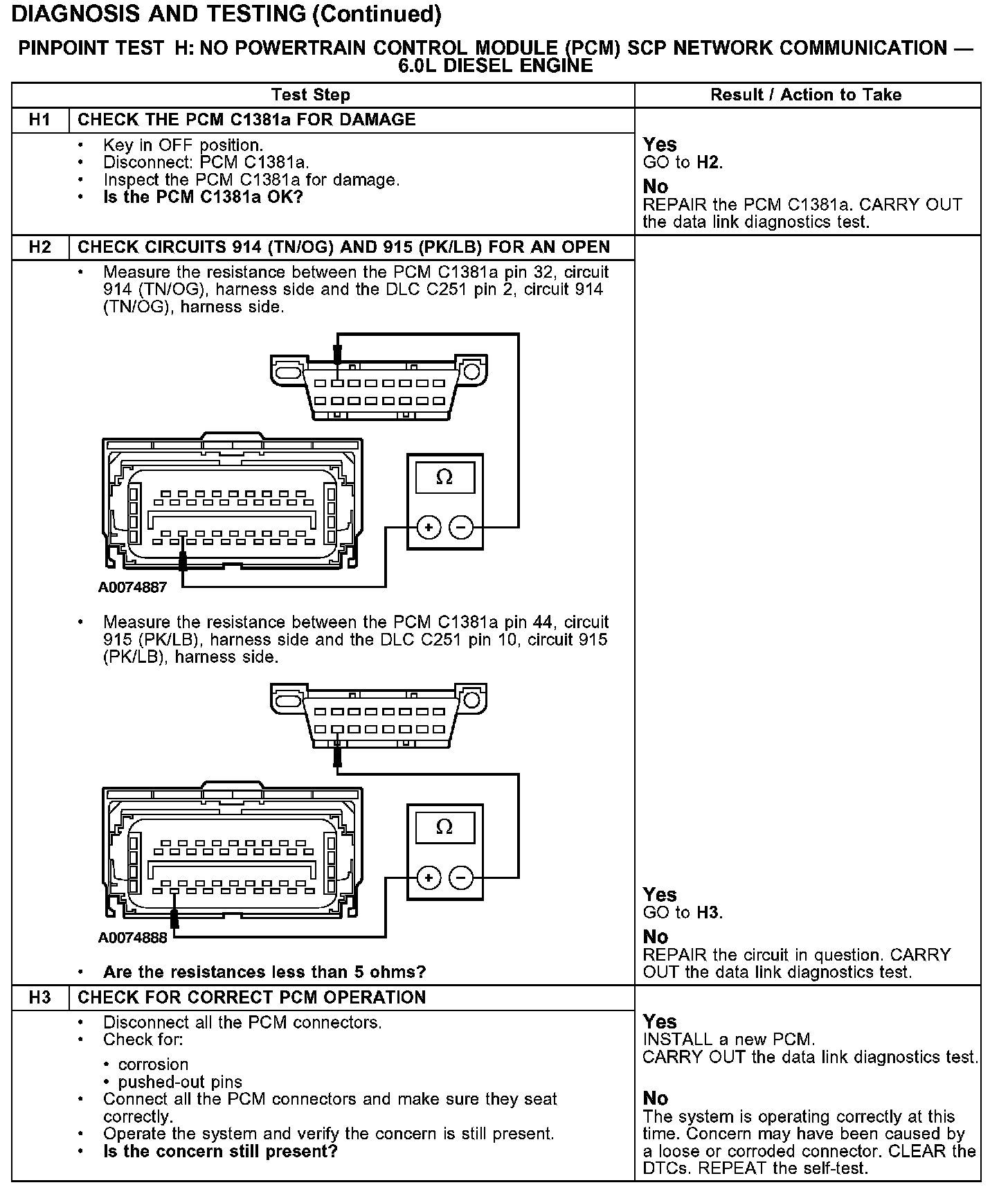

PINPOINT TEST H: NO POWERTRAIN CONTROL MODULE (PCM) SCP NETWORK COMMUNICATION - 6.0L DIESEL ENGINE
Test H1-H3:
