PINPOINT TEST S: NO MODULE/NETWORK COMMUNICATION - NO RESPONSE FROM THE DIAGNOSTIC TOOL

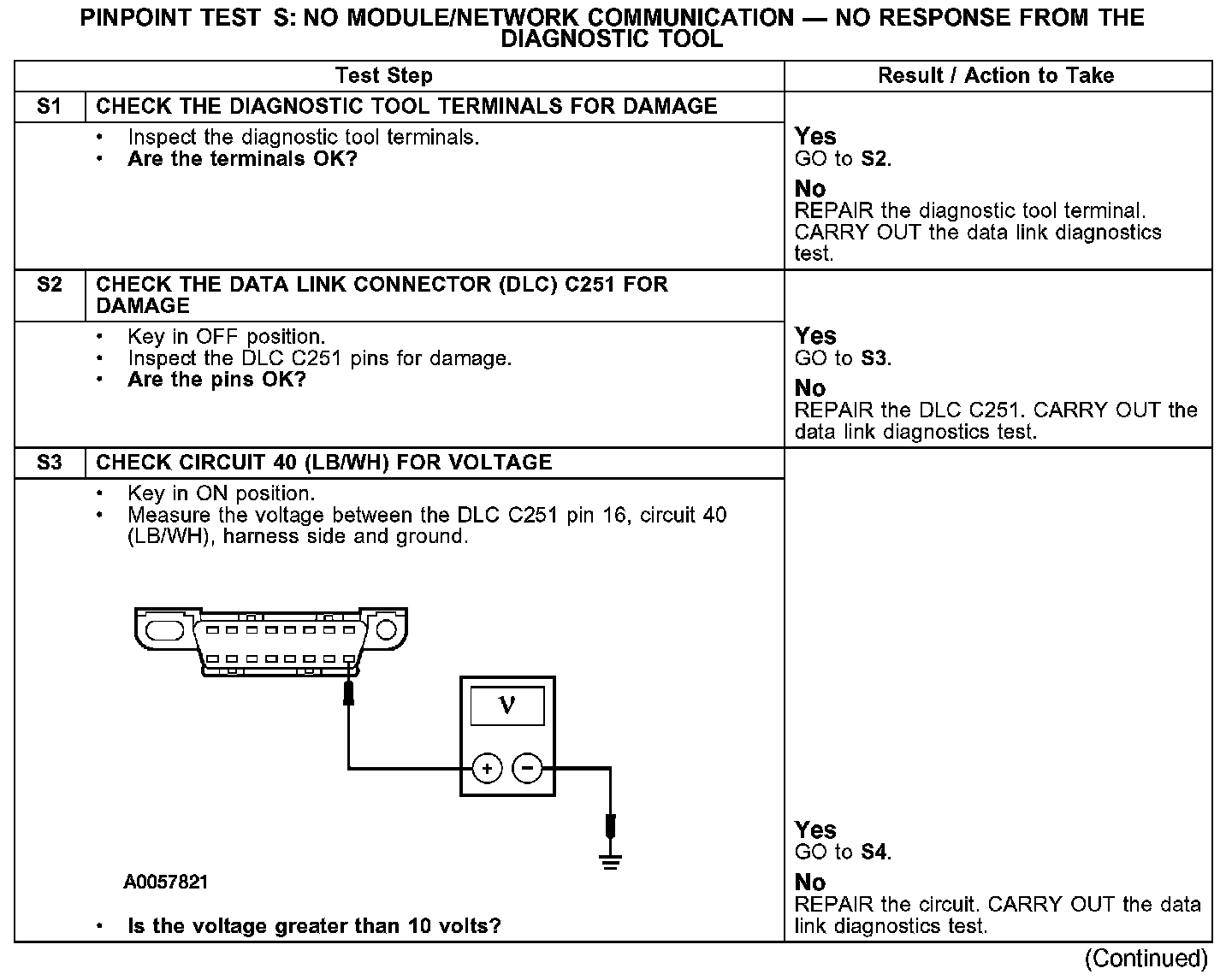

Test S1-S3:

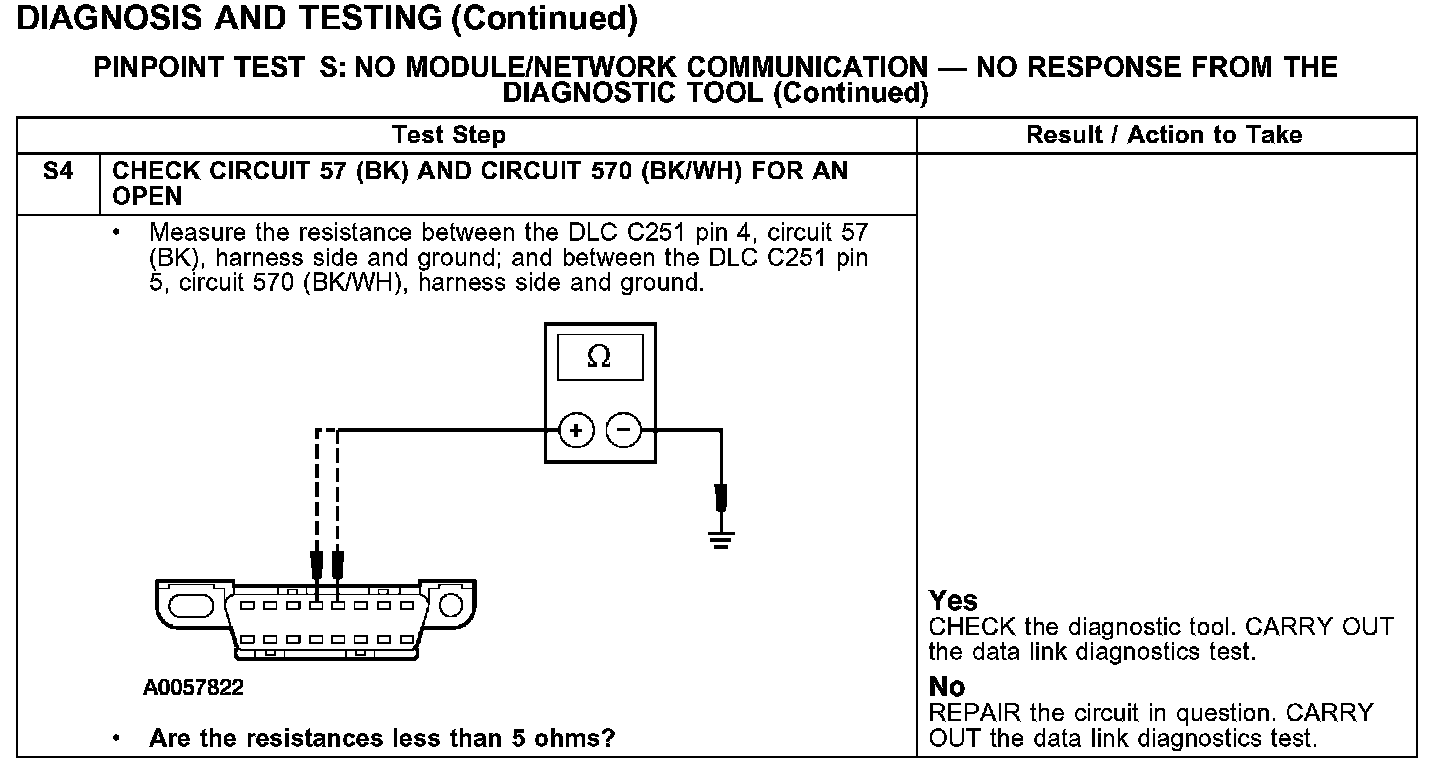

Test S4:
