Radiator
Radiator

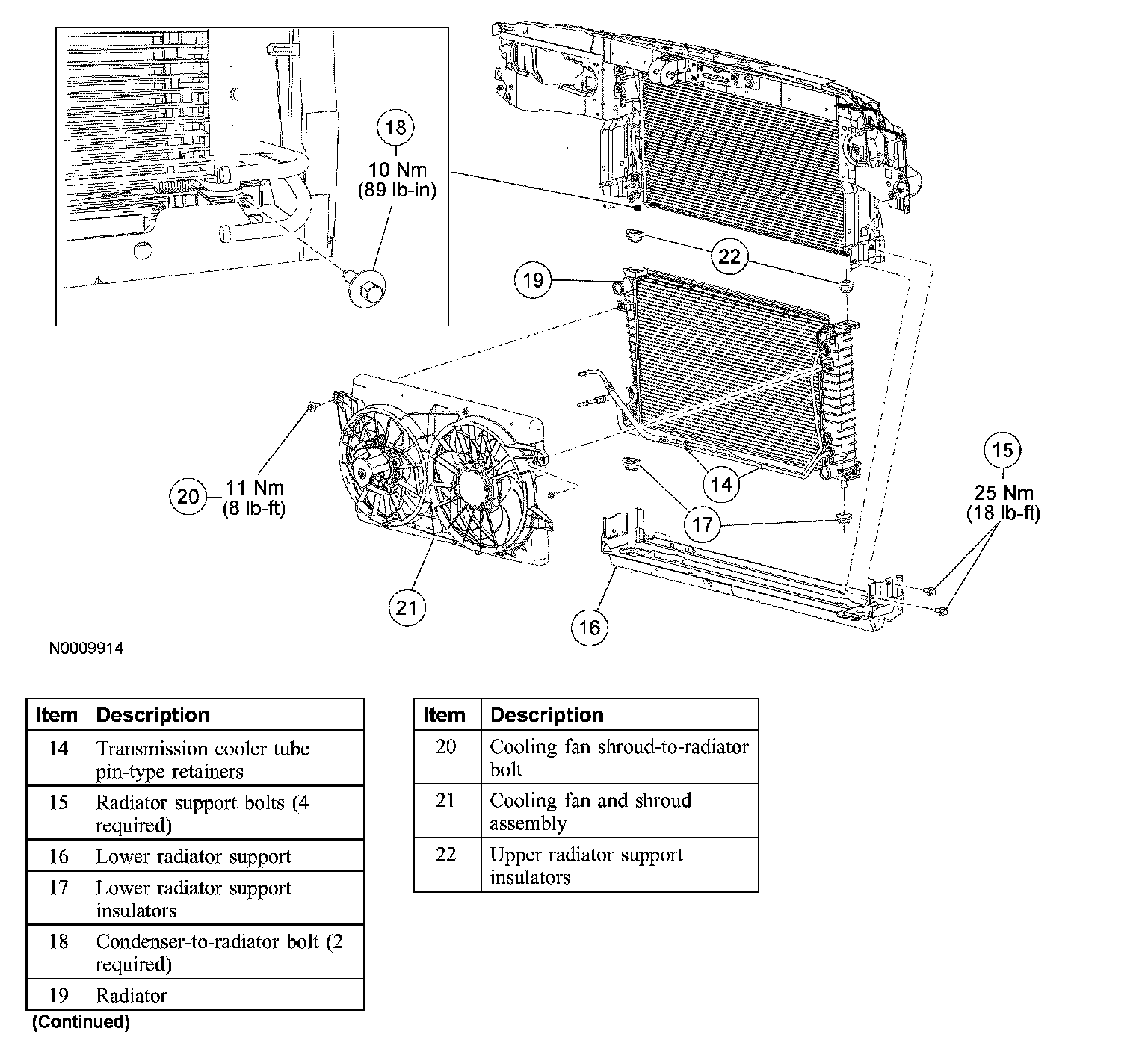

Radiator and Cooling Fan - Exploded View (Part 1):

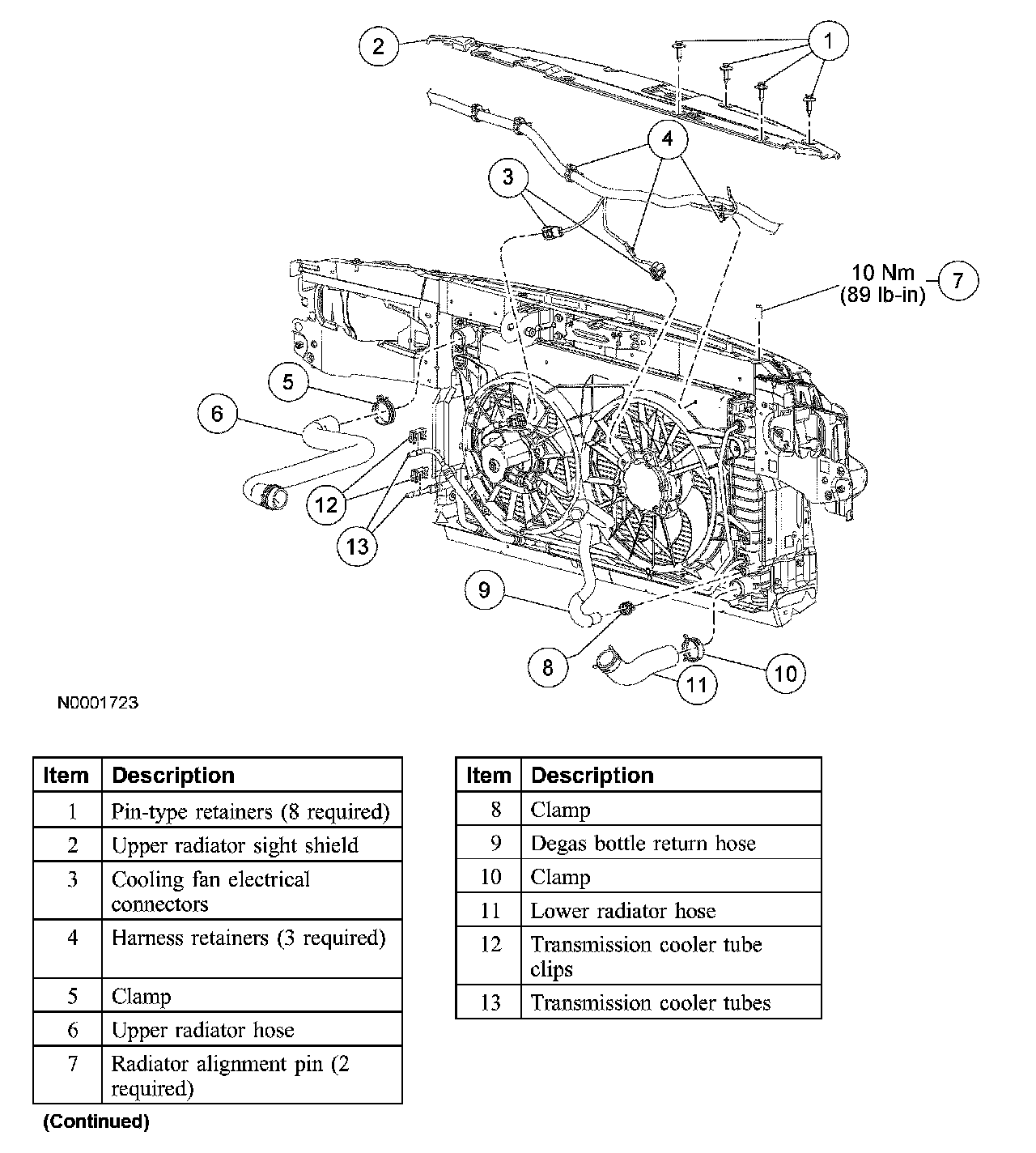

Radiator and Cooling Fan - Exploded View (Part 2):
