Ford Truck
>>
2007
>>
Ranger 2WD L4-2.3L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

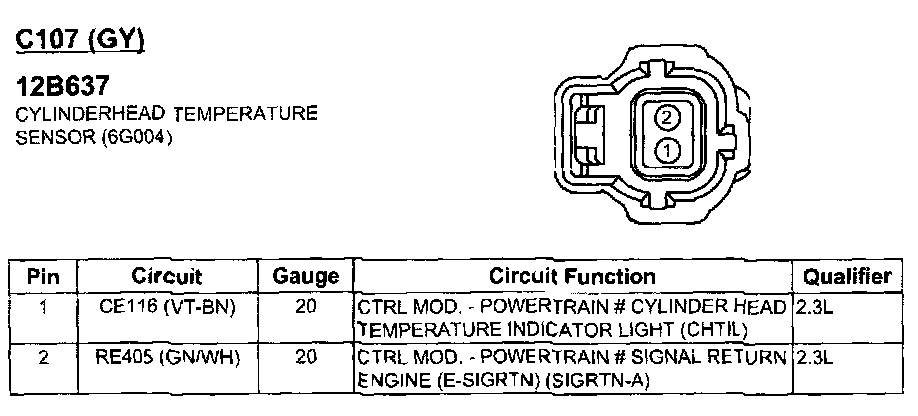

Engine Temperature Sensor
Engine Temperature Sensor
C107:
