Torqshift - Automatic Transaxle/Transmission

Internal Transmission Harness Connector/Component Locator:

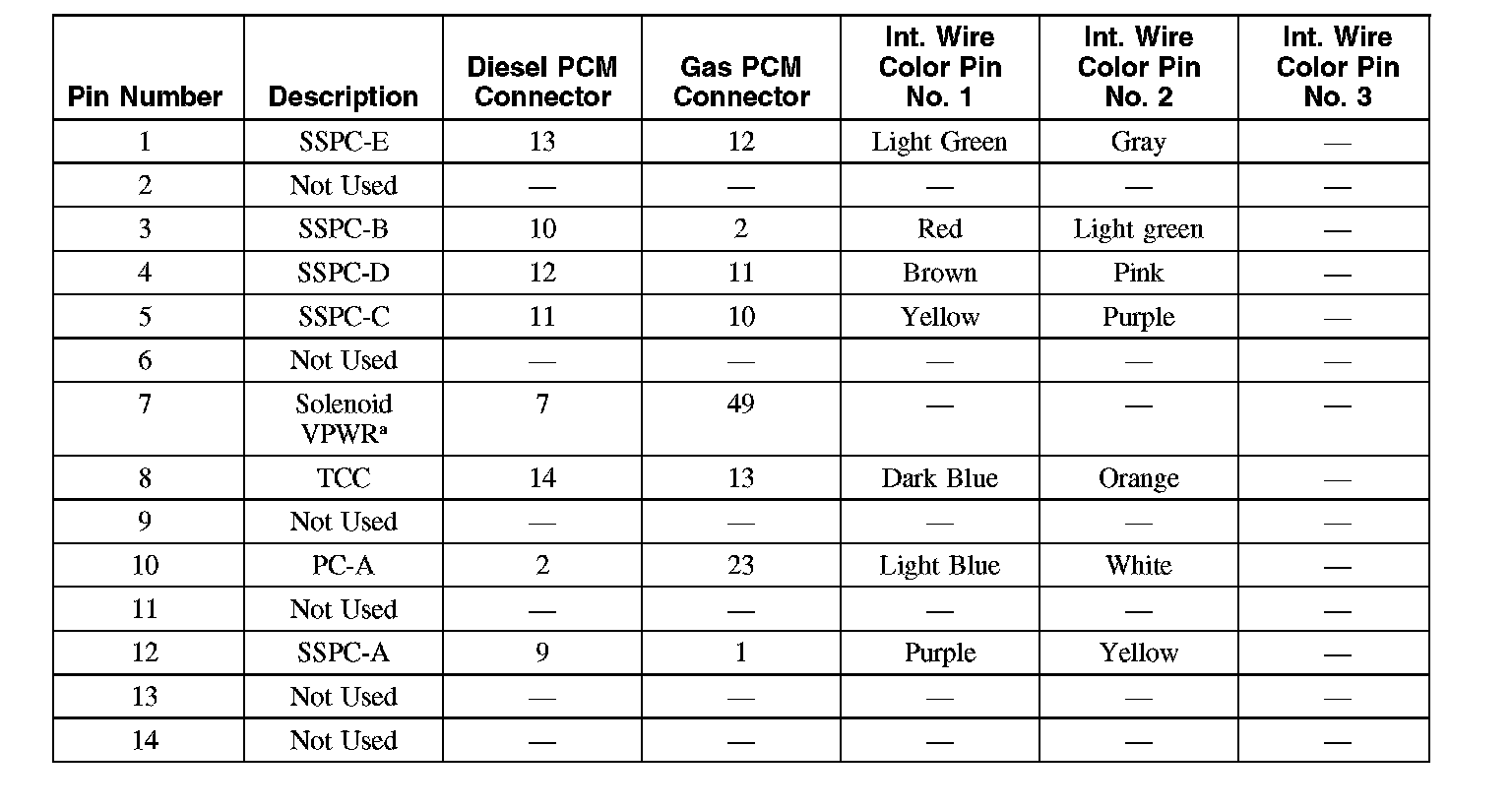

Transmission Vehicle Harness Connector - C1385 (Part 1):

Transmission Vehicle Harness Connector - C1385 (Part 2):

Transmission Vehicle Harness Connector - C1385 (Part 3):

Transmission Internal Harness Connector (Part 2):

Transmission Internal Harness Connector (Part 1):

Transmission Internal Harness Connector (Part 2):

Internal Harness TR Position Sensor Connector - Tan (3 Pin):

Internal Harness SSPC-x Solenoid Connector - Tan (2 Pin):

Output Shaft Speed (OSS) Sensor Harness Connector - C1107:

Intermediate Shaft Speed and Turbine Shaft Speed (TSS) Sensor Harness Connector - C1387 (Part 1):

Intermediate Shaft Speed and Turbine Shaft Speed (TSS) Sensor Harness Connector - C1387 (Part 2):

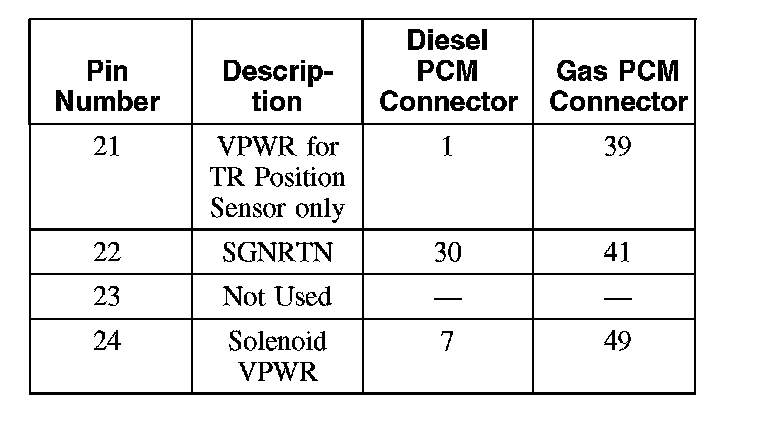

Transmission PCM Connector - C175T (Part 1):

Transmission PCM Connector - C175T (Part 2):
