Symptom Chart - Tire Wear
Wheels And Tires
Symptom Chart - Tire Wear
NOTE:
For suspension system and additional alignment diagnosis, refer to Suspension.
Testing and Inspection

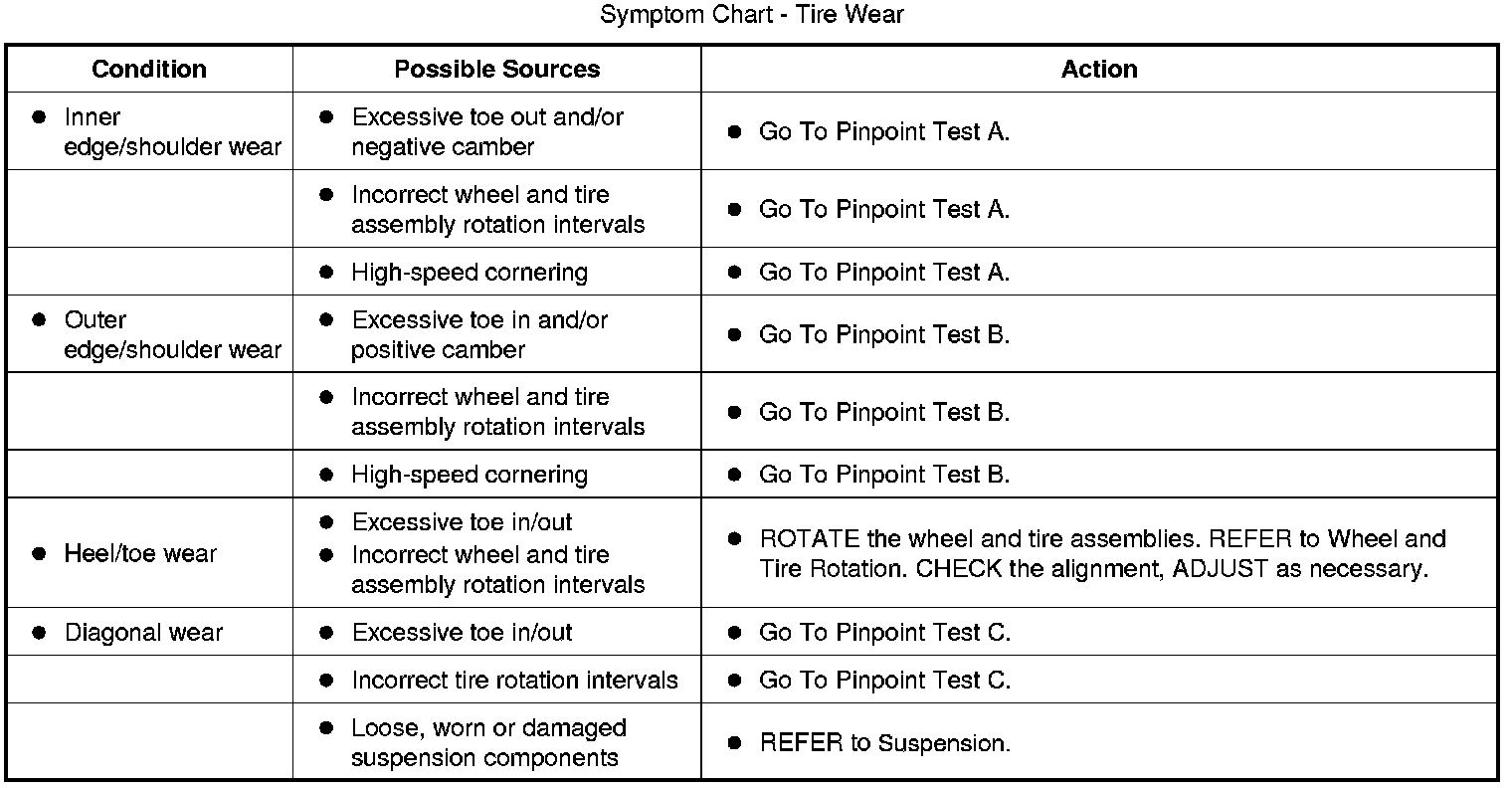

Symptom Chart - Tire Wear:
